• Model NO.：API
• Advantage：Corrosion Resistance
• Transport Package：Wooden Case Packing
• Specification：4 1,2~20
• Origin：Henan

Basic Info.

Model NO. API Advantage Corrosion Resistance Transport Package Wooden Case Packing Specification 4 1/2~20 Origin Henan

Product Description

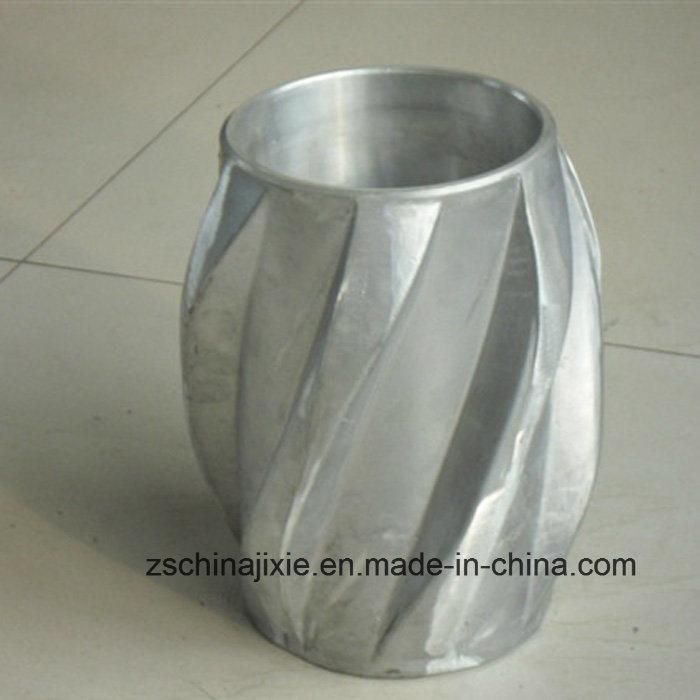

Spiraglider Centralizer Aluminium Rigid Casing Centralizer


Model	Max OD(mm)	ID(mm)	Length(mm)
4-1/2" x 6"	145	116.5	200
5" x 6"	145	129	200
5-1/2" x 8-1/2"	205-210	142	200/300
6-5/8" x 8-1/2"	205-210	171	200/300
7" x 8-1/2"	205-210	181	200/300
7" x 9-1/2"	225-235	181	200/300
7" x 9-5/8"	225-235	181	200/300
9-5/8" x 12-1/4"	300-305	248	200
13-3/8" x 17-1/2"	430-435	346	200

Rigid centralizers can be installed on the casing with stop collars or with integral set screws. Installations that allow casing rotation and reciprocation are preferred because of improved displacement efficiency. Most slip-on rigid centralizers must be installed between stop collars and are freely floating there between.

Application
Casing centralizers are to help center the casing in the wellbore, allowing even distribution of the cement around the casing during cementing operations.
Aluminum Rigid Centralizer should be used in areas where a good primary cementing job is required, including deviated and horizontal wells.

Features for Aluminum Solid Rigid Centralizers:
a. Light Weight.
b. High shock, impact Resistance.
c. Optimum tensile and yield strength.
d. Anti-corrosion.
