High Performance Centrifugal Mud Pump with Impeller

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Sand Pump
  • Flow Rate：120m3,H

Base Info

  • Model NO.：TRSB5*4-13J
  • Lift：35m
  • Impeller Diameter：13inch
  • Power：30kw
  • Electric System：50Hz
  • Ex Standard：Exdiibt4,Iecex,a-Tex
  • Weight：696kg
  • Transport Package：Wooden Case or Pallet
  • Specification：1696*568*805mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：50 Sets , Month

Description

ModelPowerFlowLift(m)EfficiencyNPSHElectricTRSB8×6-14J75KW320m3/h40m65%550HZTRSB8×6-12J355m3/h43m66%4.860HZTRSB8×6-13J55KW290m3/h33m64%5.550HZTRSB6×5-12J196m3/h48m61%360HZTRSB6×5-13J45KW180m3/h34m60%350HZTRSB5×4-14J149m3/h61m58%4.660HZTRSB6×5-12J37KW160m3/h30m60%350HZTRSB5×4-12J112m3/h45m58%4.660HZTRSB6×5-11J30KW120m3/h21m62%2.550HZTRSB5×4-12J112m3/h37m57%4.660HZTRSB5×4-12J22KW90m3/h30m56%4.550HZTRSB5×4-10J105m3/h30m57%4.260HZTRSB5x4-11J18.5KW90m3/h24m56%4.550HZTRSB4x3-12J55m3/h46m48%460HZTRSB4x3-13J15KW50m3/h40m48%4.550HZTRSB4x3-11J54m3/h35m47%460HZTRSB4x3-12J11KW45m3/h30m47%450HZTRSB3x2-12J28m3/h45m40%3.160HZTRSB3x2-12J7.5KW45m3/h24m46%450HZTRSB3x2-11J25m3/h35m41%3.160HZTRSB3x2-11J5.5KW20m3/h23m39%350HZ

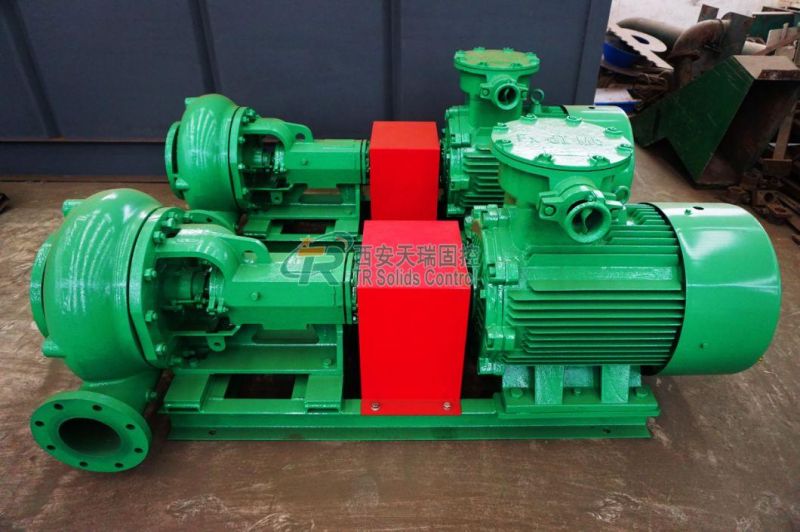

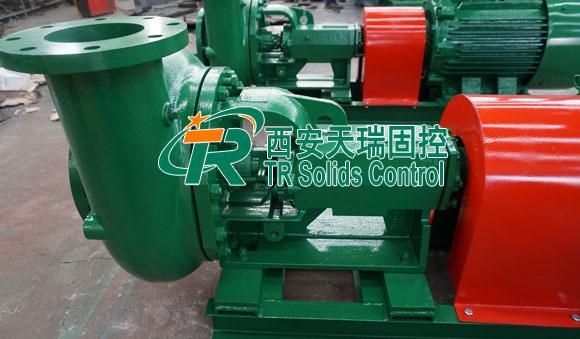

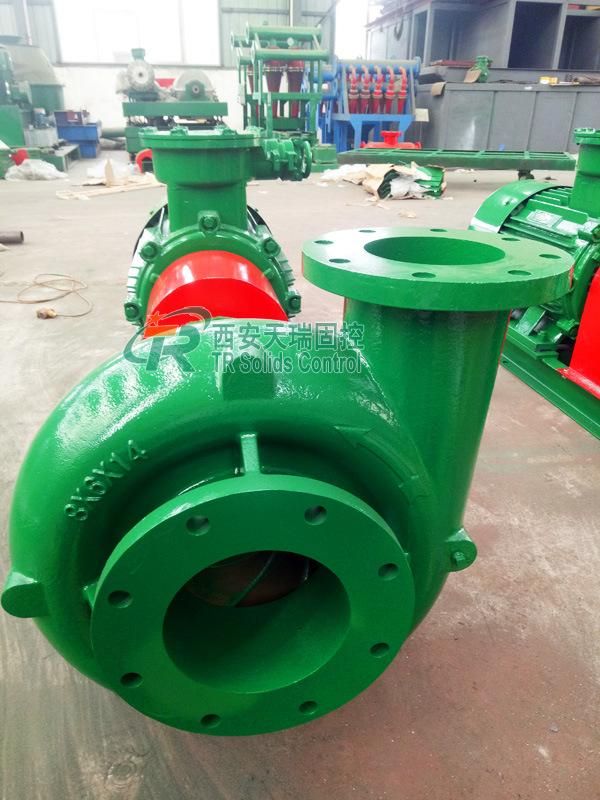

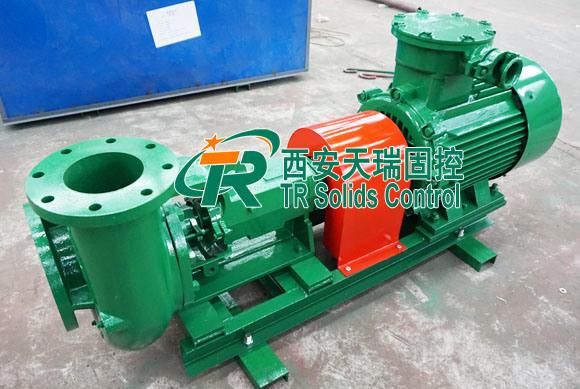

High Performance Centrifugal Mud Pump with Impeller
High Performance Centrifugal Mud Pump with ImpellerHigh Performance Centrifugal Mud Pump with ImpellerHigh Performance Centrifugal Mud Pump with ImpellerHigh Performance Centrifugal Mud Pump with Impeller

Application



TRSB series centrifugal pump is widely used in oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling etc.



Design Features of TRSB Series Centrifugal Pump

  1. Impeller with open vane structure
  2. The open vane structure impeller reduces the shaft load to minimum, more suitable for transferring high density and high viscosity mud.
  3. Higher efficiency and longer service
  4. The vane profile complying with the hydraulic principle,
  5. increase the output and efficiency. Utilizing wear-resistant materials for the key parts to prolong the service life.
  6. Axial adjustment structure
  7. Axial adjustment structure makes it free to adjust the clearance between impeller and mechanical seal, ensuring equipment operation more reliable.
  8. More choice
  9. A variety of pump casing and impeller can meet different requirements of the customers.
  10. The same power frame reduces the spare parts.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
