Single-Hydraulic Set-up, Recyclable Packer

JIANGSU YOUYAO PETROLEUM MACHINERY CO., LTD.
  • Manufacturing Process：Forging
  • Surface Treatment：Polishing
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Transport Package：Polywood
  • Trademark：YOUYAO

Base Info

  • Model NO.：Y341-114B-00
  • Origin：in China
  • HS Code：3926901000
  • Production Capacity：1000PCS Per Week

Description

Basic Info.

Model NO. Y341-114B-00 Origin in China HS Code 3926901000 Production Capacity 1000PCS Per Week

Product Description

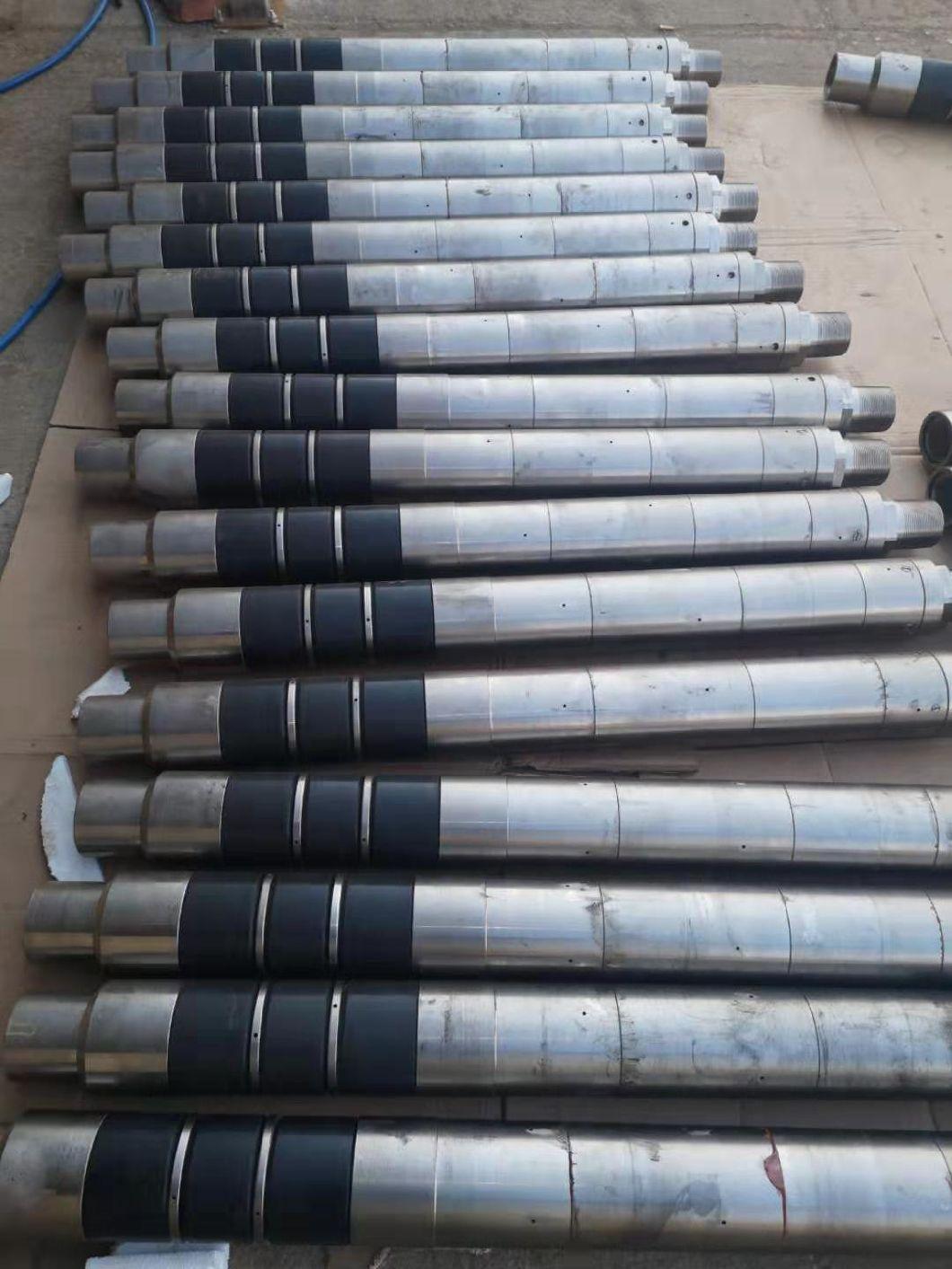

 RH packer is a single-hydraulic set-up, recyclable packer that blocks the tubing below the packer when it is set, and presses it inside the tube. When the packer is recovered, it is only necessary to simply lift the tubing string to cut off the solution. Seal the pin.
Features: 1. No need to rotate during operation 2 Directly lift the pipe column to unpack the packer 3 Three multi-hardness rubber cylinders, the end rubber barrel with anti-extrusion retaining ring, can seal when the casing is irregular and low pressure difference 4 The internal bypass hole reduces the suction effect during the lifting operation. 5 The selective setting mechanism can be used for pressure testing and separately setting up multiple packers. 6 The piston in the middle of the direction slip allows the packer mandrel to be completely seated without movement.
Single-Hydraulic Set-up, Recyclable Packer
