Oil Downhole Tools Slickline Wireline Gauge Cutter Paraffin Cutter
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：Boban
- for Wire Size：0.108", 0.125"
- Connection：Un,Qls,Hdqrj
- Size：1.5"~5"
- Transport Package：Wooden Case
- Specification：1.25"~2.5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：30 PCS Per Month
Description
Basic Info.
Model NO. Boban for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Size 1.5"~5" Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description

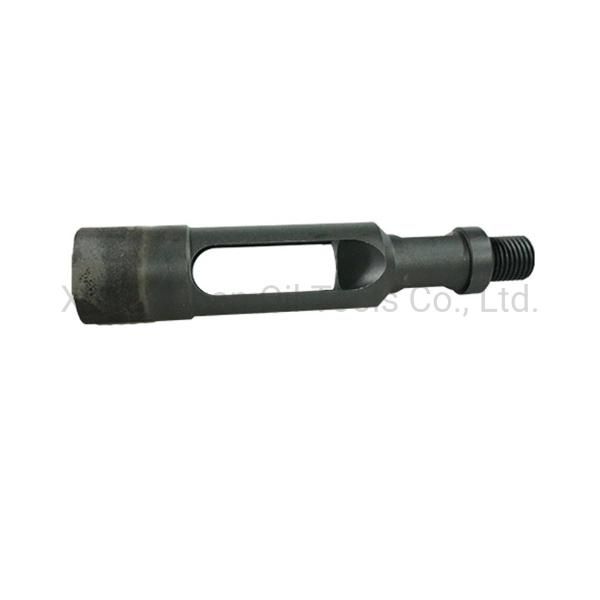

Wireline gauge cutter is a wireline tool designed to gauge and scrape clean the wall of the tubing. The gauge cutter O.D. should be selected very close to the I.D. of the tubing in which it is run. It should be used prior to running or pulling a subsurface control. This assures the operator that the tubing is clear down to the point to which a sub surface device has to be run.BOBAN series slickline tools are available for UN, QLS and HDQRJ connection.
Technical Parameters
| OD. | Fishing Neck | Connection |
| 1.25"-1.5" | 1.187" | 15/16-10UN |
| 1.5"-2" | 1.375" | 15/16-10UN |
| 2"-2.5" | 1.375" | 15/16-10UN |
| 2.5"-3" | 1.75" | 1-1/16-10UN |
| 3"-4" | 1.75" | 1-1/16-10UN |
| 4"-5" | 2.313" | 1-9/16-10UN |
Note. Other sizes are available upon request.
