Oilfield Downhole Fishing Tools Slickline Wireline Lead Impression Block
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service:24,7
- Warranty:12 Months
- Manufacturing Process:CNC Milling
- Surface Treatment:Phosphating
- Operation Pressure:N,a
- Material:Cast Steel
Base Info
- Model NO.:Boban
- for Wire Size:0.108", 0.125"
- Connection:Un,Qls,Hdqrj
- Length:22
- Transport Package:Wooden Case
- Specification:1"~6"
- Trademark:BOBAN & OEM
- Origin:China
- HS Code:8431431000
- Production Capacity:30 PCS Per Month
Description
Basic Info.
Model NO. Boban for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Length 22 Transport Package Wooden Case Specification 1"~6" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description

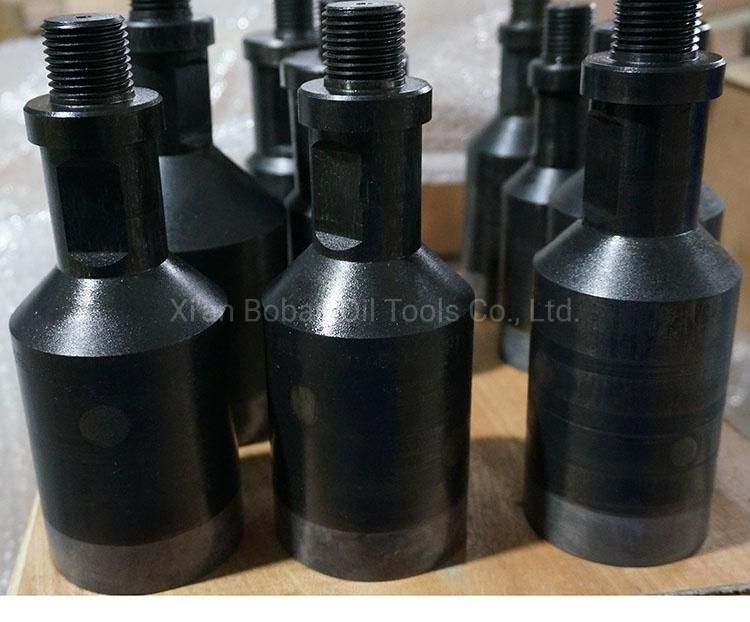

Oilfield Downhole Fishing Tools Slickline Wireline Lead Impression BlockI. IntroductionLIB or Lead Impression Block is wireline service tool used to take impressions of foreign objects in the tubing string. It is normally used during fishing operations, the impressions taken will help to define the shape and relative position of the obstruction so the proper fishing tool may be selected.
II. General Technical Parameters
Size | Fishing Neck | Connection |
1.0"~1.5" | 1.187" | 15/16-10UN |
1.5"~2.0" | 1.375" | 15/16-10UN |
2.0"~2.5" | 1.375" | 15/16-10UN |
2.5"~3.0" | 1.75" | 1-1/16-10UN |
3.0"~4.0" | 2.313" | 1-1/16-10UN |
4.0"~5.0" | 2.313" | 1-1/16-10UN |
5.0"~6.0" | 3.125" | 1-9/16-10UN |
Note. Other sizes are available upon request.
