HDD Drill Rod Drill Pipe for Horizontal Directional Drilling Rig
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Atmospheric Pressure
- Material：27crmo-F
Base Info
- Model NO.：Boban
- Usage：for Horizontal Directional Drilling Rig
- Transport Package：by Container or Bulk Vessel
- Specification：As per sizes
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：1000 PCS Per Month
Description
Overview
Product DescriptionWeight Torque Minimum radius of curvature Length of pipe to bend 90° Max bending abgle The maximum inclination inch mm inch mm inch mm ft mm kg Nm m m " % 2.375 60 S135 WLD60 0.279 7.1 2.68 68 9.844 3000 32 6.5 33 52 5.2 9 2.875 73 S135 NC23 0.315 8 3.17 80.5 9.844 3000 46 13 45 71 3.8 6 2.875 73 S135 NC26 0.355 9 3.45 88 9.844 3000 56 16 62 97 2.8 5 2.875 73 S135 NC26 0.355 9 3.45 88 14.765 4500 79 16 56 88 4.6 8 3.25 83 S135 WLD83 0.355 9 3.54 90 9.844 3000 61 18 79 115 2.4 4 3.25 83 S135 WLD83 0.355 9 3.54 90 14.765 4500 85 18 65 102 4.0 7 3.5 89 S135 NC31 0.394 10 3.63 92 14.765 4500 100 22 75 125 5.6 8

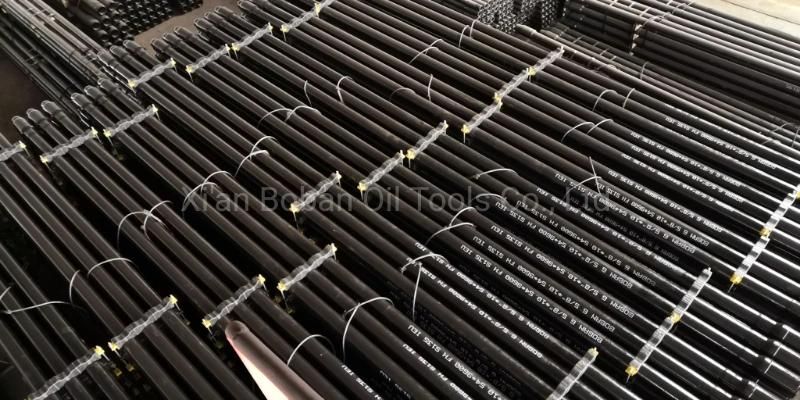

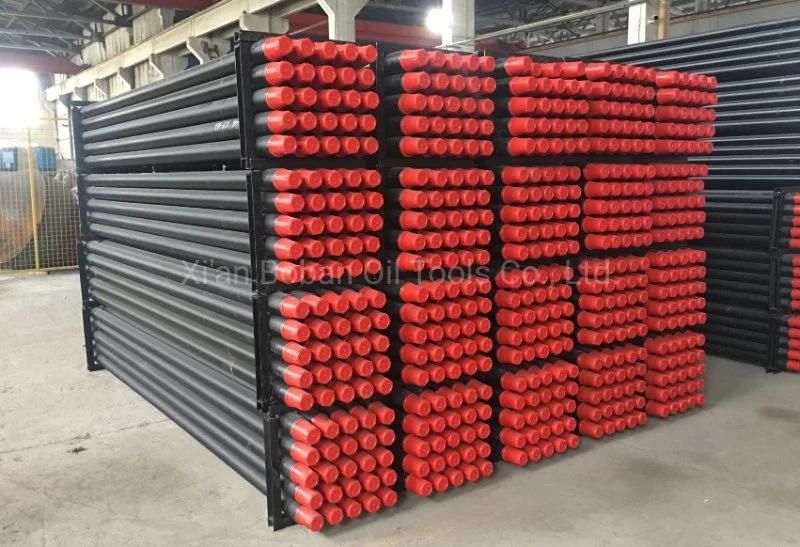

Detailed Photos
