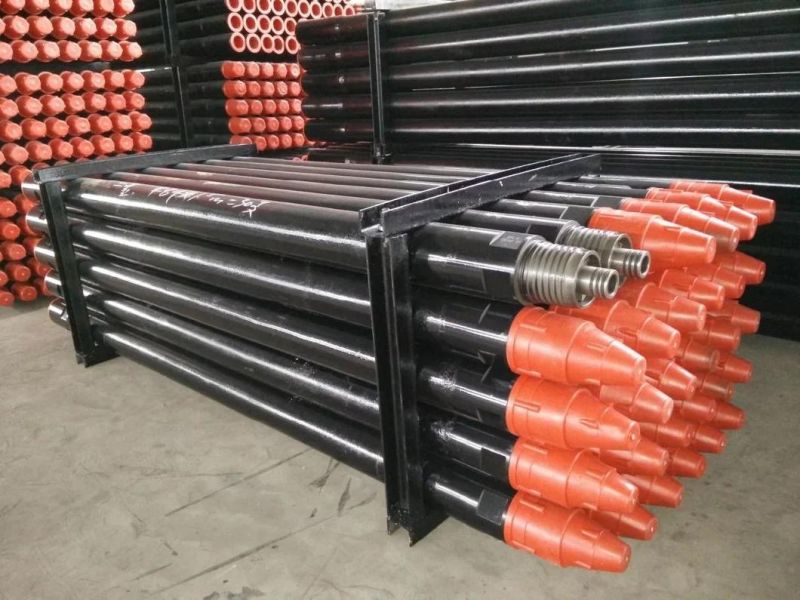

Grade E75/S135 Anti Sulfur Drilling Mud System Oil Drill Pipe

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy Steel
  • Usage：Oil Mining
  • Length：8.84-9.75m
  • Pipe Body Yield Strength(MPa)：517 654
  • Pipe Body Tensile Strength(MPa)：654-792

Base Info

  • Model NO.：DT-S 75, DT-S 95, DT-S 105, DT-SS 95, DT-SS 105
  • Transport Package：Pallet or Wooden Case
  • Specification：2-3,8“ - 6-5,8”
  • Trademark：TR Solids Control
  • Origin：Xi′ an, China
  • Production Capacity：1000PCS,Mont

Description

Pipe Body DT-S 75DT-S 95DT-S 105DT-S75DT-S 95DT-S 105Yield Strength(MPa)517-654654-758723-827517-654654-758723-827Tensile Strength(MPa)654-792723-896792-965654-792723-896792-965Impact energy(J)3/4size,-20°C≥70≥80≥80≥70≥80≥80Max.single value of hardness(HRC)242729242729SSC Test70%SMYS;Method A;720h85%SMYS;Method A;720hJointYield Strength(MPa)758-861758-861758-861758-861758-861758-861Tensile Strength(MPa)861-999861-999861-999861-999861-999861-999Impact energy(J)3/4size,-20°C≥89≥89≥89≥89≥89≥89Max.single value of hardness(HRC)323232323232SSC Test---65%SMYS;Method;720h
