Vertical Submersible Sewage Pump, Compact Design Submersible Motor Pump

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Submersible Sludge Pump
  • Flow：90m3,H

Base Info

  • Model NO.：80YZ80-20
  • Lift：22m
  • Speed：1460r,Min
  • Motor：11kw
  • Transport Package：Pallet or Wooden Case
  • Specification：Indefinite
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：100 Sets Per Month

Description

ModelFlowLiftSpeedMotor50YZ25-1225m3/h12m1430r/min3kw50YZ20-1820m3/h18m1430r/min4kw80YZ50-20B40m3/h16m1440r/min5.5kw80YZ50-2060m3/h17.5m1440r/min7.5kw80YZ80-2090m3/h22m1460r/min11kw100YZ100-30A75m3/h30m1470r/min18.5kw100YZ100-3060m3/h36m1470r/min22kw100YZ160-38B82m3/h33m1480r/min30kw100YZ120-60120m3/h40m1480r/min45kw150YZ250-40A135m3/h35m1480r/min55kw150YZ250-40B120m3/h28m1480r/min37kw

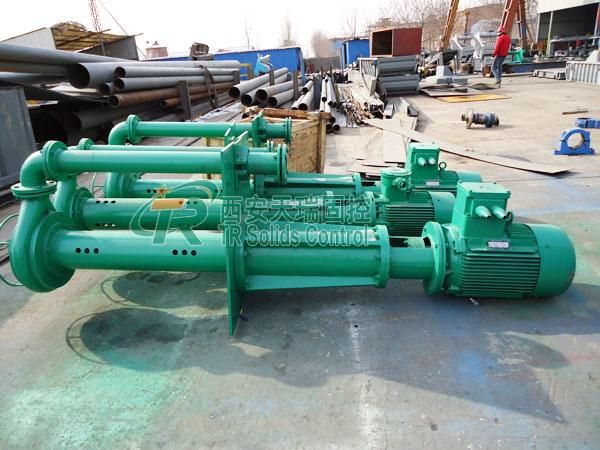

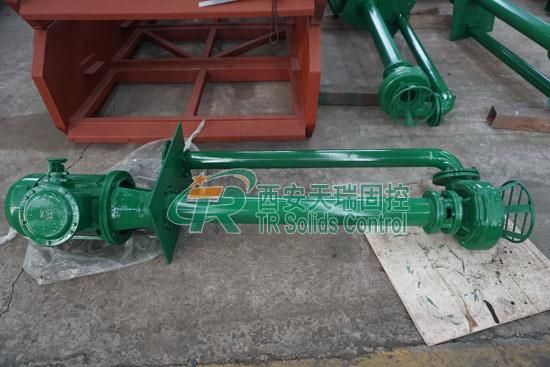

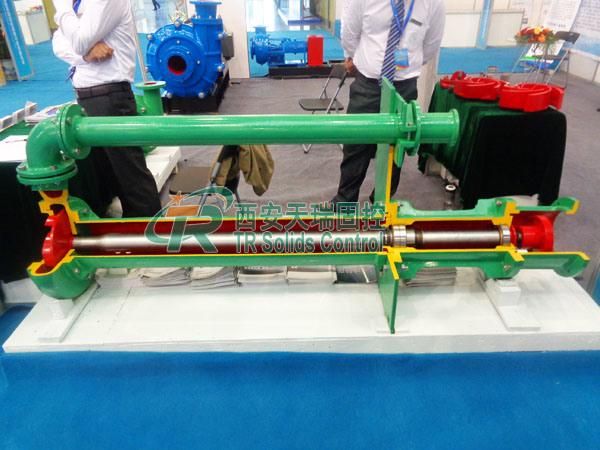

Vertical Submersible Sewage Pump, Compact Design Submersible Motor Pump
Vertical Submersible Sewage Pump, Compact Design Submersible Motor PumpVertical Submersible Sewage Pump, Compact Design Submersible Motor PumpVertical Submersible Sewage Pump, Compact Design Submersible Motor Pump





Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
