• Model No.：F Series,3nb
• Specifications：Standard
• Service Life：800 Hours
• Theory：Centrigugal Pump
• Foeged Steel：45#
• Transport Package：Wooden Bag and Sea Shipment
• Trademark：XINHUAFA
• Origin：China Mainland
• HS Code：8413910000
• Production Capacity：50000 Sets,Per Year

Basic Info.

Model No. F Series/3nb Specifications Standard Service Life 800 Hours Theory Centrigugal Pump Foeged Steel 45# Transport Package Wooden Bag and Sea Shipment Trademark XINHUAFA Origin China Mainland HS Code 8413910000 Production Capacity 50000 Sets/Per Year

Product Description

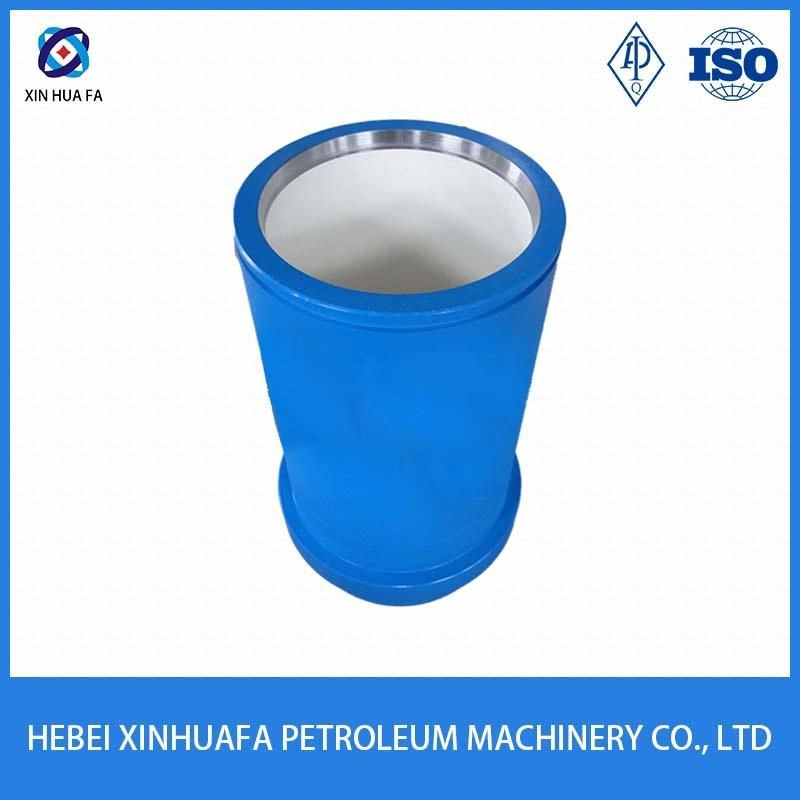

spare parts for drilling machine/mud pump parts/ceramic liner

Available for Mud Pump Models

BOMCO	F-500	F-800	F-1000	F-1300	F-1600	F-1600L	F-2200L
LANSHI	F-500	F-500	F-500	F-1300	F-1600/F-1600L	F-1600H
	3NB500C	3NB1000C	3NB1300C	3NB1600
	P-800	P-1000	P-1300	P-1600	P-2200
HONGHUA	HHF-500	HHF-800	HHF-1000	HHF-1300	HHF-1600	HHF-1600HL	HHF-2200HL
RONGSHENG (RS)	RSF-500	RSF-800	RSF-1000	RSF-1300	RSF-1300L	RSF-1600	RSF-1600HL
RG	RGF-500	RGF-800	RGF-1000	RGF-1300	RGF-1600
QINGZHOU (QZ)	QZF-500	QZF-800	QZF-1000	QZF-1300	QZF-1600
	QZ3NB-800	QZ3NB-1000	QZ3NB-1300	QZ3NB-1300A	QZ3NB-1600
RONGLI (RL)	RL-F500	RL-F800	RL-F1000	RL-F1300	RL-F1600	RL-F2200
	RL-3NB350	RL-3NB500(A)	RL-3NB600	RL-3NB800	RL-3NB1000 (A/D)	RL-3NB1300 (A/D)	RL-3NB1600
TSC	WF-400	WF-450	WF-700	WF-1000	WF-1600
EMSCO	F-350/500	F-650	F-800	F-1000	F-1300	F-1600
	FA 1300	FB-1300	FA-1600	FB-1600	DB-550	D-300	D-700
NATIONAL	8-P-80	9-P-100	10-P-130	12-P-160	14-P-220
OILWELL	A-600-PT	A-850-PT	A-1100-PT	A-1400-PT	A-1700-PT
	A-350	A-560	A-650	A-850	A-1100	A-1400	A-1700
IDECO	T-500	T-800	T-1000	T-1300	T-1600
WIRTH	TPK-1000	TPK-1300	TPK-1600	TPK-2000	TPK-2200
ELLS WILLIAMS	E-447	E-2200	W440	W446
GARDNER DENVER	PZ-7	PZ-8	PZ-9	PZ-10	PZ-11	PZ-L	PA-8
	FY-FXD	FO-FXO	FD-FXX	FG-GXG
RUSSIA PUMPS	UNBT 650	UNBT 950	UNBT 1180L	UNB 600	NBT 600	ETC.

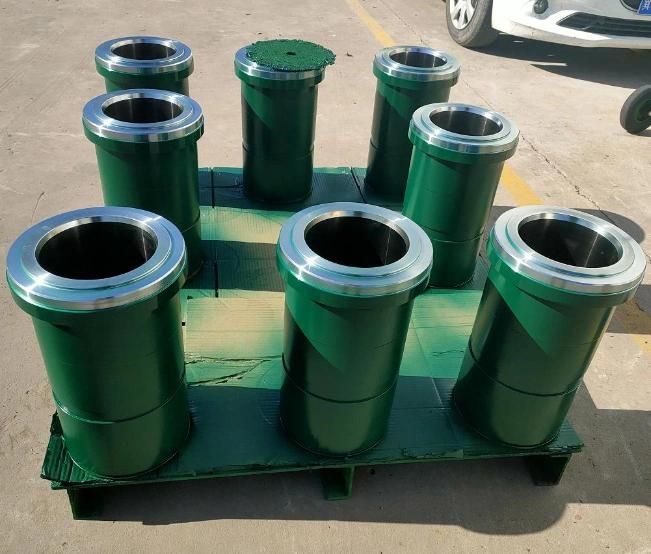

Bi-metal Liners
The bi-metal liner is composed of two layers and fixed tightly. The outer sleeve is forged steel with abrasion resistance, it adapts the technology of centrigugal forging;  the inner sleeve is high chromium iron with wear&corrosion resistance, after heat treatment, the hardness of it can reach to a lever of 62 RC.
The bi-metal liners produced by us strictly control the tolerance, assure the easy installation, inner sleeve is highly polished with abrasion&corrosive resistance, can used in various bad working environment with longer service life.
Liner Outer Sleeve: 45#forged steel, tensile strength is σb>610MPa, yield strength is σs>450MPa, ,elongation hardness is §>17%,hardness is HRC180-200
Liner Inner Sleeve: high chromium cast iron (centrifugal forged). Annealing hardness is HRC≤40. Quenching hardness is HRC59-67
Chemical Composition:C 2.8%-3.1%   Cr 26%-28%  Si 0.6%-0.9%           Mn 0.5%-1%        Mo 0.5%-0.8%   S , P <0.05%;

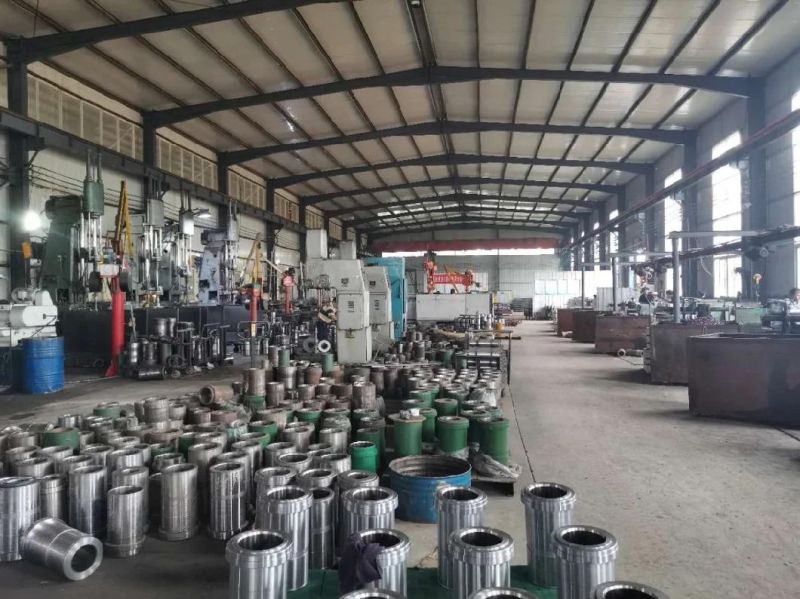

Company Information
Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.
Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Canada, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.

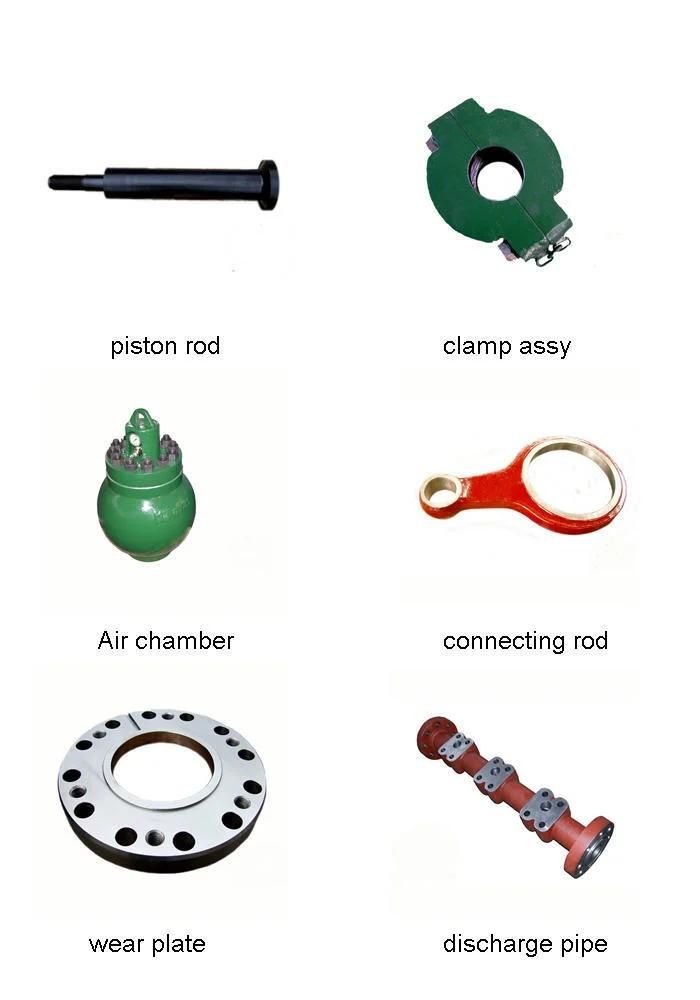

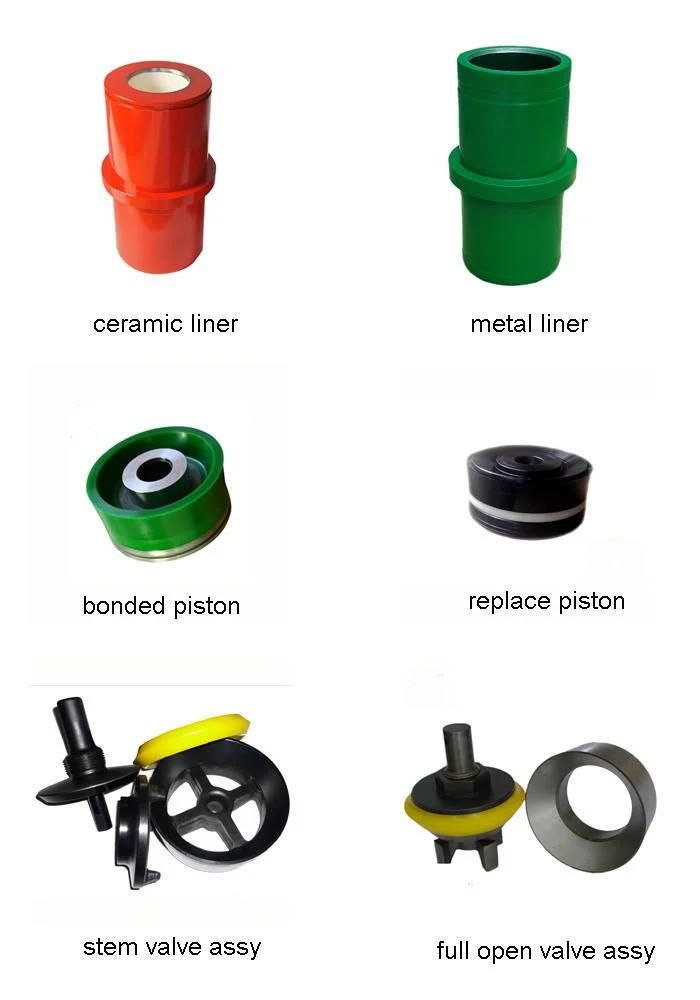

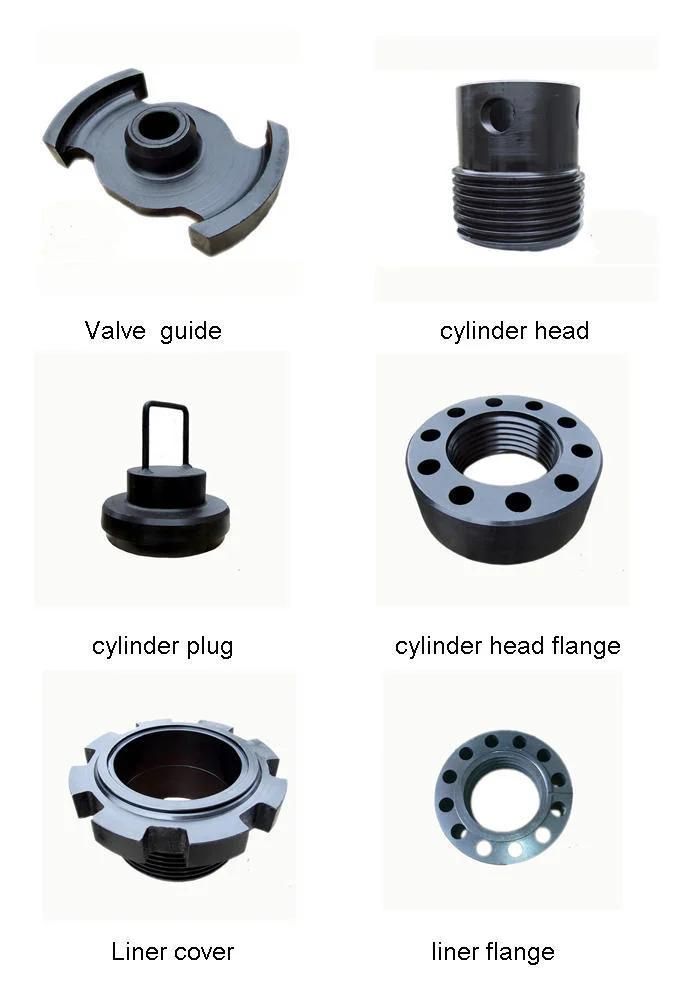

related products:

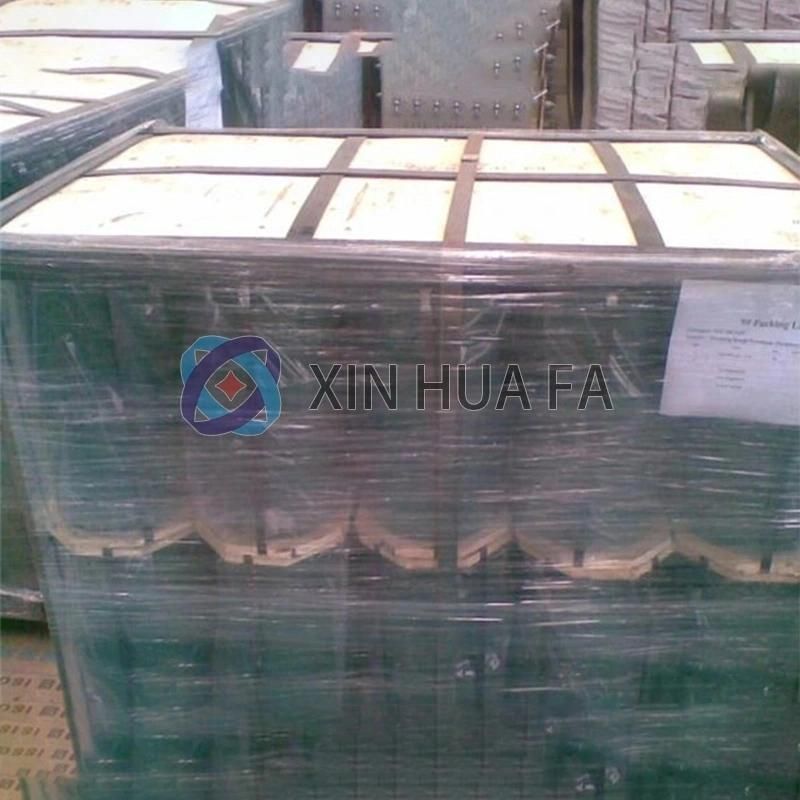

package:
