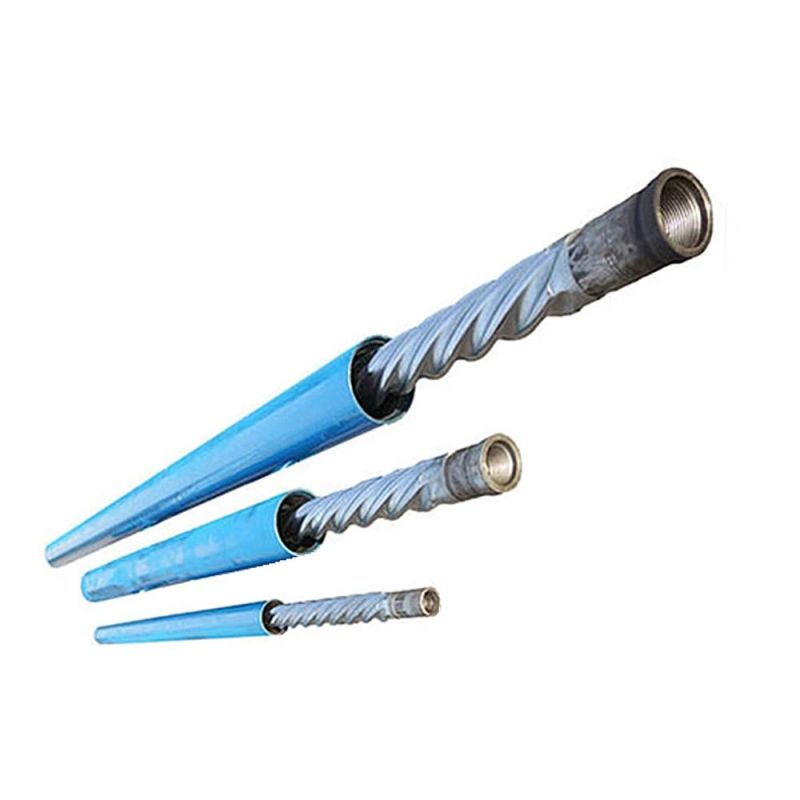

5lz 60 Lz43 Lz286 API Drilling Downhole Motor/Screw Drill/Bent Mud Motor
Shandong Seaco Machinery Equipment Co., Ltd.- After-sales Service：on Site
- Warranty：12month
- Manufacturing Process：Forging
- Surface Treatment：Polishing
- Operation Pressure：Atmospheric Pressure
- Material：Cast Steel
Base Info
- Model NO.：5LZ120
- Steel Material：AISI 4130
- Bent Degree：1-5degree
- Parts：12months Parts
- Bearing：Nfk
- temperature：High to 135 Degree
- Packing：Box
- Size：Lz43 Lz 60 Lz286
- Transport Package：Standard Export Packaging
- Specification：5LZ43-5LZ286
- Trademark：SEACO
- Origin：China
- Production Capacity：1000
Description
Joint Thread
Length
Unit
mm
In
L/S
Mpa
r/min
N.m
N.m
KW
KN
In
In
mm
5LZ73×7.0
83-121
3 1/4-4 3/4
2-4
3.2
80-160
615
1077
5.8-11.5
25
2 3/8REG
2 3/8REG
3423
9LZ89×7.0
105-143
4 1/8-5 5/8
3-8
3.2
147-392
504
882
8.64-23
30
2 7/8REG
2 7/8REG
2911
5LZ95×7.0
114-150
4 1/8-5 7/8
5-12
3.2
140-320
710
1240
10.5-25
40
2 7/8REG
2 7/8REG
3920
5LZ120×7.0
152-200
6-7 7/8
8-16
3.2
80-180
1850
3200
23-47
106
3 1/2REG
3 1/2REG
5039
5LZ165×7.0V
245-244
8 1/8-9 5/8
18-30
3.2
111-167
4440
7770
57.6-86.4
160
4 1/2REG
4 1/2REG
7408
5LZ165.5×7.0V
215-244
8 1/8-9 5/8
18-30
4.0
120-180
5135
8987
72-108
180
4 1/2REG
4 1/2REG
7748
5LZ172×7.0V
215-244
8 1/8-9 5/8
18-30
4.0
120-180
5135
8987
72-108
180
4 1/2REG
4 1/2REG
7391
5LZ172.5×7.0V
215-244
8 1/8-9 5/8
20-35
4.0
115-180
6452
11299
86.4-151.2
200
4 1/2REG
4 1/2REG
8031
7LZ172.5×7.0V
215-244
8 1/8-9 5/8
20-35
4.0
75-180
6527
11420
59.5-108.6
160
4 1/2REG
4 1/2REG
8631
5LZ185×7.0
215-244
8 1/8-9 5/8
20-35
4.0
184
5436
8154
80-140
240
4 1/2REG
6 1/2REG
8120
5LZ185.5×7.0
215-244
8 1/8-9 5/8
20-35
4.0
173
5939
8908
80-140
240
4 1/2REG
6 1/2REG
8120
5LZ197×7.0
244-311
9 1/8-12 5/8
20-40
3.2
61-122
14118
14118
57.6-115.2
240
5 1/2REG
6 5/8REG
7998
5LZ197.5×7.0
244-311
9 5/8-12 1/4
20-40
4.0
85-160
12640
12640
72-144
260
5 1/2REG
6 5/8REG
8598
7LZ203×7.0
244-311
9 5/8-12 1/4
20-40
3.2
70-155
12289
12289
57.6-126.7
240
5 1/2REG
6 5/8REG
7798
5LZ203.5×7.0
244-311
9 5/8-12 1/4
20-40
4.0
70-155
8778
15362
72-158.4
260
5 1/2REG
6 5/8REG
8598
5LZ244×7.0
311-445
12 1/2-17 1/2
50-75
3.2
91-136
15124
26468
144-216
360
6 5/8REG
7 5/8REG
8635
7LZ244.5×7.0
311-445
12 1/2-17 1/2
50-75
4.0
91-136
18905
33085
180-270
450
6 5/8REG
7 5/8REG
Detailed Photos
