• Model NO.：BW850
• Specification：CE, ISO 9001: 2000
• Trademark：JCDRILL
• Origin：China
• HS Code：8430419000
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. BW850 Specification CE, ISO 9001: 2000 Trademark JCDRILL Origin China HS Code 8430419000 Production Capacity 10000pieces/Year

Product Description

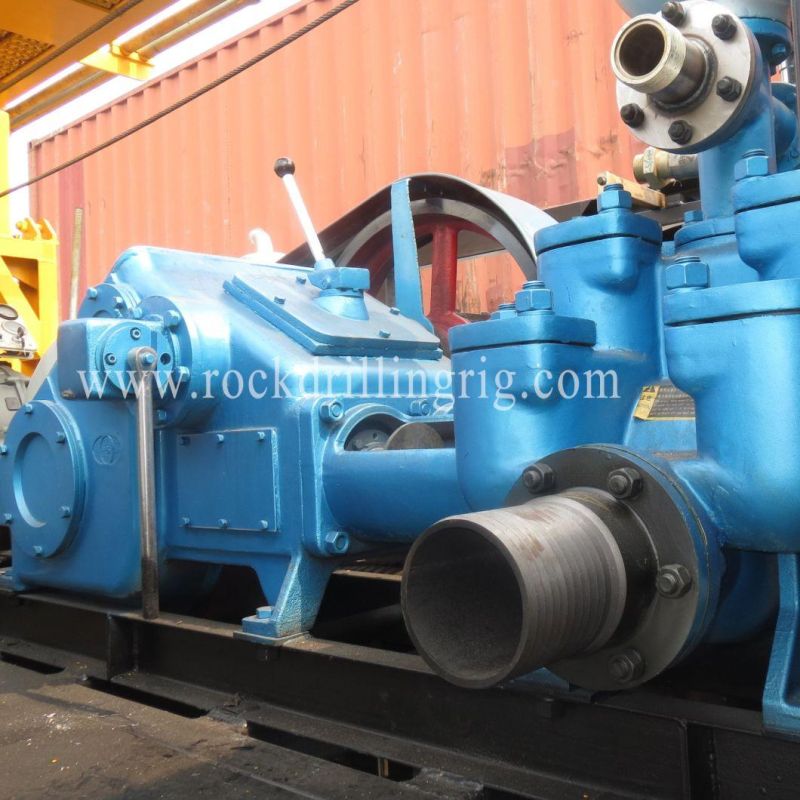

Bw850/5 Diesel Engine Driven Flow Rate Mud pump used for various engineering drilling rigs
BW850/2 MUD PUMPFunction BW850 mud pump used for various engineering drilling rigs, geological drilling rig when drilling would like to nip the circulating fluid (mud or water) Types and Features BW850 mud pump is a horizontal double-acting cylinder reciprocating piston pump with variable speed to change the displacement and pressure selected for use. Technical specifications of BW850/2 mud pump Type Horizontal double cylinder reciprocating double action piston pump Cylinder diameter(mm) 150 Stroke(mm) 180 Pump speed(Time/min) 82 58 Flow(L/min) 600 Pressure(MPa) 3 Belt 700XC-5 V-belt speed 470r/min Power(Kw) 37 Inlet pipe inner diameter 125mm Drain pipe inner diameter 65mm Return pipe inner diameter 40mm A deceleration 36/27=1.33 Gear 82/19=4.31 shape size(mm) 2000*1030*1400 Weight(kg) 1500 Attachment parts for BW850/2 N
O. Product Name Description Unit Q'ty 1 Cylinder removal tool BW850-5001 Sets 1 2 Folding seat tool BW850-5002 Sets 1 3 Socket wrench BW850-6038 Pcs 1 4 Ф12iron rod BW850-6039 Pcs 1 5 Open end wrench 22*24 BW850-6040 Pcs 1 6 Valve cushion (black plastic tray) BW850-4026 Pcs 5 7 Valve spring BW850-3011 Pcs 5 8 piston BW850-3012 Pcs 4 9 Valve cover pressure pad BW850-3013 Pcs 5 10 O-Ring Ф 145*3.1 Pcs 4 11 Ф 145*5.7 Pcs 4 12 Ф180*8 Pcs 4 13 9 in 1 Sets 4 14 Seal 7X1 Sets 4 15 Scratch circle BW850-2012 Pcs 4 16 Anti-seismic pressure gauge (4MPa) BW850-2026 Pcs 1 17 Faucet BW850-2027 Pcs 1 18 Instructions BW850/2 Sets 1 19 Product certification BW850/2 Sets 1 20 Packing List BW850/2 S
