• Type：Mud Tank
• MOQ：1
• Power Source：Hydraulic
• Maximum Flow：450
• Transport Package：Wooden Bag and Sea Shipment
• Trademark：XINHUAFA
• Origin：Hebei
• HS Code：8413910000
• Production Capacity：500 Sets,Per Year

Basic Info.

Type Mud Tank MOQ 1 Power Source Hydraulic Maximum Flow 450 Transport Package Wooden Bag and Sea Shipment Trademark XINHUAFA Origin Hebei HS Code 8413910000 Production Capacity 500 Sets/Per Year

Product Description

Export Triplex Mud Pump BW450 for Drilling Rig

The mud pump is horizontal tri-cylinder dual role penthouse Detroit piston pump. It is mainly used to supply flushing fluid to the drilling well in core drilling or hole drilling. The pump can discharge not only clear water, but also thick mud. And for the specialty of small external dimension, light weight, the pump is suitable for transportation in mountain.

BW450/5 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has three bore and four gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application,the deepest can be used with 1800meters driling rig,it also can be used cement perfusion.

Drilling rig and mud pump application range:
1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling.

CharacteristicS

They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.


BW450/5 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.

All our mud pump can bedriven by electric motor,diesel engine,hydraulic motor.

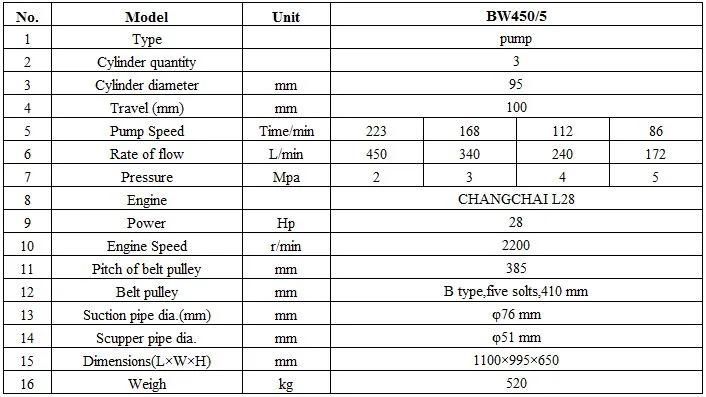

Specification

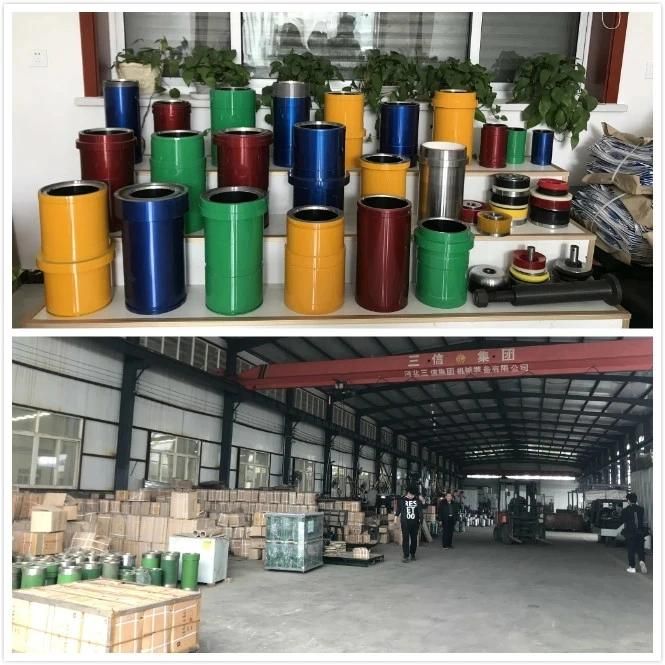

Factory:

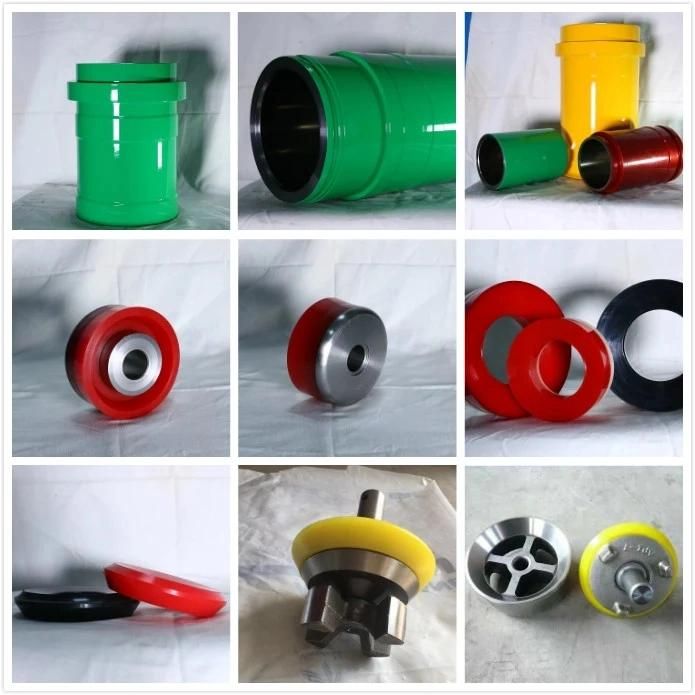

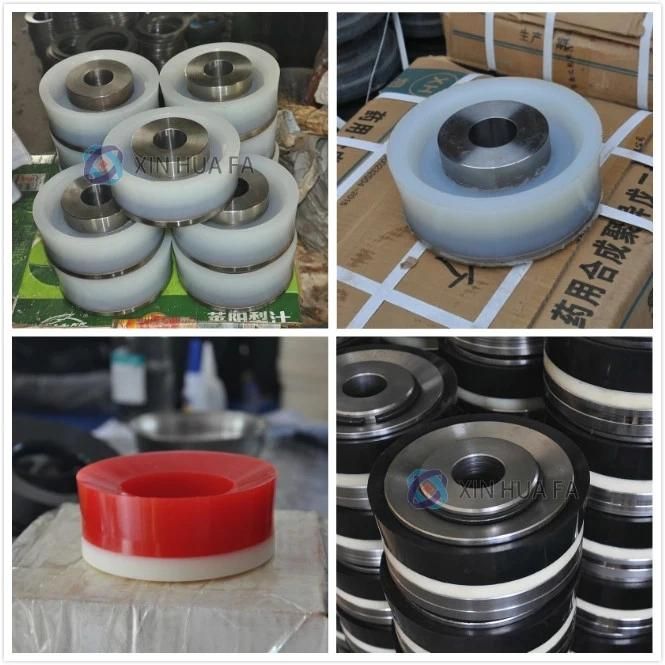

        Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.

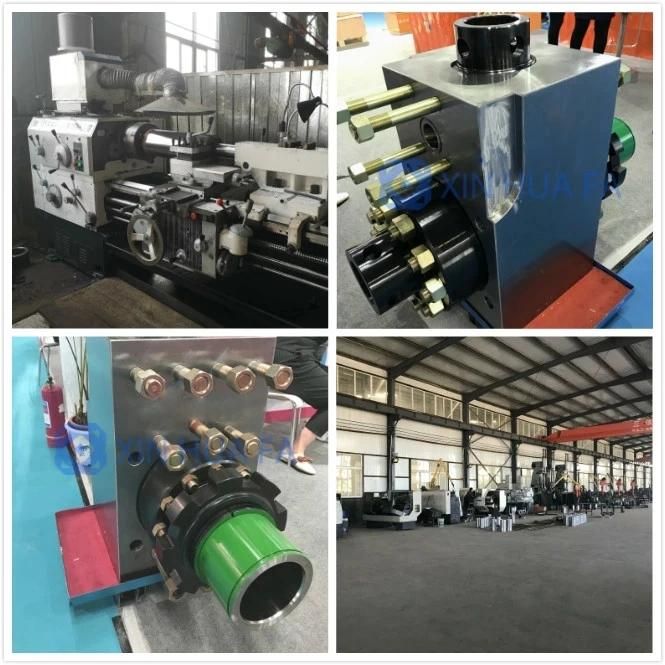

The company holds a professional technical team and is equipped with advanced machineries,improving the technical skills and updating product quality,
     Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Russia, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.

Our Service:
1. Rich experience on production process of ceramic rubber wear liners
2. Strict quality control on ceramic liners
3. Good delivery time
4. Custom shape ceramic wear liners are available.
5. Excellent bonding between rubber and ceramic

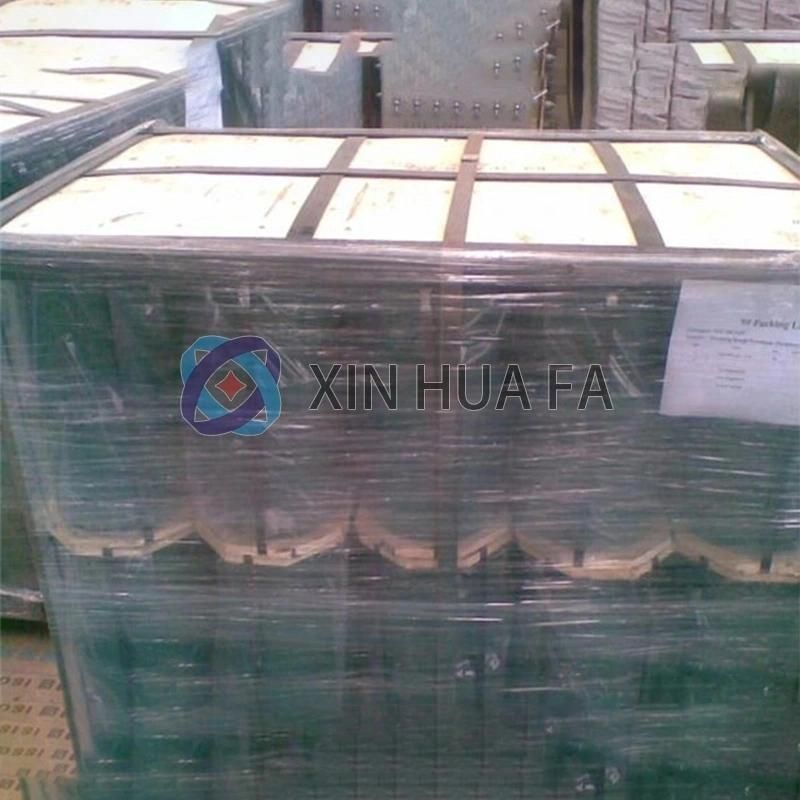

package:




Related products:
