• Model NO.：BW250
• Specification：1100* 995 * 650 mm
• Trademark：JINCHENG
• Origin：China
• HS Code：8413810090

Name

BW-250

Type

Horizontal,Three-cylinder single-acting,

reciprocal piston pump

Stroke

100 mm

Liner Dia

80mm

65mm

Gears

I

II

III

IV

I

II

III

IV

Pump Speed(times/min)

200

116

72

42

200

116

72

42

Displacement(liter/min)

250

145

90

52

166

96

60

35

Pressure(MPa)

2.5

4.5

6

6

4

6

7

7

Volume fraction

85%

Combined efficiency

72%

Input power

15 Kw

Triangle leather belt pitch dia

Type B ×5 Groove    410 mm

Input speed

500 r/min

Max  suction head

2.5 m

Suction  Pipe Dia

φ76 mm

Discharge Pipe Dia

φ51 mm

Measurement

1100 × 995 × 650 mm

Weight

500 Kg

Company information

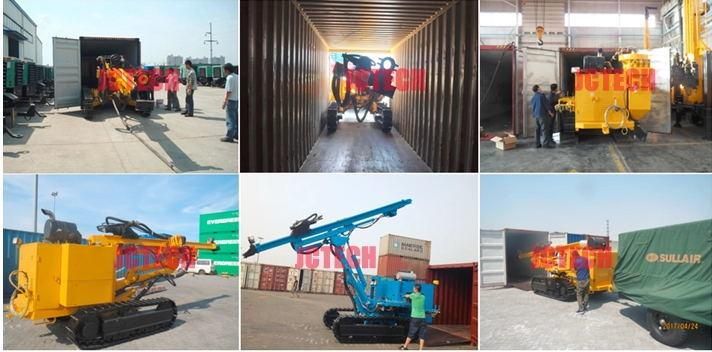

Packing and shipping


Why choose us
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Warranty

Spare parts

Every equipment issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.

JCDRILL is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services



FAQ

1.Q: Are you original manufacturer?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.

2.Q: How long will the delivery time take?
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.

3.Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70%  balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

4.Q: How about after sales service?
A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

5.Q: Which Incoterms 2010 terms can we work?
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.

6.Q:Spare Parts When You Need Them
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
