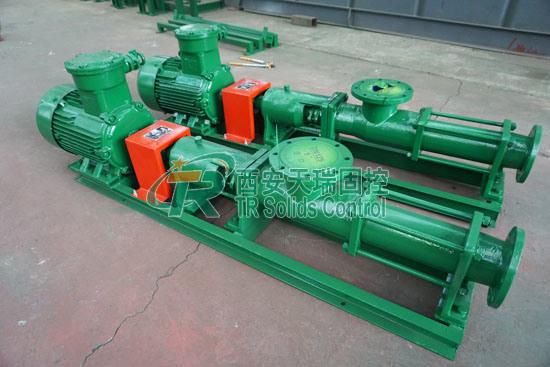

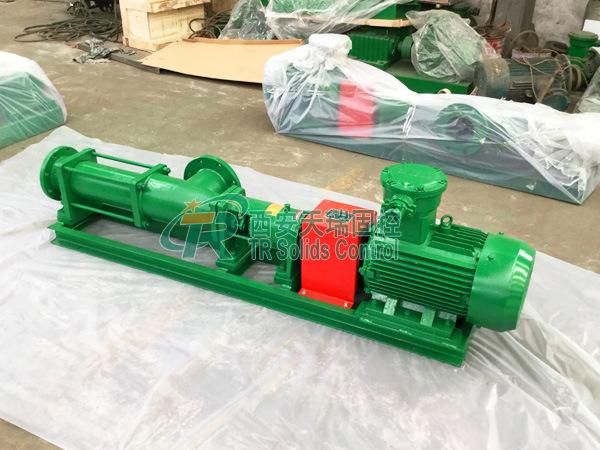

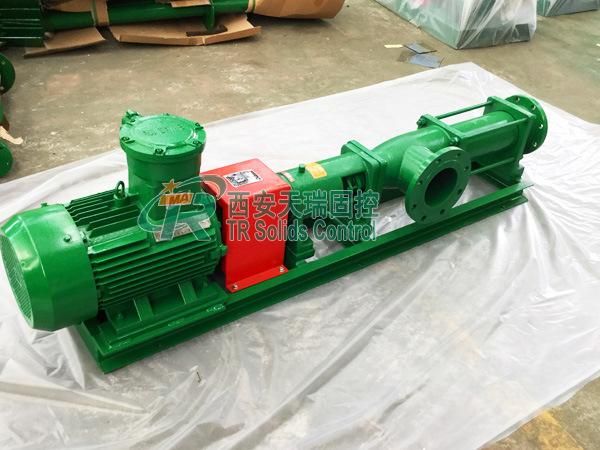

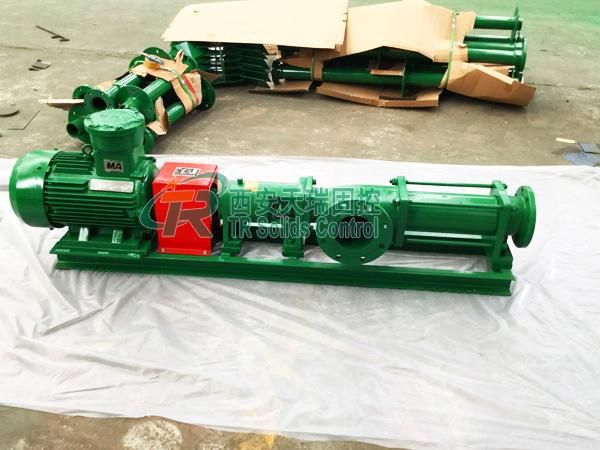

Horizontal Directional Drilling Screw Type Pump

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Screw Pump
  • Flow Rate：70m³,H

Base Info

  • Model NO.：TRG70A-220
  • Power：22kw
  • Pressure：0.3MPa
  • Inlet：6"
  • Outlet：6"
  • Ex Standard：Exdiibt4
  • Weight：875kg
  • Transport Package：Pallet or Wooden Case
  • Specification：3740× 420× 785mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：100 Sets Per Month

Description

ModelFlow RatePressurePower

Inlet

(Inch)

Outlet

(Inch)

Ex Standard

Weight

(Kg)

DimensionTRG10A-04010m³/h0.3Mpa4kw33ExdIIBt4/IECEX/A-TEX2452245×320×550mmTRG20A-05520m³/h5.5kw333232450×340×562mmTRG30A-07530m³/h7.5kw443862761×370×600mmTRG40A-11040m³/h11kw554543270×370×665mmTRG50A-11050m³/h11kw556083790×400×782mmTRG60A-15060m³/h15kw556493322×550×740mmTRG70A-22070m³/h22kw668753740×420×785mmTRG80A-22080m³/h22kw668753740×420×785mmTRG90A-22090m³/h22kw668753740×420×785mm

Horizontal Directional Drilling Screw Type PumpHorizontal Directional Drilling Screw Type PumpHorizontal Directional Drilling Screw Type PumpHorizontal Directional Drilling Screw Type Pump




Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
