Oilfield Equipment Solids Control System Drilling Tools Jet Mud Mixer

Xi'an Boban Oil Tools Co., Ltd.
  • After-sales Service：24,7
  • Warranty：12 Months
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Cast Steel

Base Info

  • Model NO.：BBJM40
  • Type：Jet Mud Mixer
  • Transport Package：Pallet or Wooden Case
  • Specification：2130× 1650× 1150 , 84x65x45
  • Trademark：BOBAN & OEM
  • Origin：China
  • HS Code：84741000
  • Production Capacity：20 Sets Per Mouth

Description

Basic Info.

Model NO. BBJM40 Type Jet Mud Mixer Transport Package Pallet or Wooden Case Specification 2130× 1650× 1150 / 84x65x45 Trademark BOBAN & OEM Origin China HS Code 84741000 Production Capacity 20 Sets Per Mouth

Product Description

Features and Advantages

Jet Mud Mixer is a single jet mixer combined with 45 KW ( or 55 KW ) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers.The weighting hopper can be combined with a pump or be used independently with pump connected together by manifold valve. Put the drilling fluids materials ( bentonites, barite powder ) and the corresponding chemical additives ( polymer ) into circulation tank for increasing the total.

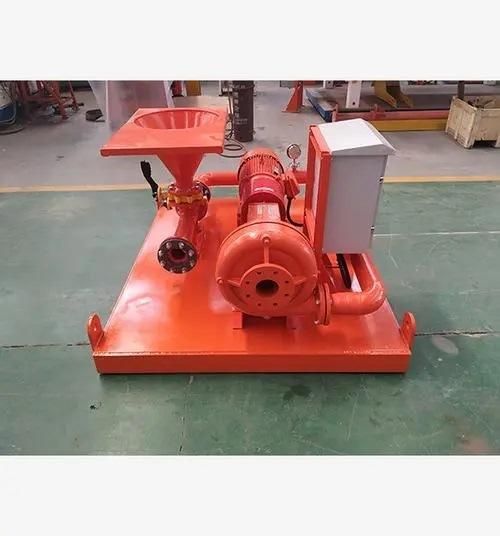

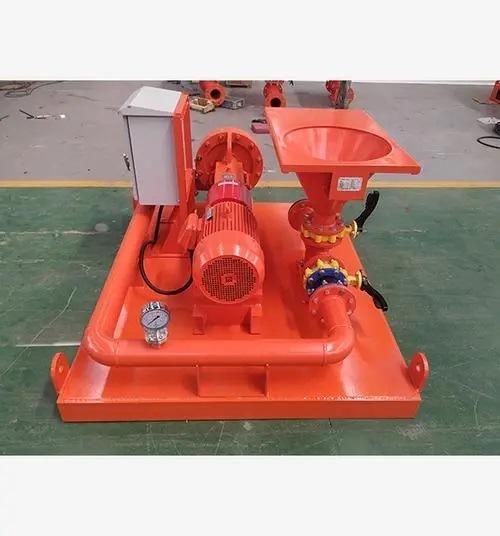

Product Photos
Oilfield Equipment Solids Control System Drilling Tools Jet Mud MixerOilfield Equipment Solids Control System Drilling Tools Jet Mud Mixer
Parameters

modelJM40
Matching PumpCP68-45
 Power (Kw)45
 Flow (m3/h)200
 Lift (m)/(ft)33 / 108
  Pressure (Mpa)0.25~0.40
 Inlet Pipe (mm)/(in)DN150 / 6
 Nozzle Caliber (mm)/(in)Φ40 / 1 1/2
 Hopper Dimension (mm)/(in)Φ700×Φ150 / Φ28xΦ6
Burden Speed (kg/min)/(lbs/min)≤80 / 176.4
 Density (g/m3)/(lb/gal)≤2.4 / 20
 Viscosity  ≤120s
Weight (kg)1400
 External dimension (mm)/(in)2130×1650×1150
/ 84x65x45
