• Model NO.：casing centralizer
• Material：Carbon Steel, Aluminium, Nylon, etc.
• Type：Centralizer
• Process：Casting or Injection Molding
• Size Range：4 1,2---13 3,8"
• Standard：API 10d
• Use：Oil Well Cementing
• Transport Package：Plywood Case
• Specification：API
• Trademark：ZS
• Origin：China
• HS Code：73079900
• Production Capacity：50000piece,Year

Basic Info.

Model NO. casing centralizer Material Carbon Steel, Aluminium, Nylon, etc. Type Centralizer Process Casting or Injection Molding Size Range 4 1/2---13 3/8" Standard API 10d Use Oil Well Cementing Transport Package Plywood Case Specification API Trademark ZS Origin China HS Code 73079900 Production Capacity 50000piece/Year

Product Description

API solid body centralizer, casing rigid centralizer

1) Material: carbon steel

2) Type: casing rigid centralizer

3) API and ISO certified

4) Specifications: 4 1/2''---13 3/8''. More special sizes or combination are available as requested.

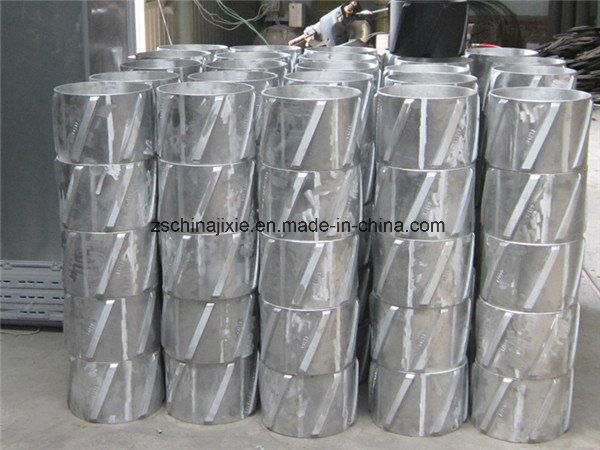

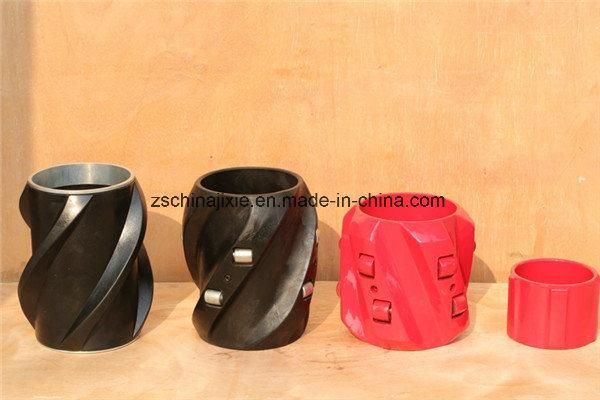

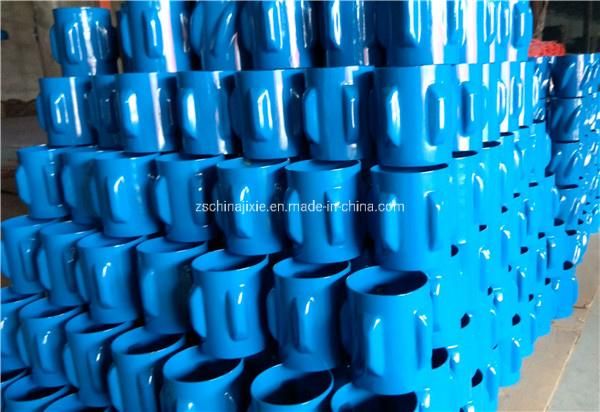

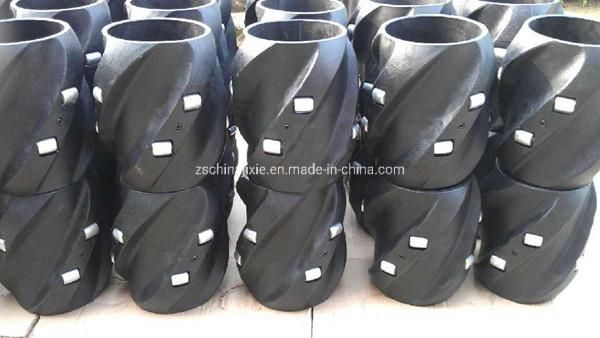

5) Photos






6) Introduction

Casing centralizers are to help center the casing in the wellbore can be used to help align casings through well heads near surface, allowing even distribution of the cement around the casing during cementing operations.

Rigid centralizers are built out of solid steel bar or cast iron, with a fixed blade height and are sized to fit a specific casing or hole size.

7) Feature

a. Rugged and works well even in deviated wellbores, regardless of the side force.
b. Shock, impact and corrosion resistant
c. High tensile and yield strengths
d. Available with straight or spiral blades
e. Helps ensure positive centering in deviated or horizontal holes
f. Helps prevent differtial sticking while running casing
g. Provide a guaranteed standoff and function as bearings during the pipe rotation.

8) Installation

Rigid centralizers can be installed on the casing with stop collars or with integral set screws. Installations that allow casing rotation and reciprocation are preferred because of improved displacement efficiency. Most slip-on rigid centralizers must be installed between stop collars and are freely floating there between.

9) Parameter

Model	Max OD(mm)	ID(mm)	Length(mm)
4-1/2" x 6"	145	116.5	200
5" x 6"	145	129	200
5-1/2" x 8-1/2"	205-210	142	200/300
6-5/8" x 8-1/2"	205-210	171	200/300
7" x 8-1/2"	205-210	181	200/300
7" x 9-1/2"	225-235	181	200/300
7" x 9-5/8"	225-235	181	200/300
9-5/8" x 12-1/4"	300-305	248	200
13-3/8" x 17-1/2"	430-435	346	200

Package

Certificates


Company Information

Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC.

We have the certificates of API 5CT, API Q1, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001, etc..

Our  products mainly include:

1. Casing Centralizer
2.  Float Collar & Float Shoe
3. Cementing Plug
4.  Cementing Head
5.  Cement Basket
6.  Tubing Pump / Rod Pump
7.  Valve Ball & seat
8. Casing / Tubing Pipe and Coupling
9. Stage Collar
10. Pumping Unit
11. Sucker Rod

Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.  Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
