• Model NO.：TRQJ250X2S-100X16N
• Type：Mud Cleaner
• Color：Green or Custom
• Transport Package：Wooden Case
• Specification：2900× 1680× 1800
• Trademark：TR Solids Control
• Origin：China
• Production Capacity：30 Sets, Month

Basic Info.

Model NO. TRQJ250X2S-100X16N Type Mud Cleaner Color Green or Custom Transport Package Wooden Case Specification 2900× 1680× 1800 Trademark TR Solids Control Origin China Production Capacity 30 Sets/ Month

Product Description

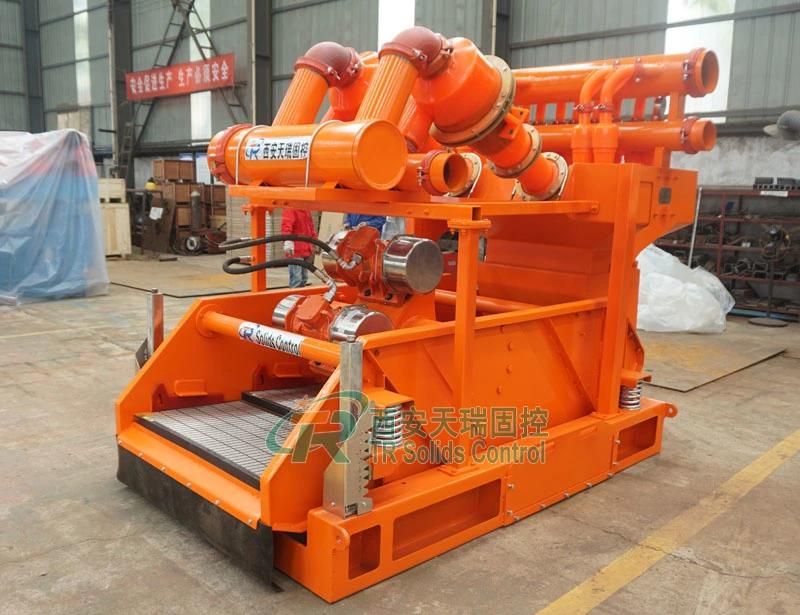

Mud cleaner is combination with Drilling Desander,Drilling Desilter and shale shaker.Drilling Mud Cleaner is also called Mud Desander and Mud Desilter assembly,which is the combination of desander,desilter and an underflow screen.

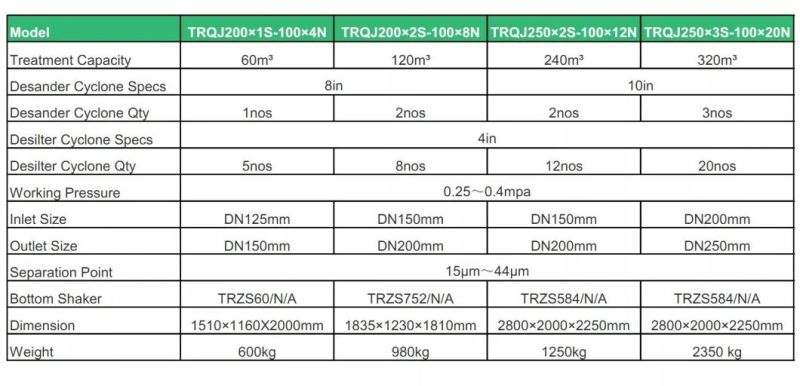

Mud Cleaner is the second class and the third class solids control equipment which is the newest type to treat the drilling fluid. At the same time drilling Mud cleaner has the higher cleaning function compared with separated desander and desilter. In addition to the reasonable design process, it equals another shale shaker. Fluids mud cleaner structure is compact, it occupys small space and the function is powerful.Mud Cleaner Technical ParametersMud Cleaner for Drilling Fluids Solids Control
Drilling mud cleaner is also called Desander and Desilter assembly,which is the combination of desander,desilter and an underflow screen. Namely,mud cleaners consists of a two-stage separation process using a combination of hydrocyclones mounted over a shale shaker to operate as a single unit.
Designed to handle the entire circulating volume,Drilling cuttings cleaners are effective on both weighted and unweighted drilling-fluid systems in removing and drying solids while retaining the expensive liquid.
The hydrocyclones(desanders and desilters) make the primary separation with underflow directed onto the shaker's vibrating screen. Used correctly, the drilling mud cleaner lower both drilling-fluid and disposal costs.
In oilfield solids control,drilling mud cleaners are very efficient for  oil gas well drilling mud purification system.Mud Cleaners are one of the important equipments for solids liqiud separation system.
TR solids control manufacture the drilling mud cleaner which could replace the international famous brand.
