• Model NO.：ZS93
• Product Name：Float Equipment
• Transport Package：Wooden Case
• Specification：5-1,2" to 20"
• Trademark：ZS
• Origin：Henan
• Production Capacity：5000 Piece,Pieces Per Month

Basic Info.

Model NO. ZS93 Product Name Float Equipment Transport Package Wooden Case Specification 5-1/2" to 20" Trademark ZS Origin Henan Production Capacity 5000 Piece/Pieces Per Month

Product Description

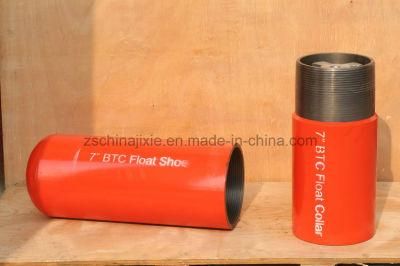

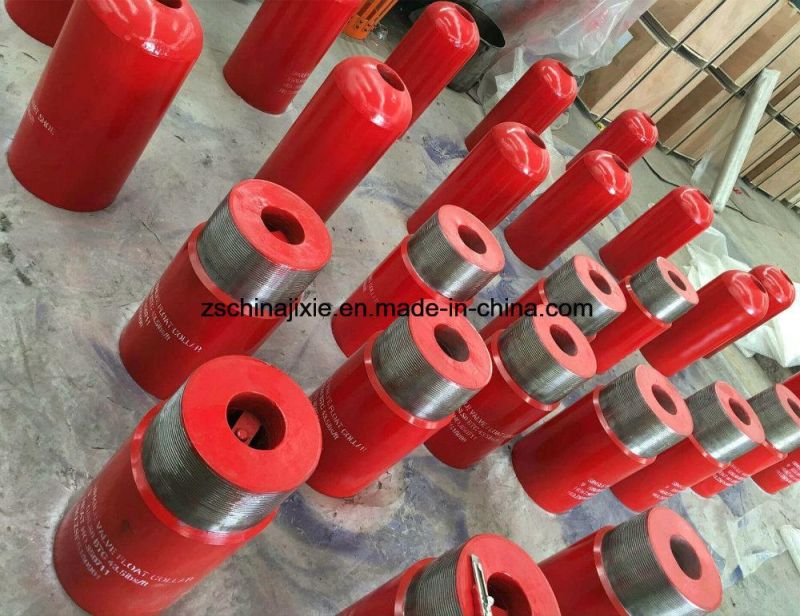

Float Collar Float Shoe
Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guids the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.

Features
Rounded nose profile float shoe helps guide the casing string.High strength design ensures excellent performance for flow endurance and back pressure holding.Auto fill up, saves considerable running-in time.Special non-rotating design float collar ensures corresponding cementing plugs drilled out quicking.Single valve and double valve versions are available.Spring structure and ball structure valve are available.Stab in type and normal type are available.

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore (in)	Thread Type	lb(in2)
				Parameter
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
