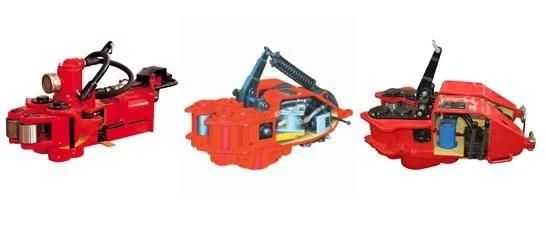

Q Series Pneumatic Rotary Tong
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.- Manufacturing Process:Casting
- Surface Treatment:Spray-Paint
- Operation Pressure:Atmospheric Pressure
- Material:Stainless Steel
- Weight:378kg
- Transport Package:Pallet or Wooden Case
Base Info
- Model NO.:Q140-200 Q254-250 Q254-300Y
- Specification:1400× 530× 835mm
- Trademark:TR Solids Control
- Origin:China
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. Q140-200 Q254-250 Q254-300Y Specification 1400× 530× 835mm Trademark TR Solids Control Origin China Production Capacity 50 Sets Per MonthProduct Description
The wrench is the best replacement of the spinning rope (or chain). It is applied for the mechanized spinning operation. The applicable range of pipe diameter is wide, and it can be arbitrarily adjusted whenever necessary. There are two configurations for clamping apparatus: air tyre and air cylinder. It is designed and manufactured according to API Spec 7K "Specification for Drilling Equipment".
Model | Q140-200 | Q254-250 | Q254-300Y | |
---|---|---|---|---|
Drive mode | Pneumatic | Hydraulic | ||
Size range | mm | 88.9-139.7 | 88.9-254 | 88.9-254 |
in | 31/2-51/2 | 31/2-10 | 31/2-10 | |
Air pressure | MPa | 0.5-0.9 | 0.5-0.9 | |
psi | 72-130 | 72-130 | ||
Pressure rating | Mpa | 14 | ||
psi | 2000 | |||
Max. brake torque | Nm | 2000 | 2500 | 3000 |
Ft.lbf | 1475 | 1840 | 2210 | |
Speed | RPM | 0-90 | 0-120 | 0-95 |
Air consumption | m3/min | 10.3 | 15 | |
ft3/min | 360 | 529 | ||
Fow | LPM | 120-140 | ||
GPM | 32-37 | |||
Size | mm | 1400×530×835 | 1250×570×465 | 1100×560×700 |
in | 55×21×33 | 49×23×18 | 44×23×28 | |
Weight | Kg | 378 | 440 | 400 |
lb | 833 | 971 |
