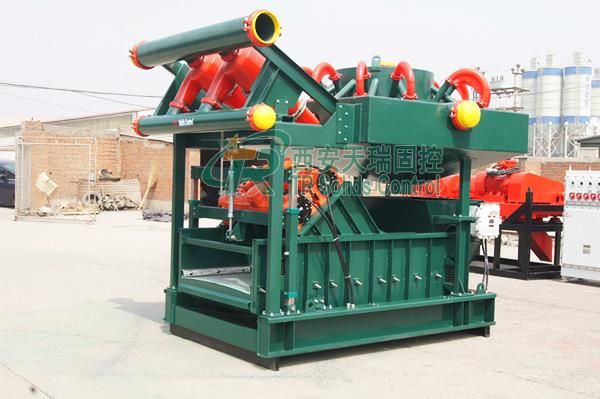

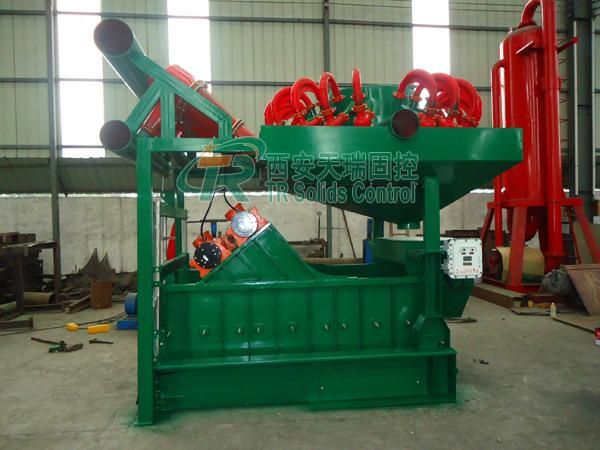

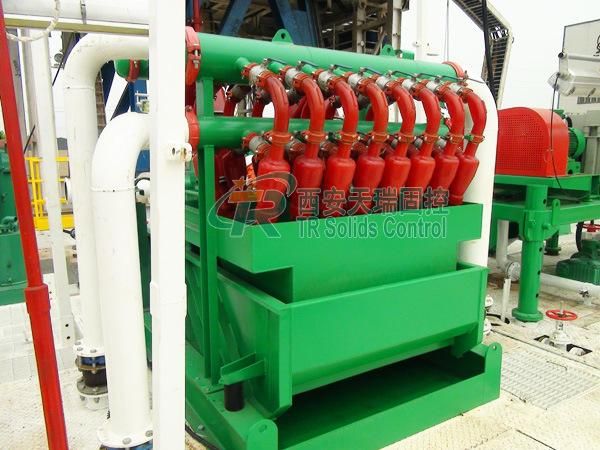

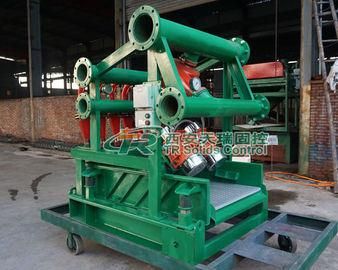

Oilfield Drilling Mud Cleaning Equipment with Mud Desander Desilter

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Mud Cleaner
  • Working Pressure：0.25-0.4MPa

Base Info

  • Model NO.：TRQJ250*3S-100*20N
  • Outlet Size：DN250mm
  • Inlet Size：DN200mm
  • Separation Point：15-44um
  • Bottom Shaker：Trzs703,N,a
  • Transport Package：Pallet or Wooden Case
  • Specification：2419*2150*2147mm
  • Trademark：TR Solids Control
  • Origin：China
  • Production Capacity：30 Sets , Month

Description

ModelTRQJ200×1S-100×4NTRQJ200×2S-100×8NTRQJ250×2S-100×12NTRQJ25×3S-100×20NCapacity60m³/h120m³/h240m³/h320m³/hDesander Cyclone Specs8"10"Desander Cyclone Qty1223Desilter Cyclone Specs4"Desilter Cyclone Qty481220Working Pressure0.25~0.4mpaInlet SizeDN125mmDN150mmDN150mmDN200mmOutlet SizeDN150mmDN200mmDN200mmDN250mmSeparation Point15μm~44μmBottom ShakerTRZS60TRZS752TRZS752TRZS703Dimension1.51×1.16×2.0m1.835×1.23×1.81m1.835×1.23×1.81m2.42×2.15×2.15mWeight600kg980kg1250kg2350 kgRemarkAll mud cleaners could be customized without bottom shaker.



Oilfield Drilling Mud Cleaning Equipment with Mud Desander DesilterOilfield Drilling Mud Cleaning Equipment with Mud Desander DesilterOilfield Drilling Mud Cleaning Equipment with Mud Desander Desilter
Oilfield Drilling Mud Cleaning Equipment with Mud Desander Desilter



Application



TRQJ mud cleaner is widely used in trenchless HDD, tunneling construction, city bored piling, oil & gas drilling, Drilling Waste Management, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, mining, Oil Sludge Dewatering Systems, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.

http://trsolidscontrol.en.made-in-china.com


Why Choose Us
1) Experience in casting for over 15 years and served customers all around the world.
2) Standard material according to technical drawing
3)Stable quality
4) On-time delivery
5) Competitive price and good service
6) Positive customer feedback from domestic and international market
7) International advanced-level equipment
8) OEM service, your demand is our pursued.
9) ISO9001:2008 and TS16949 quality control


FAQ
1. What are the main materials of your products?
We are focused on casting and processing of grey iron and ductile iron products.
2. What is your MOQ?
We will arrange production based on your drawings and deliver your products as per your requirements. We will do our best to meet your demands.
3. What are your advantages?
1) Professional staff
2) 24 years of casting experience
3) Rigorous quality control system
4) On-time delivery rate is over 98%
