• Size：4615*3276*2688mm
• Certificate：ISO
• Power：1193,1600
• Function：Cooling The Drill Bit and Cleaning The Wellbore
• Pressure：35MPa
• Transport Package：Common Export Packing
• Specification：standard
• Trademark：XINHUAFA
• Origin：Cn
• HS Code：84134000
• Production Capacity：500 Sets , Year

Basic Info.

Size 4615*3276*2688mm Certificate ISO Power 1193/1600 Function Cooling The Drill Bit and Cleaning The Wellbore Pressure 35MPa Transport Package Common Export Packing Specification standard Trademark XINHUAFA Origin Cn HS Code 84134000 Production Capacity 500 Sets / Year

Product Description

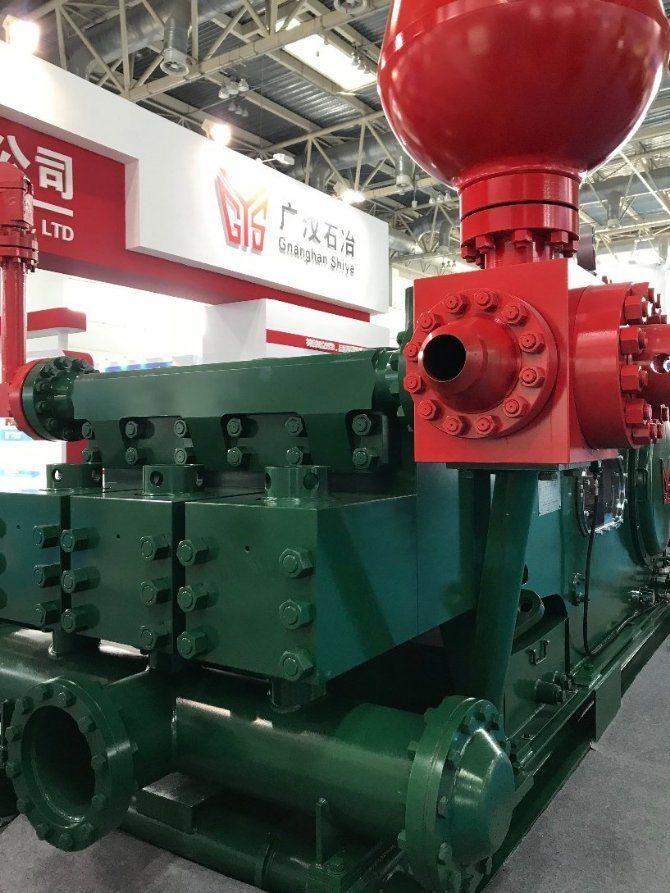

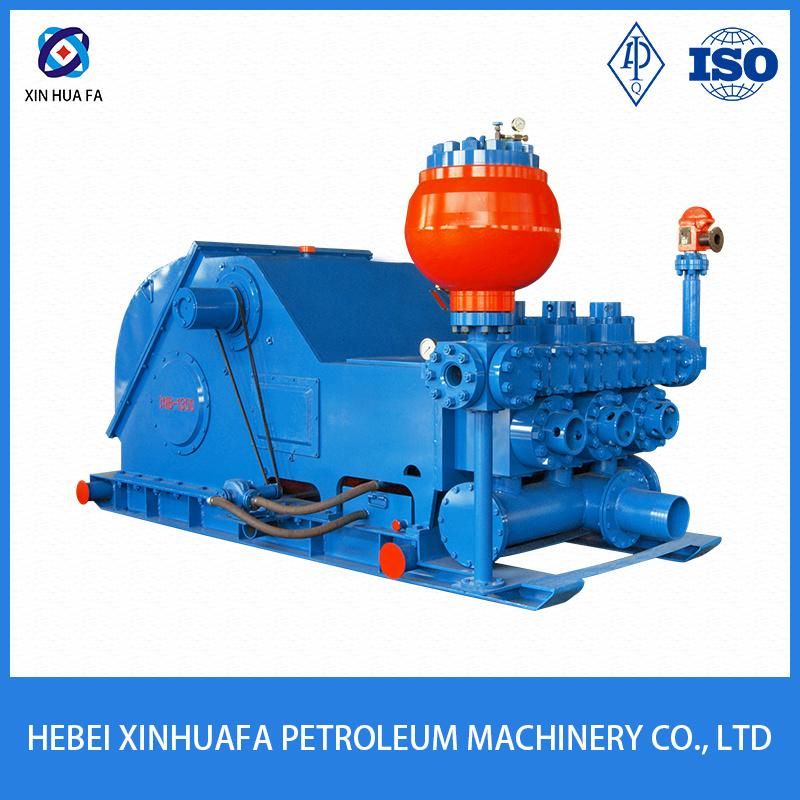

F1000 Bomco Mud Pump for drilling rig

A mud pump or drilling pump is used to circulate drilling mud (also referred to as drilling fluid) downhole during drilling operations. The drilling mud is pumped downhole at pressures up to 7500 PSI through the drill string. It returns back to the surface via the well's annulus.

This drilling mud circulation process performs numerous critical functions which include cooling the drill bit and cleaning the wellbore of drill cuttings. It also provides hydrostatic pressure to prevent formation fluids from entering into the wellbore. Considering this necessary pumping function, drilling pumps are often referred to as the heart of the rig.

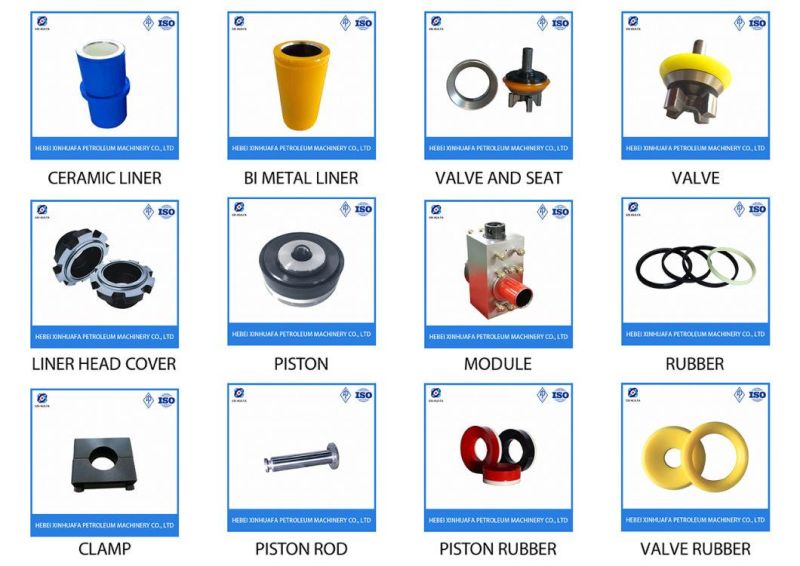

F  Series pump parts detail



Item	F500	F800	F1000	F1300	F1600
Power Rating HP(kw)	500 (373)	800 (597)	1000 (746)	1300 (969)	1600 (1193)
Stroke RatingSPM	165	150	140	120	120
Stroke Length(in /mm)	7.5" /190.5	9"/228.6	10"/254	12"/305	12"/305
Gear Ratio	4.286	4.185	4.207	4.206	4.206
Inlet Dia. (in/mm)	8"/203	10"/254	12"/305	12"/305	12"/305
Outlet Dia. (in)	4" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi
Valve	API5#	API6#	API6#	API7#	API7#
Max. Liner (in/mm)	6-3/4"/170	6-3/4"/170	6-3/4"/170	7"/180	7"/180
Overall Dimension L*W*H(mm)	3658*2709 *2231	3963*3025 *2410	4267*3167 *2580	4617*3260 *2600	4615*3276 *2688
Approx. Weight (kg)	9770	14500	18790	24572
