• Model NO.：DST-5
• Range of Master Tong：2 3,8"~3 1,2"
• Range of Backup Tong：2 3,8"~4 1,2"
• Rate Torque of High Gear：1100n.M
• Rated Troque of Low Gear：3000n.M
• Rated Speed of High Gear：90 R,Min
• Rated Speed of Low Speed：30 R,Min
• Max. Flow：80L,Min
• Dimension：650*430*550mm
• Transport Package：Plywood Box
• Specification：XQ89
• Origin：Jiangsu China
• HS Code：8413910000
• Production Capacity：1000units Per Year

Basic Info.

Model NO. DST-5 Range of Master Tong 2 3/8"~3 1/2" Range of Backup Tong 2 3/8"~4 1/2" Rate Torque of High Gear 1100n.M Rated Troque of Low Gear 3000n.M Rated Speed of High Gear 90 R/Min Rated Speed of Low Speed 30 R/Min Max. Flow 80L/Min Dimension 650*430*550mm Transport Package Plywood Box Specification XQ89 Origin Jiangsu China HS Code 8413910000 Production Capacity 1000units Per Year

Product Description

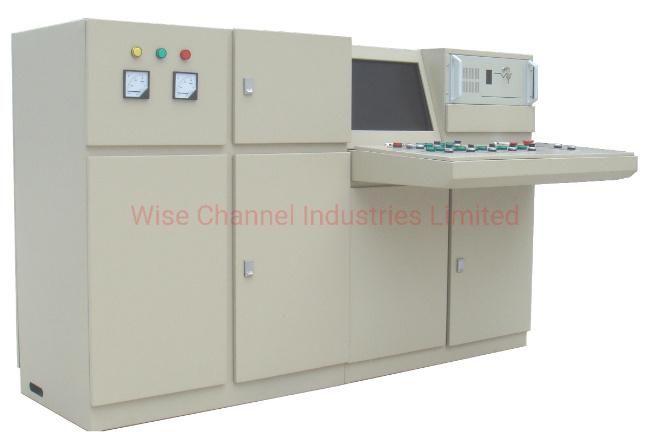

DST-5 pressure, thrust, torque, temperature and speed test bench is a multi-functional data processing, control and recording system, suitable for the type test, routine test, performance test and factory test of petroleum machinery products.Can set the relevant parameters of the test process, can detect, display, record and control the test process parameters;the system adopts the industrial control machine, LCD display as the real-time display test process diagram; Control parameters can be set according to the test requirements, and the data generated by each test process can be stored on the disk for future inquiry.
















Main funcution:

1.Suitable for the type test, routine test and predelivery test of petroleum machinery products.
2.With pressure test, tension test, torque test, temperature rise test and speed test.
3. Test equipment includes hanging tongs, tubing tongs, casing tongs, drill pipe tongs, hydrauic powert station, hydraulic cylinder, EZY-Torque, Elevator, cement head, faucet.
4.The test process can set parameters, display, control, record and print the test process parameter report.
5.The system has the emergency stop function.
6.With the automatic variable, the automatic unloading control mode.
7.Unvariable speed control can be realized according to test requirements.
8.Display the diagram of the test process parameters in real time.
9.Test process data storage.




Main technical parameters:

working voltage:          220V  AC  ±15%   50 to 60HZ
consumed power :          500W  MAX
Max. detection torque:      200 KN.M
Max.detection pull:      500,000 KN
Max.detection pressure:      150 MPa
Max.detection temperature:      300 ºC
Speed detection range:      0~5000 r/min
Detection accuracy:          0.1%
