New Arrival Mud System Circulating System Factory Mud System Circulating System
Xi'an International Mechanical Factory Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Year
- Certification：CE, Mud System Circulating System
- Power Source：Electric
- Operation Pressure：Atmospheric Pressure
- Material：Stainless Steel
Base Info
- Model NO.：IMF- Mud system circulating system
- Type：Mud System Circulating System
- Product Name：Mud System Circulating System
- Core Components：Shake Shaker, Mud Circulatory Solid Control System
- Showroom Location：None, Hot Sale Mud System Circulating System
- Types：Skid-Mounted,Mobile,Cryophylactic
- Warranty of Core Components：1 Year
- Place of Origin：Shaanxi,China
- Condition：New
- Power (Kw)：380V,220V
- Key Selling Points：High Productivity
- Marketing Type：New Product 2021
- Application：Drilling
- Machinery Test Report：Provided
- Video Outgoing-Inspection：Provided
- After Warranty Service：Video Technical Support, Online Support, Spare PAR
- After-Sales Service Provided：No Overseas Service Provided
- Transport Package：1 Set Per Bag. or Customized Packaging.
- Specification：20, 40, 80
- Trademark：IMF
- Origin：China
- Production Capacity：1000kg,Hour
Description
Mud System Circulating System Supplier,Mud System Circulating System Factory,Mud System Circulating System
Basic Information of Mud system circulating system
Solids Control System is also called drilling fluid purification system, mainly used for solids control and solid-liquid
Application of Mud system circulating system

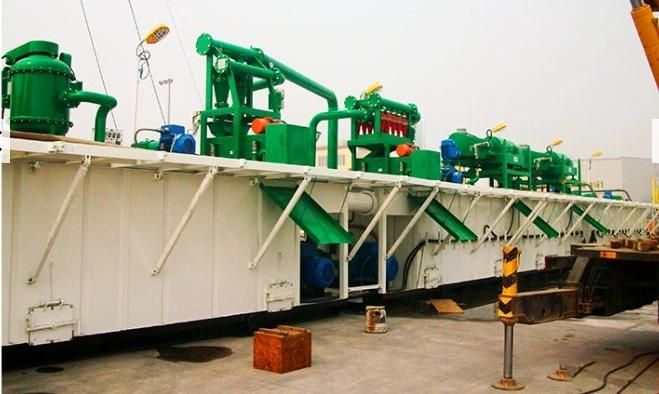

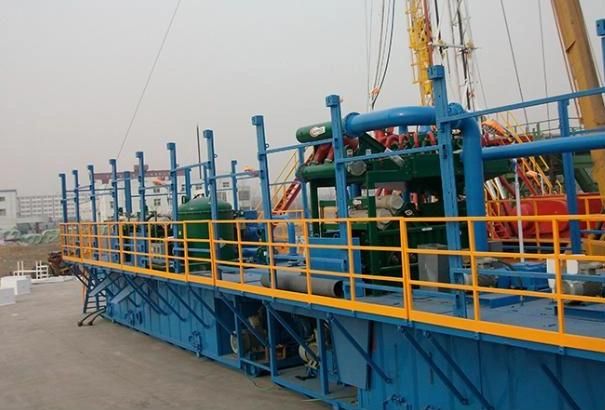

Solids control system assembles five-stage solids control equipment, security equipment and other auxiliary equipment via manifolds according to their separation effects in an orderly way. Mud tank serves as a carrier and drilling fluid carrying
cuttings directly enters shale shaker through a diverter. The shale shaker separates big cuttings particles from drilling fluid
and the treated drilling fluid containing smaller particles passes through screens and enters the mud tank. If mud contains
bubbles, self-priming device of vacuum degasser can suction the mud into the degasser for mud- gas separation. The degassed mud is then fed to desander and desilter via centrifugal pump. Solid- liquid separation of mud is continued in cyclones by using the principle of centrifugal sedimentation. Solid particles within 44~74 μm separated by desander and those within 15~44 μm separated by desilter are discharged and the mud enters the mud tank under centrifuge through manifolds connecting with cyclones for the last stage separation. Submersible slurry pump (screw pump) feeds mud to decanter centrifuge and solids particles over 2~15μm in diameter are separated by the centrifuge. Each mud tank is connected by using built-in pipes. During drilling operations, drilling fluids of different separation effects can be pumped for use as needed. Jet mud mixer on mud tank can prepare mud as needed.
New Arrival Mud System Circulating System Factory Mud System Circulating System
»»» CLICK HERE TO SEE MORE STOCK
Xi'an International Mechanical Factory Co., Ltd., was established in May 2010. It is a professional supplier of Packaging Machine, Chemical Machinery, Pharmaceutical Machinery, Food & Beverage Machinery, Feed Processing Machine. It has absolute advantage because of strong research strength, modern management system and high-quality marketing team. Now we have 3 GMP standard workshop, Meanwhile, the factory is equipped with the researching and quality inspection centre, with strong technology research and development strength. We also have 3 salesdepartments over 30 people and sell our products all over the world. For customer's needs, OEM service is also acceptable. If you have a good idea in new product production but lack of laboratory device and human resource, we are glad to solve this problem for you. Sincerely hope to strengthen exchanges and cooperation with friends from both home and abroad.
Q: Where is your factory ? How can I visit your factory ?
A: Our factory is located In Xi'an , Shaanxi . We are warmly welcome you visit our Factory if you have a travel plan.
Q: How can I know your machine is designed for my product ?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.
Q: How can I trust you for the first time business ?
A: Please check our business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of the transaction.
Q: How about the after service and guarantee period ?
A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How do we contact you ?
A: Please leave a message and click "send" to send us an inquiry.
