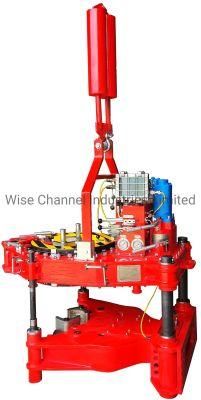

Yq89-16W No Impression Hydraulic Power Tong for Workover
Wise Channel Industries Limited- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO 9001:2000, ISO 9001:2008
- Power Source：Hydraulic
- Operation Pressure：20MPa
- Applicable Medium：Hydraulic Oil
Base Info
- Model NO.：YQ89-16W
- Structure：Vertical
- Material：Alloy
- Pipe Range：2 3,8".2 7,8".3 1,2"
- Output Troque-High Gear：4400 FT·lb,6000 N·m
- Output Troque-Low Gear：11800 FT·lb,16000 N·m
- Speed Range-High Gear：26rpm
- Speed Range-Low Gear：10rpm
- Rated Oil Supply：2000psi 40gpm , 14 MPa 120 Lpm
- Weight：1763 Lb , 800kg
- Dimension：1100×750×850mm
- Transport Package：Plywood Box
- Origin：Jiangsu China
- HS Code：8413910000
- Production Capacity：100units Per Year
Description
Speed range High gear:26RPM High gear :18RPM High gear :12RPM Low gear:10RPM Low gear :5 RPM Low gear :4 RPM 4 Rated oil supply 2000PSI 40GPM / 14 MPa 120 LPM 2000PSI 40GPM / 14 MPa 120 LPM 2000PSI 40GPM / 14 MPa 120 LPM 5 (L×W×H) Dimension 43.3″×29.5″×33.5″ /1100×750×850mm 61″×39.4″×69.3″ /1550×1000×1760mm 57.5″×34.6″×72″ /1460×880×1830mm 6 Weight 1763 lb / 800 kg 2976 lb /1350kg 3196 lb / 1450 kg
Table for pipe size and buckle torque
Pipe size23/8″ 27/8″ 31/2″ 4″ 41/2″ 5″ 51/2″ 145.6 7″ Φ60.3 Ф73 Ф89 Ф101.6 Ф114.3 Ф127 Ф139.7 Ф145.6 Ф177.8 Maximum torque 3000
N·m 5000
N·m 16000
N·m 19000
N·m 22000
N·m 25000
N·m 30000
N·m 30000
N·m 30000
N·m
No-makring dies
Material:Synthetic high strength, tensile and friction resistant fibers.Braided impregnated plastics with high friction coefficient
Dies hardness:HS80(Shore hardness )
Marking depth after operation:No marking
YDZ160-37WStepless variable hydraulic power station
Equipment features
NKY- C8ExTouch-screen explosion-proof torque control recorder
NKY-C8Ex touch screen explosion-proof torque control recorder is used with hydraulic power tong to monitor the twisting torque of pipe joint, to ensure that the twist torque control within the API standard, to avoid the buckle or incincer damage caused by pipe joint tightening, and fully meet the strict standards and requirements when the pipe into the well.
NKY-C8Ex touch screen explosion-proof torque control recorder is mainly composed of touch screen torque display recorder, power adapter, torque sensor, solenoid unloading valve and other parts. With simple structure and low failure rate, it is suitable for places with explosion-proof requirements.
NKY-C15ExExplosion-proof wireless power-free torque display control recorder
Function and features
Ex d ib IIB T6 Gb,,.Explosion-proof, explosion-proof grade is Ex d ib IIB T6 Gb, suitable for dangerous places with flammable and explosive gas.
Equipped with uninterrupted power supply, and use the energy of hydraulic circuit to supplement the power, you can work for a long time, without external power cord, to achieve a real sense of wireless&without electricity.
Cable is no need to be arranged on site, and the production site is clean and safe.
Adopt stainless steel material, has strong structure.
Electrical input and output circuits are equipped with photoelectric isolation gate .
The display is thickened with 10mm of tempered glass.
Equipped with both manual and automatic control methods.
Two way of measurement: N·m and ft·lbs.
Oil circuit interface adopts 1 ", 1 ¼" NPT.
Table for pipe size and buckle torque
Pipe size
N·m
N·m
N·m
N·m
N·m
N·m
N·m
N·m
N·m

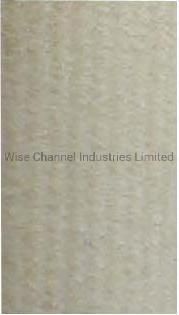

No-makring dies
Material:Synthetic high strength, tensile and friction resistant fibers.Braided impregnated plastics with high friction coefficient
Dies hardness:HS80(Shore hardness )
Marking depth after operation:No marking

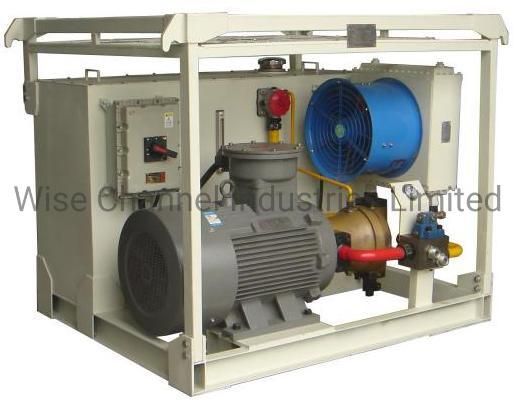

YDZ160-37WStepless variable hydraulic power station
Equipment features
- Infinitely variable speeds
- Set up hanging nacelle
- Pressure interface thread: NPT 3/4" Return oil interface thread: NPT 1"
- Explosion-proof junction box

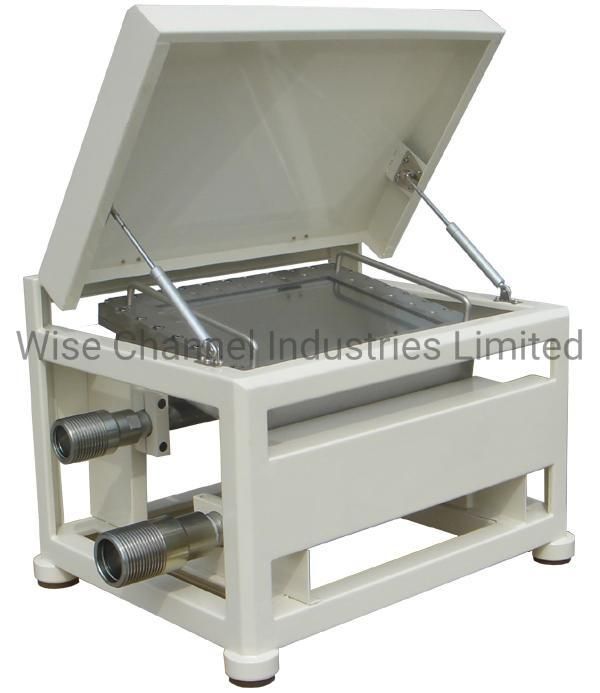

NKY- C8ExTouch-screen explosion-proof torque control recorder
NKY-C8Ex touch screen explosion-proof torque control recorder is used with hydraulic power tong to monitor the twisting torque of pipe joint, to ensure that the twist torque control within the API standard, to avoid the buckle or incincer damage caused by pipe joint tightening, and fully meet the strict standards and requirements when the pipe into the well.
NKY-C8Ex touch screen explosion-proof torque control recorder is mainly composed of touch screen torque display recorder, power adapter, torque sensor, solenoid unloading valve and other parts. With simple structure and low failure rate, it is suitable for places with explosion-proof requirements.

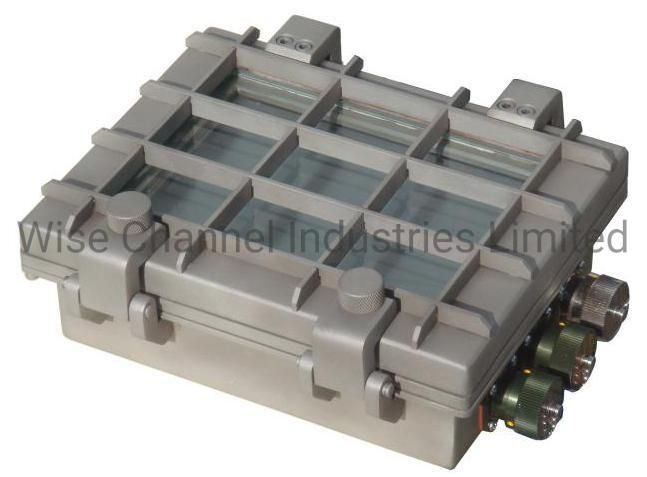

NKY-C15ExExplosion-proof wireless power-free torque display control recorder
Function and features
Ex d ib IIB T6 Gb,,.Explosion-proof, explosion-proof grade is Ex d ib IIB T6 Gb, suitable for dangerous places with flammable and explosive gas.
Equipped with uninterrupted power supply, and use the energy of hydraulic circuit to supplement the power, you can work for a long time, without external power cord, to achieve a real sense of wireless&without electricity.
Cable is no need to be arranged on site, and the production site is clean and safe.
Adopt stainless steel material, has strong structure.
Electrical input and output circuits are equipped with photoelectric isolation gate .
The display is thickened with 10mm of tempered glass.
Equipped with both manual and automatic control methods.
Two way of measurement: N·m and ft·lbs.
Oil circuit interface adopts 1 ", 1 ¼" NPT.
