• Model NO.：7" *8 3,4"
• Sample：Available
• Sizes：4 1 ,2"-20"
• Color：Red,Black
• ODM：Available
• OEM：Workable
• Markings：Available
• Length：250mm
• Blades：5PCS
• Transport Package：Wood Cases
• Specification：4 1,2"-20"
• Trademark：zs
• Origin：Henan
• HS Code：843143100
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 7" *8 3/4" Sample Available Sizes 4 1 /2"-20" Color Red/Black ODM Available OEM Workable Markings Available Length 250mm Blades 5PCS Transport Package Wood Cases Specification 4 1/2"-20" Trademark zs Origin Henan HS Code 843143100 Production Capacity 10000PCS/Month

Product Description

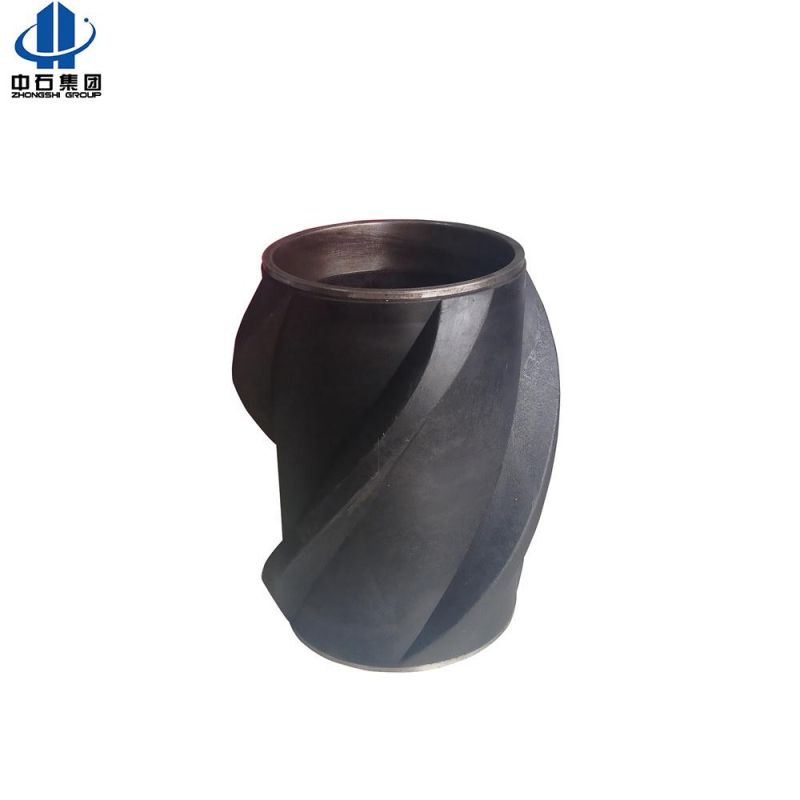

             Composite Thermoplastic Solid Body Rigid Casing Centralizer


1.Description:


Composite Casing Centraliser is the ultimate in down-hole centralisation, offering field proven lower friction coefficients leading to superior drag and rotational torque reduction. High abrasion resistant proprietary engineered polymer ensures maximum stand-off at TD. Robust enough to meet the challenges of today's most demanding wells.




Model(in)	Hooping In-Dia.(mm)	Hooping  thickness  (mm)	Hooping height(mm)	Total Length(mm)	Max. Out-Dia.(mm)	Spring  Pieces
5-1/2*8-1/2	142-148	3-5	90-120	650±50	225±5	5
7*9-5/8	181-186	3-5	90-120	650±50	255±5	6
7*8-1/2	181-186	3-5	90-120	650±50	235±5	6
8-5/8*12-1/4	223-228	3-5	90-120	650±50	330±5	8
9-5/8*12-1/4	250-255	3-5	90-120	650±50	330±5	8
10-3/4*12-1/4	274-276	3-5	90-120	650±50	330±5	9
13-3/8*17-1/2	342-347	3-5	90-120	650±50	450±5	11
18-5/8*24	476±1	3-5	90-120	600±50	610±5	12
20*26	510±1	3-5	90-120	600±50	660±5	12

1.Low and Ultra Low Friction Factors - enables the installation of casing, screen and completion equipment in highly deviated and horizontal extended-reach wellbores.

2.Low wear and material loss -advanced polymer material formulations resulting in low friction factors consequently result in low wear properties

3.Zero corrosion -100% metal free construction -completely removes the risk of contamination to carbon or expensive corrosion resistant alloy (CRA) tubulars and completion equipment












4.Reduce total well construction costs -eliminate the need for high torque casing connections and reduce or remove requirement for expensive synthetic and oil based downhole fluids.

5.High Impact and Ultra High Impact resistance -capable of withstanding harsh open-hole casing and tubular running operations

6.Light weight -safer to handle and install than steel or alloy centralisers.

7.Reduced freight and transport costs.

8.Specific Outside Diameter's can be accommodated -composite material can be machined down to meet unusual or specialized downhole applications.
