• Model NO.：5 1,2"* 8 1,2"
• Sample：Available
• Size：4 1 ,2"-20"
• Drawings：Available
• Markings：Available
• Color：Black
• Height：Based on Request
• Coatings：Teflon
• Blades：5PCS
• Package：Wood Cases
• Transport Package：Wood Cases
• Specification：4 1,2"-20"
• Trademark：zhongshi
• Origin：Henan, China
• HS Code：843143100
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 5 1/2"* 8 1/2" Sample Available Size 4 1 /2"-20" Drawings Available Markings Available Color Black Height Based on Request Coatings Teflon Blades 5PCS Package Wood Cases Transport Package Wood Cases Specification 4 1/2"-20" Trademark zhongshi Origin Henan, China HS Code 843143100 Production Capacity 10000PCS/Month

Product Description

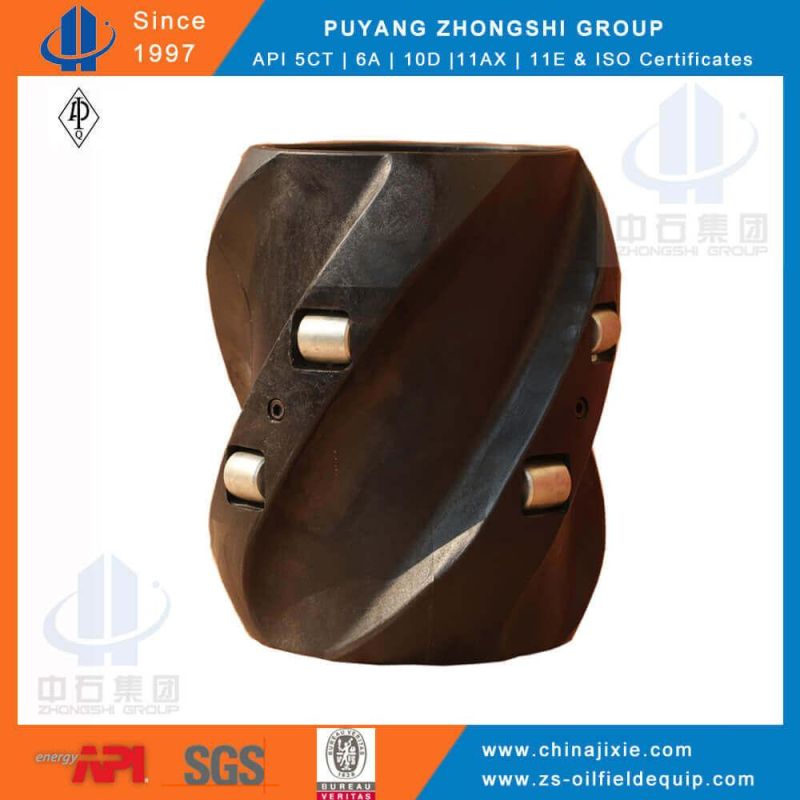

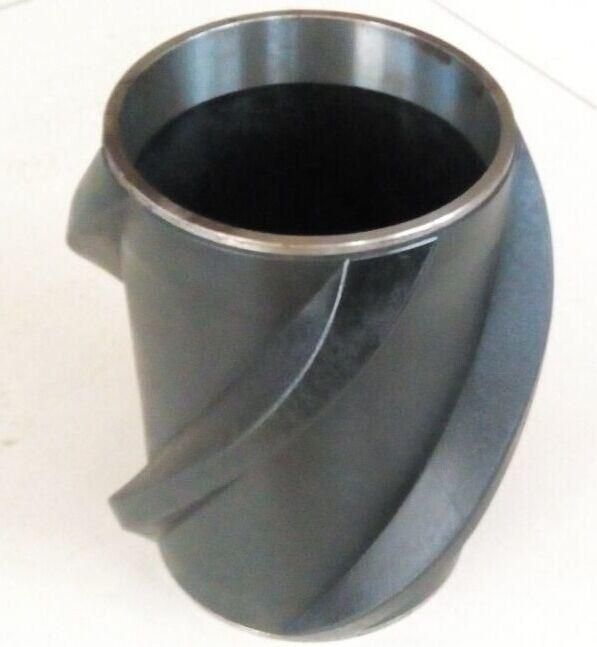

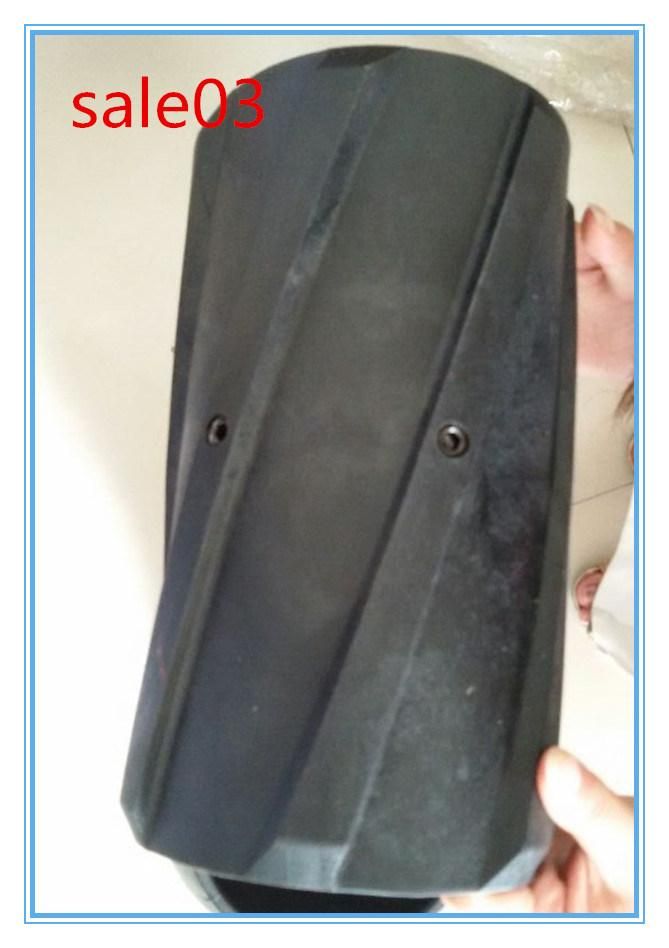

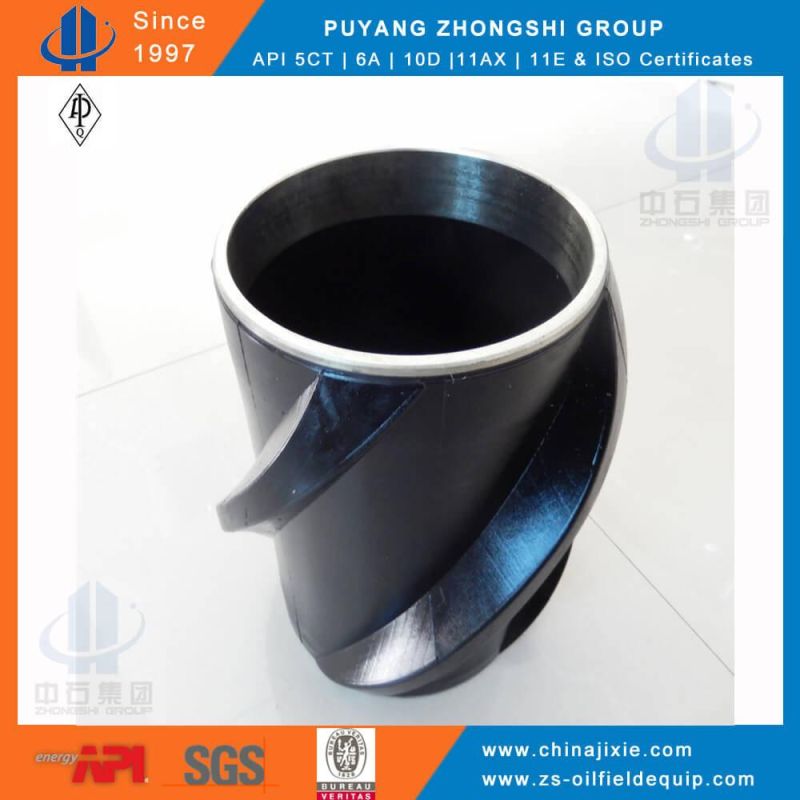

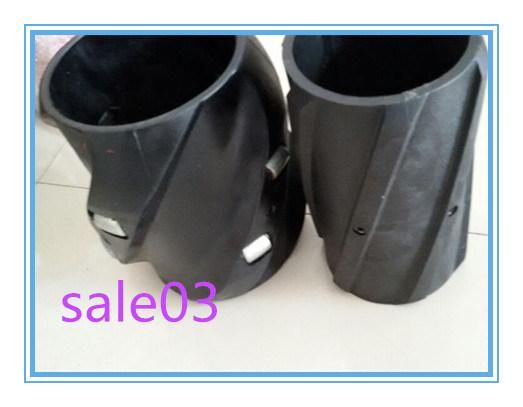

  7inch thermoplastic casing centralizer with coating


Composite Casing Centraliser is the ultimate in down-hole centralisation, offering field proven lower friction coefficients leading to superior drag and rotational torque reduction. High abrasion resistant proprietary engineered polymer ensures maximum stand-off at TD. Robust enough to meet the challenges of today's most demanding wells.

Composite Materials:
- Moulded during high pressure high temperature process
- Spiral Blades 22-25° and melon shaped
- Passive Straight Blades 5° and melon shaped
- Patented Anti-Swage Rings incorporated in each end
- Generous By-Pass Area provided
- Numerous Pipe x Hole size configurations available
- Low Weight
- Premium Self-Aligning Stop Collars also available
specifications for reference:

Model(in)	Hooping In-Dia.(mm)	Hooping  thickness  (mm)	Hooping height(mm)	Total Length(mm)	Max. Out-Dia.(mm)	Spring  Pieces
5-1/2*8-1/2	142-148	3-5	90-120	650±50	225±5	5
7*9-5/8	181-186	3-5	90-120	650±50	255±5	6
7*8-1/2	181-186	3-5	90-120	650±50	235±5	6
8-5/8*12-1/4	223-228	3-5	90-120	650±50	330±5	8
9-5/8*12-1/4	250-255	3-5	90-120	650±50	330±5	8
10-3/4*12-1/4	274-276	3-5	90-120	650±50	330±5	9
13-3/8*17-1/2	342-347	3-5	90-120	650±50	450±5	11
18-5/8*24	476±1	3-5	90-120	600±50	610±5	12
20*26	510±1	3-5	90-120	600±50	660±5	12

Typically, the plastic, elastomeric and/or rubber material may comprise polytetrafluoroethylene (PTFE), polyetheretherketone, carbon reinforced polyetheretherketone, polyphthalamide, polyvinylidene fluoride, polyphenylylene sulphide, polyetherimide, polyethylene, polysulphone, polyethersulphone, polybutyleneteraphthalate, polyetherketoneketone, polyamides, a rubber & rubber compounds, phenolic resins or compounds, thermosetting plastics, thermoplastic elastomers, thermoplastic compounds or thermoplastic polyester resins.





CHARACTERS:



It makes the casing centralized in wellbore and improves cementing quality.



1.Spiral Vane increase annular turbulence.



2. With the shape of stream-lined, it enables casing run easily in wellbore.



3.Both straight blade and spiral blade are available.



4.The material can be cast steel or cast aluminum or nylon P66.
