• Model NO.：4 1,2"-20"
• Sample：Available
• Drawing：Available
• ODM：Available
• Spec：4 1 ,2"-20"
• Color：Red,Orange,Black
• Markings：Acceptable
• OEM：Available
• Height：Based on Request
• Weight：5-7kg
• Transport Package：Wood Cases
• Specification：4 1,2"-20"
• Trademark：zhongshi
• Origin：Henan, China
• HS Code：843143100
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 4 1/2"-20" Sample Available Drawing Available ODM Available Spec 4 1 /2"-20" Color Red/Orange/Black Markings Acceptable OEM Available Height Based on Request Weight 5-7kg Transport Package Wood Cases Specification 4 1/2"-20" Trademark zhongshi Origin Henan, China HS Code 843143100 Production Capacity 10000PCS/Month

Product Description

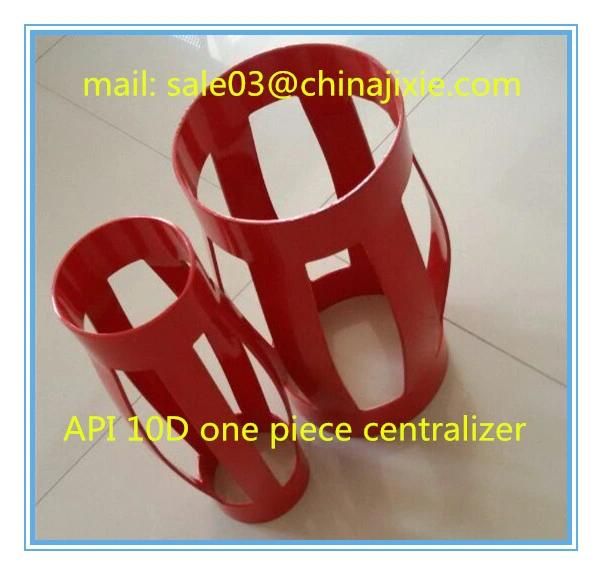

                          API 10D Specified  Silp on Single Piece Centralizers

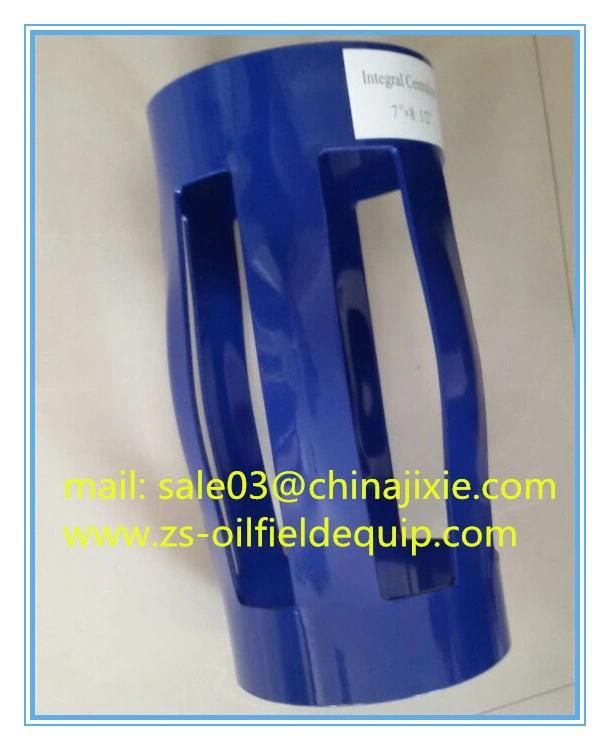

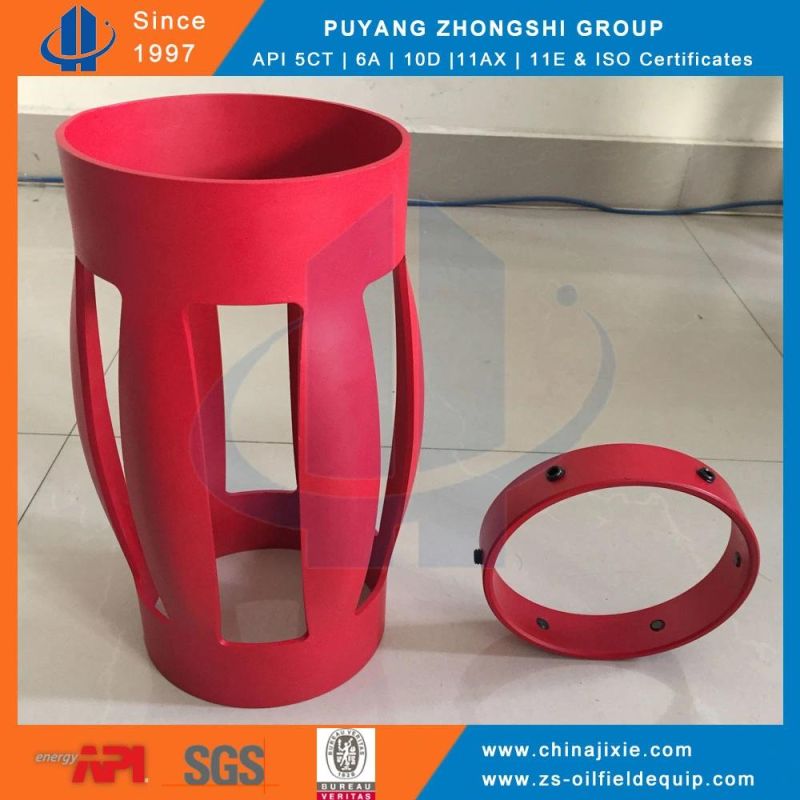

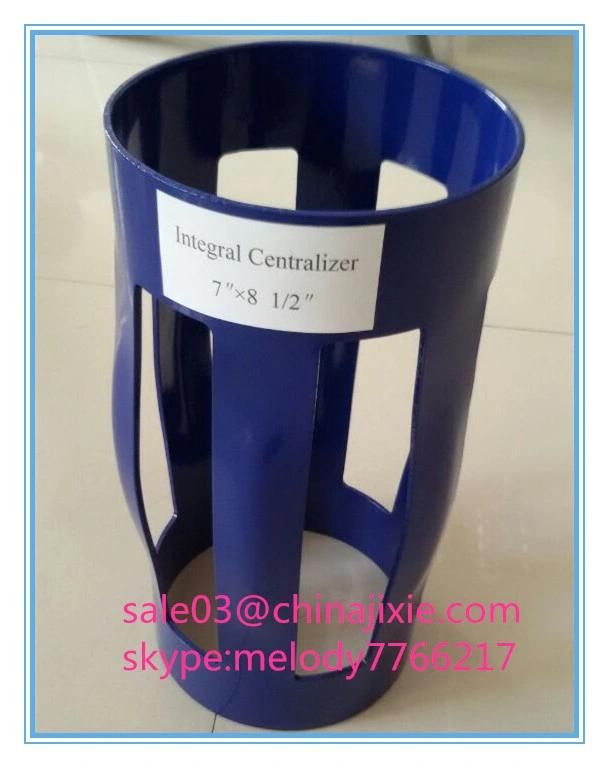

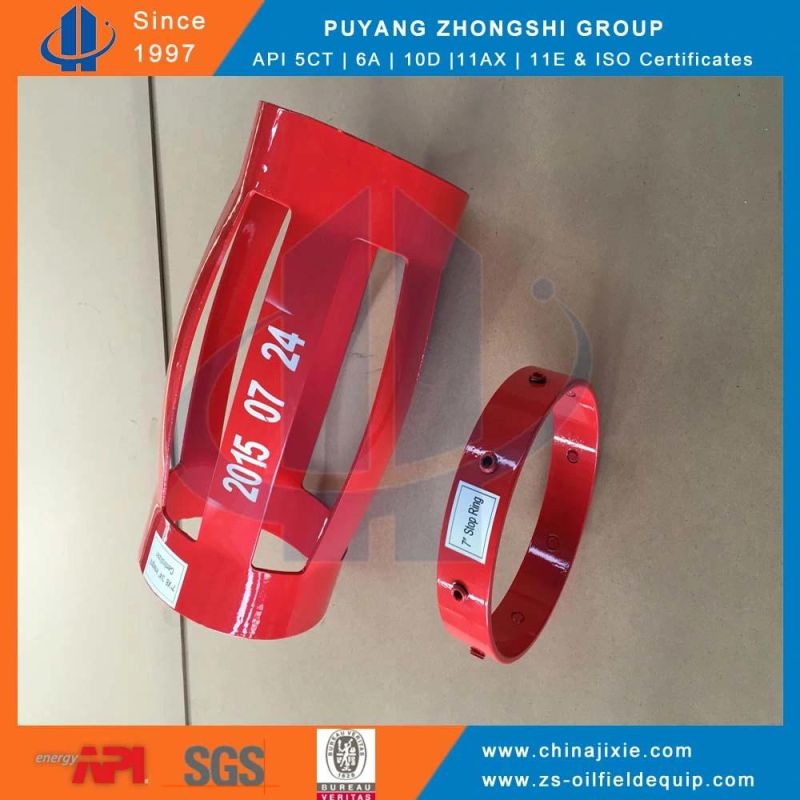

The Single piece centralizer can be installed with 2 stop rings, 1 internal stop ring or casing couplings. The blades, top and bottoms rings are made of one piece to ensure the centralizer s integrity during rig operations.

These are generally shipped in assembled condition only . This Centralizers undergos a special process of rust prevention before powder coating.




PRODUCT NAME  SILP-ON CENTRALIZER

Rating	API Specification 10D and NQA 9001-2008.
Design features	- Smooth bow profile overall - Non-welded - Made to gauge - Integral bow design for increased strength and performance. - Zero weak points, such as hinges, welds, or mechanical interlocks. - Flexible to absorb both axial and radial loading. - Powder coated red finish
Performance	- Zero start and running force with exceptional restoring force. - Improved flow by area and improved pipe rotation. - Low torque and low drag units. - Improved zonal isolation.
Applications	- Used in most well applications and geometries for vertical, horizontal ERD, close tolerance, or under reamed well conditions. - The UROS units are recommended where tight restrictions through previous set casing are encountered; also recommended when increased structural integrity is required. - Specialized in centralization for under reamed hole sections. - Recommended to be run between limit clamps
Sizes available	4 1/2 to 20 in.; custom sizes available.
Minimum hole size	2 7/8 in. (4 in.) hole
Maximum hole size	20 in. (26 in.)

The Single piece centralizers are available in sizes 4½" to 20" . (Any special sizes or combination can available on request).



Characteristics:


1) Designed for High Restoring Force and Low Starting & Running Force

2) End collars are designed with self-locking action, which are easy to assemble.

3) Undergo special coating process to prevent from rust

4) Can be shipped in half assembled condition for economy in shipping and storage costs.

5) Specification: 4"---20". Any special sizes or combination can available on request.

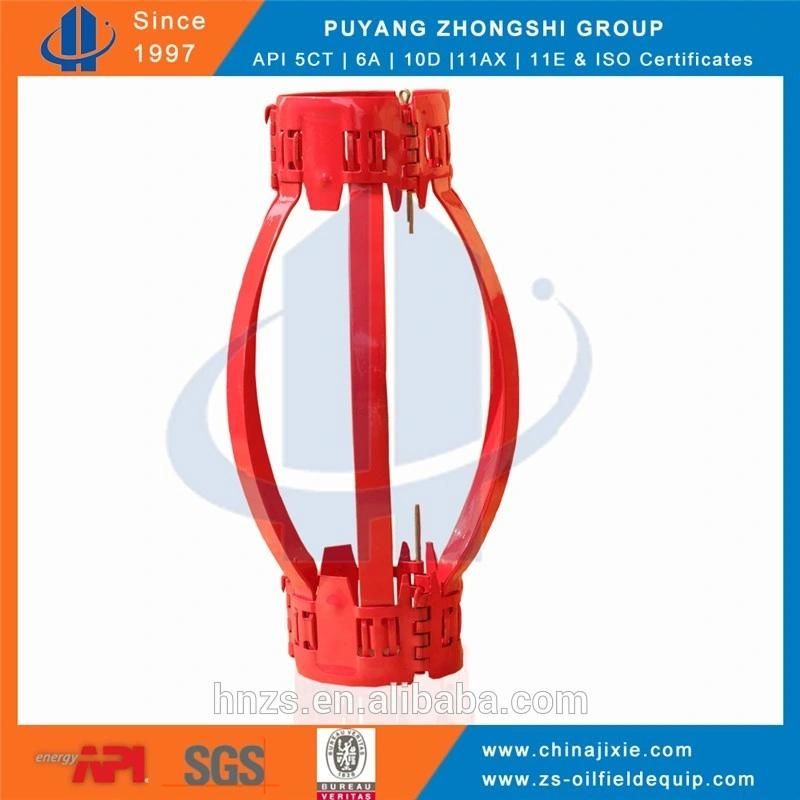

main specifications for spring bow centralizers as follows:

Parameter


Model (in)	Hooping In-Dia. (mm)	Hooping thickness(mm	Total length (mm)	Max.Out-Di (mm)	Amount of spring(mm)
5-1/2" x 8-1/2"	142-148	3-5	650±50	225±5	5
7" x 9-5/8"	181-186	3-5	650±50	255±5	6
7" x 8-1/2"	181-186	3-5	650±50	235±5	6
8-5/8 x 12-1/4"	223-228	3-5	650±50	330±5	8
9-5/8 x 12-1/4"	250-255	3-5	650±50	330±5	8
10-3/4 x 12-1/4"	274-276	3-5	650±50	330±5	9
13-3/8"x17-1/2"	342-347	3-5	650±50	450±5	11
18-5/8"x24"	475-477	3-5	600±50	610±5	12
20"x26"	509-511	3-5	600±50	660±5	12
