• Model NO.：APSJ1
• Trademark：BAOLEE
• Origin：China
• HS Code：8431431000
• Production Capacity：10000 Pieces Per Year

Basic Info.

Model NO. APSJ1 Trademark BAOLEE Origin China HS Code 8431431000 Production Capacity 10000 Pieces Per Year

Product Description

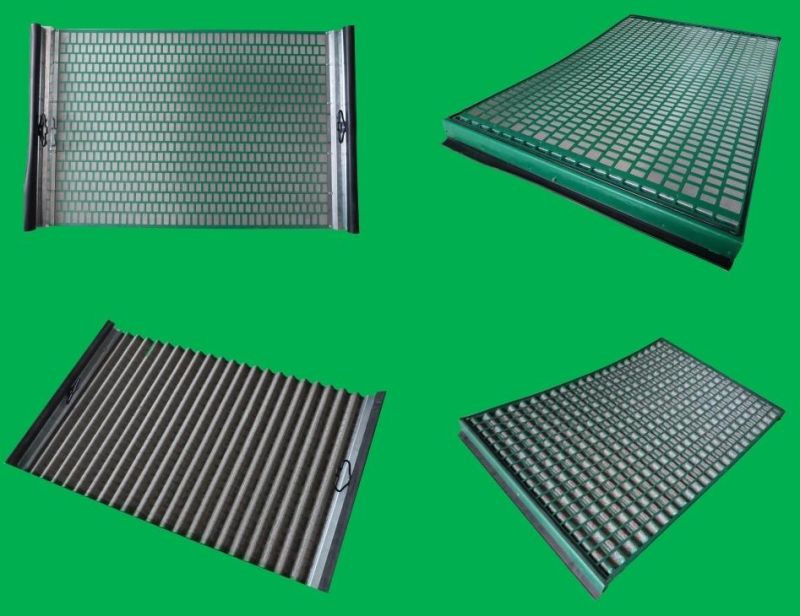

Hook Stirip Flat Screen Series

Hook strip flat screens the series applied most widely at present, Main feature as follows:

1. These products screen panel are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate combined together. Because of different mesh size, and steel backing plate, on the condition of using intensity, to get the best and most effective filtering area.
2. The above of thin wire cloth with middle and the bottom of the thick wire cloth, combined with different thickness steel backing plate together, infinitely enhance the whole screen use intensity. Because of different model and clients requirement, can choose different steel backing plate form, for example hexagonal, rectangular, square and so on, supporting the above different screen cloth, the whole cloth is divided into independent small surfaces, prevent the part excessive expansion damaged, better extend the use lifetime.

Screen Common Model

Modle	Brand&Model for shaker	Mesh Range	Dimension (Length x Width)	Weight
SJZ-1	FLC2000 PWP	20-325	1053×697mm	4.8KGS
SJZ-2	FLC500 Series PWP	20-325	1050×697mm	6.1KGS
SJZ-3	FLC313M PWP	20-325	846×697mm	4.0KGS
SJZ-4	PWP	20-325	1165×700mm	5.2KGS
