Composite Shake Screen From China Manufacturer
Zhenjiang Boral Machinery and Equipment Co., Ltd.- Manufacturing Process：CNC Milling
- Surface Treatment：Without Processing
- Operation Pressure：Na
- Material：Stainless Steel
- Standard：API
- Transport Package：Wooden Carton
Base Info
- Model NO.：CSS
- Trademark：BAOLEE
- Origin：China
- HS Code：8431431000
- Production Capacity：10000 Pieces Per Year
Description
Basic Info.
Model NO. CSS Trademark BAOLEE Origin China HS Code 8431431000 Production Capacity 10000 Pieces Per YearProduct Description

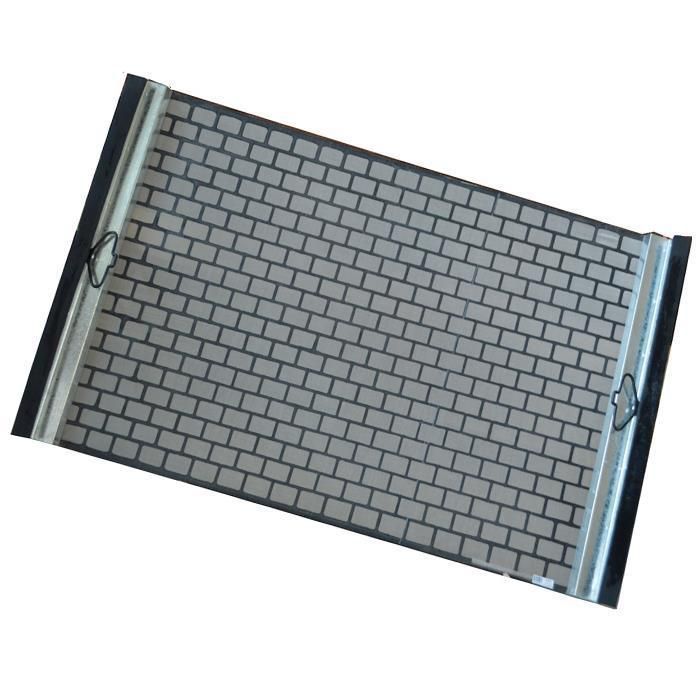

Composite Screen
Composite screen is similar with the hookstrip flat screen on the structure.Main feature as follow:
These products soft screen are constructed with two to four 304 stainless steel wire cloth layers combined compositly together. Without steel backing plate, can get an effective filtering area. The bottom of the thick wire cloth, not only for the above screen cloth better filter, and also support it, save the screen lifetime.
| Model | Brand&Model for shaker | Mesh Range | Dimension (Length x Width) | Weight |
|---|---|---|---|---|
| SJZ-12 | NCS-300×2 | 20-325 | 1040×600mm | 1.6KGS |
| SJZ-13 | ZCN | 20-325 | 1400×460mm | 2.6KGS |
| SJZ-14 | NS-115/2 | 20-325 | 1150×1000m | 2.9KGS |
| SJZ-15 | JSS | 20-80 | 927×914mm | 2.3KGS |
| SJZ-16 | USS | 20-80 | 1524×1219mm | 4.6KGS |
