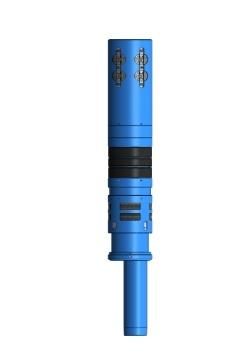

ESPH ELECTRIC SUBMERSIBLE PUMP PACKER

INTRODUCTION

ESPH Packer is a single string, hydraulic-set production packer. This packer is equipped with two 3/8"NPT chemical injection ports and one 1"NPT annulus space gas venting port. The lower cage type bi-directional slip can withstand pressure from two directions. Meanwhile, the pressure driven anchor makes the packer withstand pressure differential from lower side. Releasing and retrieving is done by pulling straight upward on the string. During setting or releasing, no relative movements happen between strings and electric submersible pumps, eliminating wireline stretch damages

FEATURES

• Chemical injection and pressure testing ports can be added without any obvious cost increase

• Fast, simple and economical field maintenance

• Simple mechanism makes retrieval and repair convenient

• Pull straight upward on the string and shear to release. Releasing force is adjustable in field

• Separate ports for gas venting

• No relative movements happen between strings and electric submersible pumps, eliminating wireline stretch damages.

• The bi-directional slip can make the packer withstand pressure from two directions

• High-performance, working pressure 5,000psi, working Temperature 300ºF.

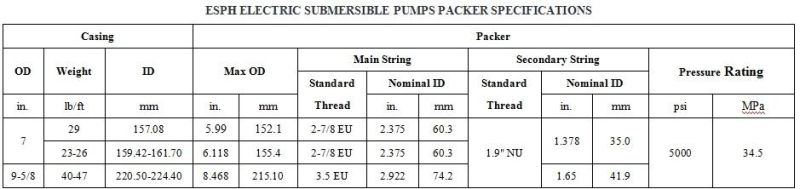

SPECIFICATION SHEET
