• Model NO.：ESPB
• Standard：API 11d1
• Transport Package：Pallet
• Trademark：EXTRONG
• Origin：China
• HS Code：8431431000
• Production Capacity：5000 Pieces Per Year

Basic Info.

Model NO. ESPB Standard API 11d1 Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per Year

Product Description

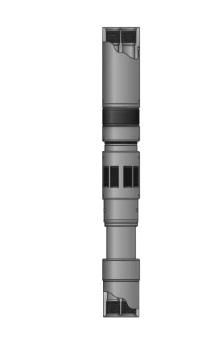

ESPB ELECTRIC SUBMERSIBLE PUMP PACKER

INTRODUCTION

ESPB Packer is a bi-directional-slip, hydraulic retrievable packer with high performance. It's designed to be short and economical for deployment of electric submersible pumps. The packer is equipped with a big bore production mandrel and conventional electric submersible device. No relative movements happen between strings and electric submersible pumps during the setting and releasing. The simple and compact design minimizes the number of parts, making running and servicing easier. The solid body configuration eliminates relative movement between strings and permits optional porting configuration for multiple instrumentation and chemical injection lines, and gas venting.

FEATURES

• Short, economical design suitable for most ESP installations

• Pressure and Temperature rating:2500psi and 300°F

• Reliable hydraulic set mechanism to simplify running operation

• Full bore mandrel can reduce flow restrictions in paying wells

• Simple mechanism makes retrieval and repair convenient

• Fewer parts simplify running and servicing the packer, reduces potential leak paths

• Short compact design easier to make up to the string

• Hydraulic set and straight pull/shear release simplifies operation

• Separate ports for gas venting

• Optional porting configuration for multiple instrumentation and chemical injection lines

• No relative movements happen between strings and electric submersible pumps, eliminating wireline stretch damages

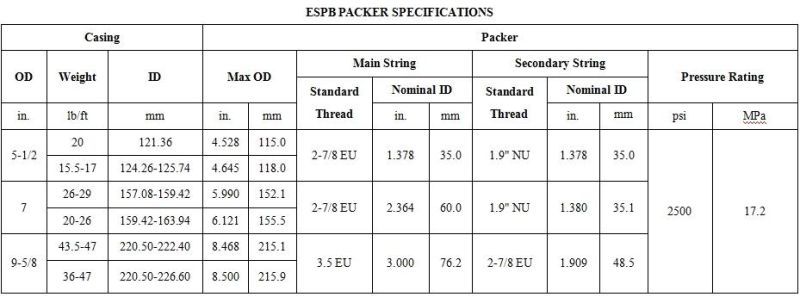

SPECIFICATION SHEET
