• Model NO.：PWS
• Standard：API 14A
• Transport Package：Standard Export Wooden Carton
• Trademark：BAOLEE
• Origin：China
• HS Code：8431431000
• Production Capacity：5000 Pieces,Year

Basic Info.

Model NO. PWS Standard API 14A Transport Package Standard Export Wooden Carton Trademark BAOLEE Origin China HS Code 8431431000 Production Capacity 5000 Pieces/Year

Product Description

Our premium woven screen is designed to resist deformation and maintain reliable sand control even with heavy deformation under down hole conditions, which often occurs in horizontal completion with irregular bore shapes and non-ideal well trajectories.

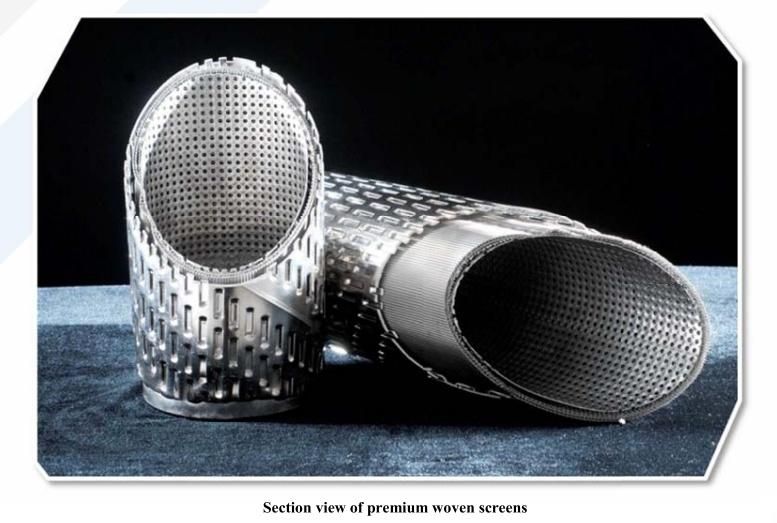

The premium woven screen consists of a base pipe, a multi-layer filter media and a protective shroud made of stainless steel. The filter media which is composed of multiple woven layers with various mesh sizes, were welded after rolling and shaping. The screen is tested to be effective in sand control with deformation ratio as high as 40%, and resistant to corrosion from CO2, CI, H2S and Acids.

Applications:
Sand control in open and cased holes, especially in horizontal wells.

Features:
- 316L stainless steel filter media.
- Reliable sand control with multiple filter layers.
- Resistant to squeezing, bending, remains effective with 40% deformation ratio.
- Large flow aea, low drop down across screen.
- Accurate mesh size control ( manufacturing error < 18um).
- Optimized anti-pluggin features, easy to flush.
- Anti-corrosion, available for acidizing treatments
- Light weight, small OD, easy to run

Benefits:
- Robust downhole performance, anti-deformation.
- Low draw down, enchanced oil production.
- Suitable for sour wells, acidizing wells, etc.

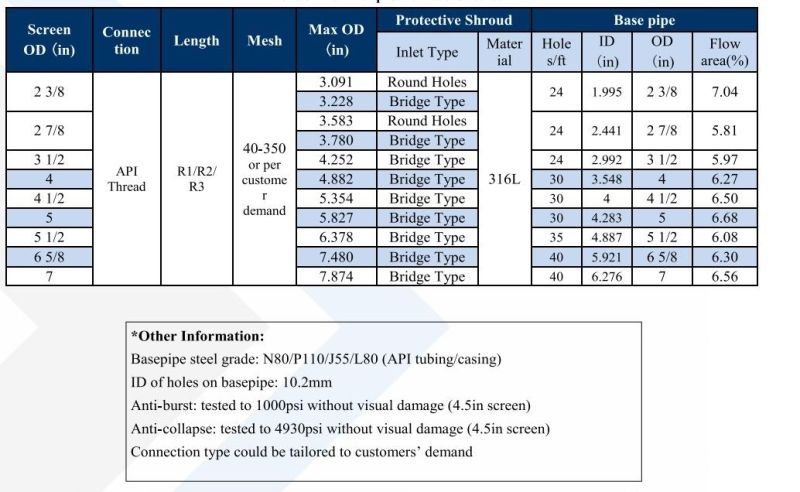

Dimensional Data of Premium Woven Screen
