Product Description

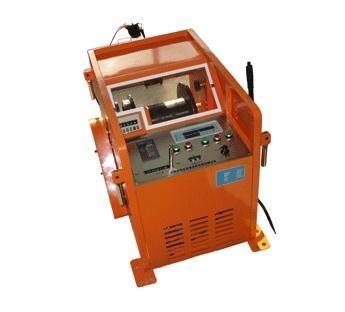

Frequency Conversion Wireline Unit
This skid mounted wireline unit is driven by electric motor, suitable for well logging and salvaging.
The drum could be dismounted to suit different working conditions.
Through worm gear reducer, clutch and driven drum rotation and converter control of the drum rotation speed,well testing can be done.

It comprises power system, automatic spooling system,drum, brake system, hand body, depth and weight indicator etc, easy to operate.

★ Technical Parameter:
Power supply: AC380V,50HZ
Engine power: 1.1kw,1390r/min
Drum capacity: 2000m
Wireline size: 2.2~2.4mm
Max. Line pull: 5KN
Drum speed(RPM): 0~50r/min

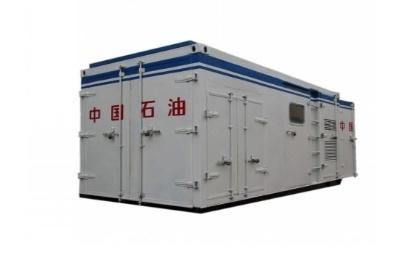

Pull speed: 0.6m/sContainerised Wireline Unit
This containerised wireline unit,is mainly used for oil well logging in harsh environment, such as desert,marsh and offshore. It is a three-compartment closed loop structure comprising of power pack, control cabin and winch system. The whole unit is the container structure. The top is equipped with four lifting brackets with crane.


★ Technical parameter
Dimension: 4700*2200*2500(with air-conditioner) (mm)
Weight: 7500kg(excl. wire)
Power pack: 1160*2100*2010 (mm)
Control cabin:2000*2100*1980 (mm)
Winch: 1420*2100*2010 (mm)Hydraulic system: Closed loop and open loopHydraulic pressure: 20Mpa (Rated)Diesel tank: 200LHydraulic tank: 180LAir conditioner power:1000W/24V
Engine1.Diesel Engine2.Engine Model: 6BTA5.9-C1803.Rated Power: 132kw (2500 r/min)4.Rated Revolution:2500 r/min5.Max.Torque: 750N.m
 Winch systemWireline(E-line) DrumCapacity:6500 m (Ф5.6 mm)Max. line pull:30kNMax. line speed:0-130m/minBrake:Belt brake, compressed air actuated, with air-brake Slickline DrumCapacity:9000 m (Ф2.8 mm)Max. line pull:13kNMax. line speed:0-360m/minBrake:Belt brake, compressed air actuated, with air-brake Note:This skid unit is a base unit where modification or design changes can be made to better fit your wireline or slickline service needs.
