Petroleum Machinery Parts OEM Customize Your Drawing Stainless Steel Durable and Anti-Rust CNC Machinery Manufacturer
Tianjin Junya Precision Machinery Co., Ltd.- After-sales Service：Order Status Is Updated Once Every Two Days
- Warranty：One Year
- Manufacturing Process：Casting
- Surface Treatment：Polishing
- Operation Pressure：Atmospheric Pressure
- Material：Stainless Steel
Base Info
- Model NO.：OEM
- Transport Package：Plastic Bag+Carton+Pallet
- Specification：Depends on Customer′s Requirement
- Trademark：Chinese Brand & Customized your own brand
- Origin：China(Mainland)
- HS Code：7326901900
- Production Capacity：100000 Pieces, Per Month
Description
--- Investment Casting ( Silica Sol Process) ---
Made of stainless steel 304/316 for resistance to corrosion and high temperatures
Investment casting offers unlimited freedom in design and material choices. Typical applications can be found in the automotive, pump and food industry, architecture, and general industrial engineering
BENEFITS:
- Precise tolerances
- Thin walls are possible
- Fine surface structure
- Complex shapes can be achieved without draft angles
- Small marks can be cast very clearly, such as letters or company logos
- Suitable for a wide variety of materials
- Weight: 0.01 - 50 kg
- Casting surface roughness: Ra 0.4 μm
- Maximum dimensions: 500 x 500 x 500 mm
- Casting wall thickness: ≥ 3 mm, locally 1.5 mm can be reached
- Angle tolerances: ± 1°
- The geometric tolerances that are required for the function should be specified in the drawing
- Pickling and passivation
- Electrolytic polishing
- Vibra-polishing
- Electrolytic zinc plating
- Hot-dip galvanising
- Mirror polishing
- Dull polishing
1. Customers provide drawings or samples
↓
2. Project evaluation and quotation
↓
3. Customer decision and contract
↓
4. Mold design (if there is no ready-made mold)
↓
5. Sample making
↓
6. Sample confirmation
↓
7. Mass production
--- We can product for you --- 1. Products that cannot be directly machined into shape (crafts)
2. Products whose machining or other methods are too costly
3. Products whose other casting process fails to meet the technical requirements

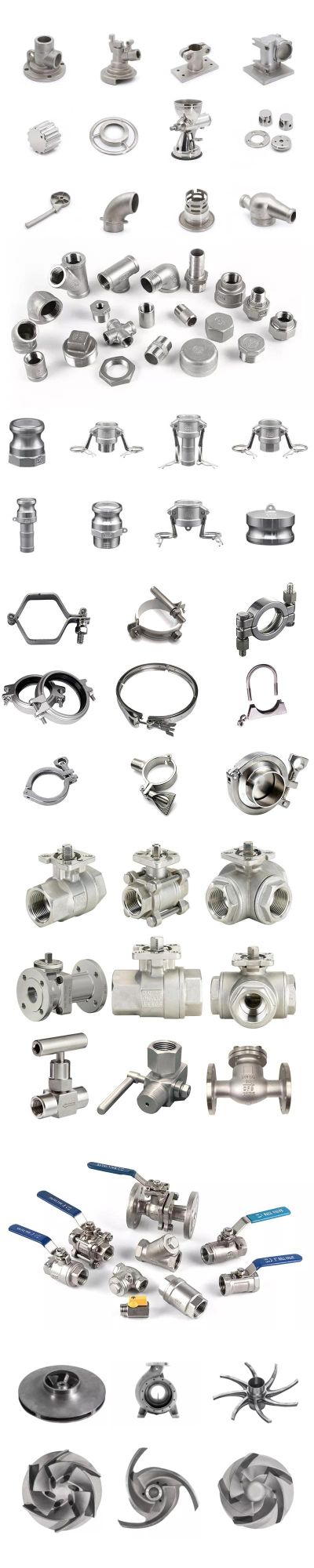

INCLUDING:

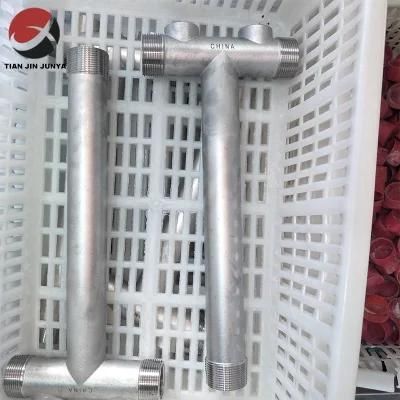

/ Pipe fittings
/ Valves
/ Bathroom: Hinge, glass clamp
/ Marine hardware: pipe clamps, brackets
/ Food machinery accessories: meat grinder, pipe clamp
/ Impeller
/ Pump body
/ Automobile parts and so on.
Investment Casting | Die-Casting | Sand-Casting | Lost Foam | Forging |
| 1. Low volume production runs are cheaper as tooling is less costly. | 1. Tooling costs are far higher, only cost effective for very large volumes. | 1. High cost in large production runs. | 1. Processing costs are higher due to scrap costs, shell building, and pattern handling. | 1. Tooling costs are far higher. |
| 2. Can produce much more complex designs, incorporating design features such as logos. | 2. The parts produced are usually less complex. | 2. Parts are less complex. | 2. Surface finish is typically of lower quality. | 2. Tooling must be replaced quite frequently due to wear. |
| 3. Parts require little machining after finishing. | 3. More material limitations, can't be used for ferrous alloys. | 3. Lower dimensional accuracy. | 3. Tooling cost is increased. | 3. Lower dimensional accuracy. |
| 4. Excellent surface finishes can be achieved. | 4. Surface finishes are usually lower quality than Investment casting and require additional processing. | 4. Surface finish requires additional work. | 4. Parts require little machining after finishing. | 4. Extremely limited component complexity. |
--- Application ---
--- Quality Control ---
1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)
2) Checking the details before the production line operated
3) Have a full inspection and routing inspection during mass production---In-process quality control(IPQC)
4) Checking the goods after they are finished---- Final quality control(FQC)
5) Checking the goods after they are finished-----Outgoing quality control(OQC)
* Our wax casting product processed by 79 steps with high standard and 100% inspection. Along with the power of our advanced machine, quality is something you do not need to worry about.

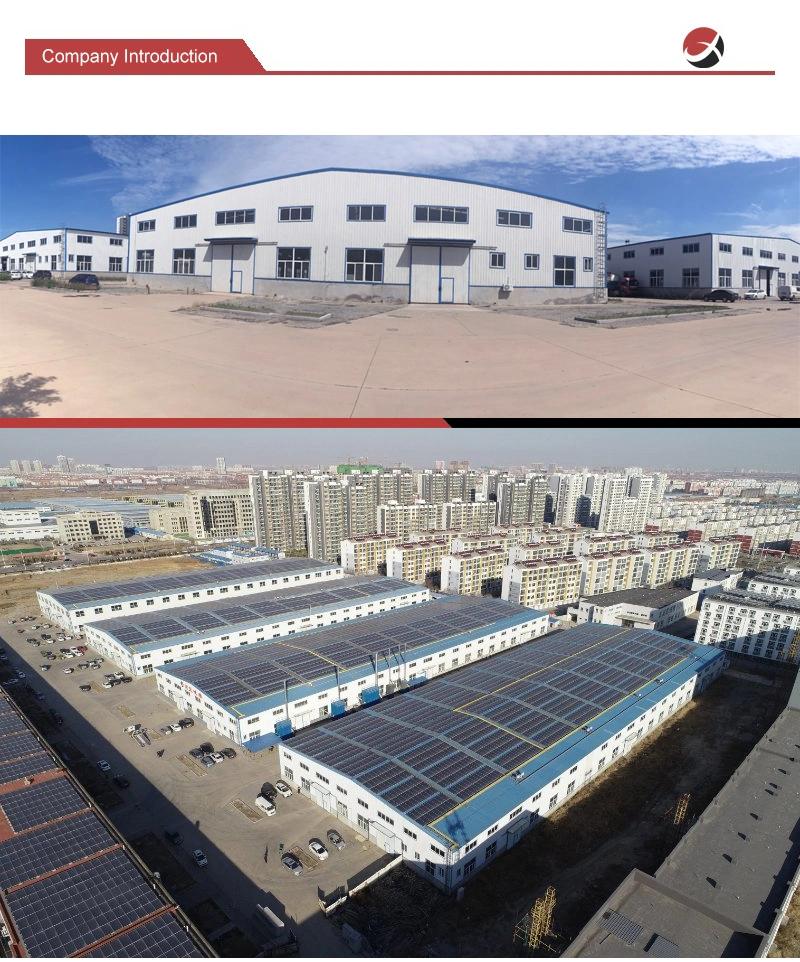

Hebei Junya Precision Machinery Co., Ltd
is a high-tech enterprise that combines designing, tooling developing, casting, machining, surface treatment, inspection, sales, and service altogether. Founded in 2017, located in Huanghua, Hebei, Junya now covers an area of more than 5000 square meters.
With a massive research & development environment, Junya utilized market-leading technology and introduced various advanced equipment to ensure stringent quality in production.
Under a powerful management team, the company has grown to a group with more than 100 employees. Product offerings range from Stainless Steel Pipe Fitting, Quick Joint, Ball Valve, Check Valve, to Marine Hardware and Auto Parts. The material are 304, 304L, 316, 316L, SF8M, WCB, 1.4408, etc.
- Quality - Creativity - Consistency -
These words are JY's slogan, and also a philosophy that drives the company to offer the superior service you are looking for…
Q1: How long is your delivery time?
A: The delivery time depends on the total quantity of the order. Usually, samples can be delivered within 15 days.
Q2: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, and we can also pay for the model, but the customer has to pay for the shipping cost.
Q3: What is the minimum order quantity for your products?
A: It depends on the category or order.
Q4: Where is your factory?
A: Our factory is located in Hebei Province, close to Tianjin Seaport.
Q5: What quotation does your company need to submit?
A: Drawings or samples, and related information, such as quantity, weight, and materials.
Q6: What if we don't have drawings?
A: We can duplicate your samples and make drawings for your confirmation.
We deliver a 'complete investment casting package' for our customers. By providing innovative solutions, quality products and excellent service we can therefore offer the complete manufacturing solution.
