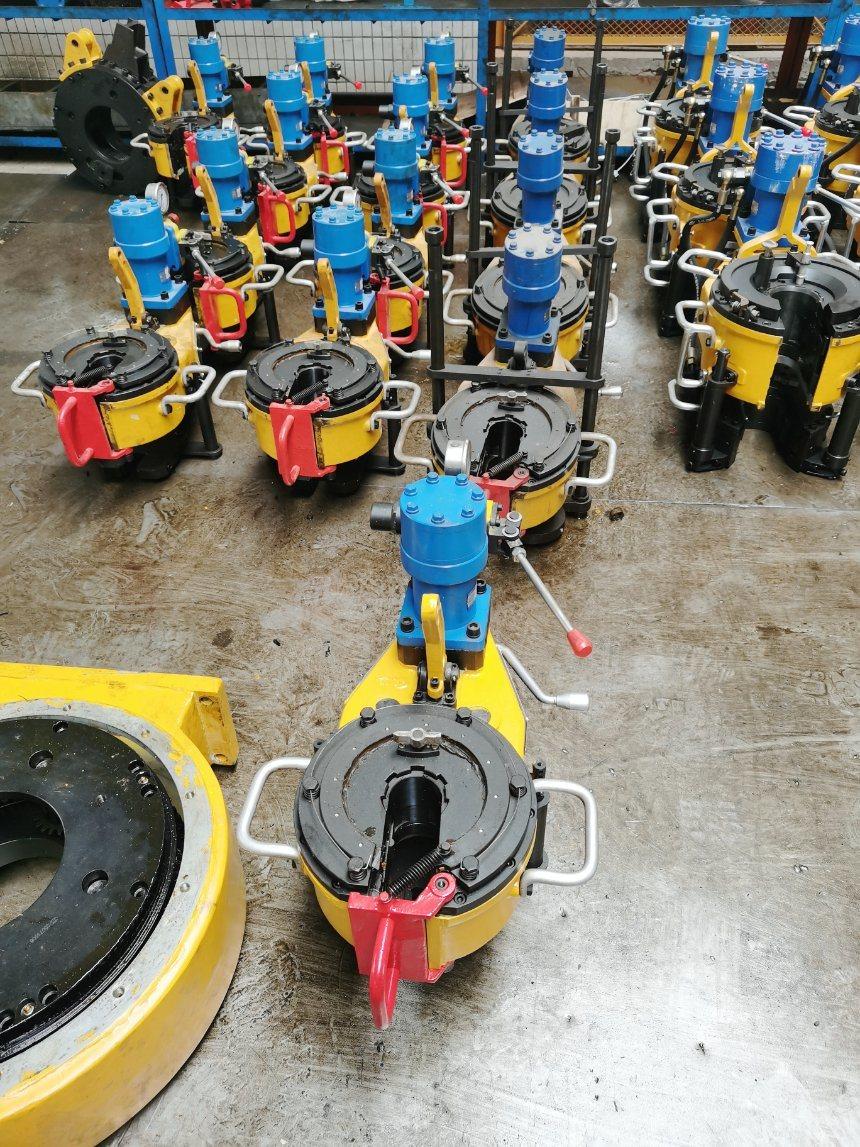

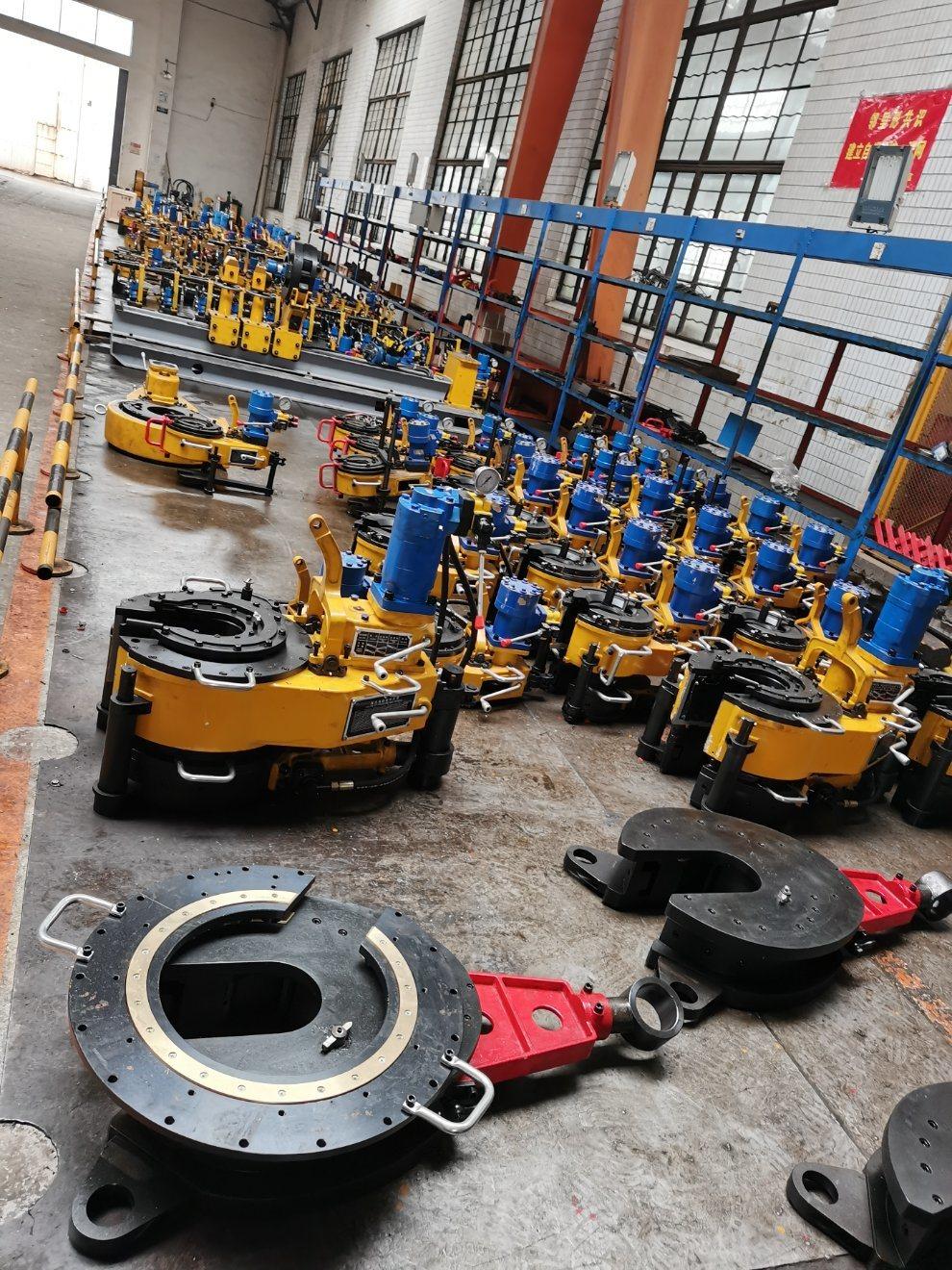

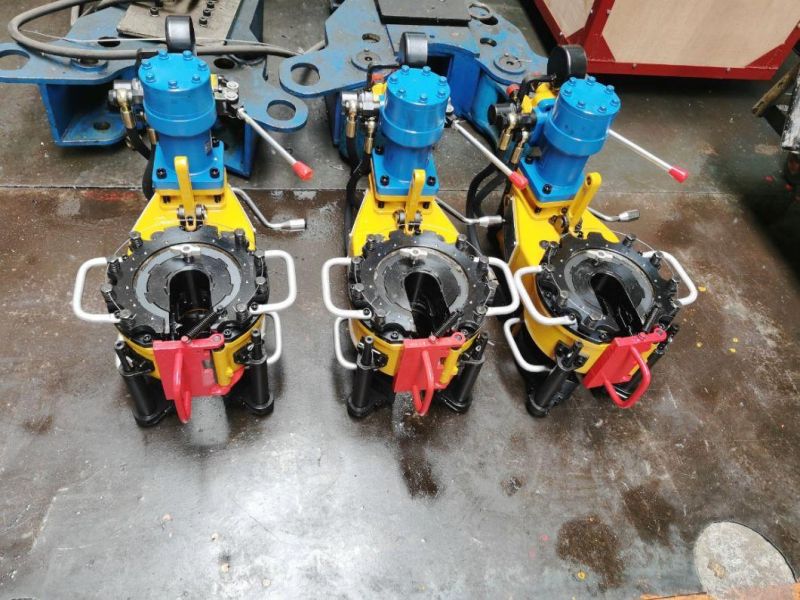

XQ114/6YB Tubing Hydraulic Power Tong Open Type Power Tong

Puyang Chensheng Petroleum Technology Co., Ltd.
  • After-sales Service：1year
  • Warranty：1year
  • Manufacturing Process：Casting
  • Surface Treatment：Sand Blast
  • Operation Pressure：Atmospheric Pressure
  • Material：Cast Steel

Base Info

  • Model NO.：XQ114,6YB
  • Transport Package：Wood Box
  • Origin：Puyang Henan
  • Production Capacity：1000

Description

No                 Itemparameter1Diameter range2 3/8"-4 1/2"2Pipe size range of backup tong   mm 3High gear rated of torque1.5kn.m/1106 ft lbs4Low gear rated of torque6kn.m/4425ft lbs5High gear rated speed85 r/min6Low gear rated speed20 r/min7Max operation pressure11Mpa8Rated flow100L/min  26GPM
XQ114/6YB Tubing Hydraulic Power Tong Open Type Power Tong

XQ114/6YB Tubing Hydraulic Power Tong Open Type Power Tong
XQ114/6YB Tubing Hydraulic Power Tong Open Type Power Tong
XQ114/6YB Tubing Hydraulic Power Tong Open Type Power Tong
XQ114/6YB Tubing Hydraulic Power Tong Open Type Power Tong
XQ114/6YB Tubing Hydraulic Power Tong Open Type Power Tong
XQ114/6YB Tubing Hydraulic Power Tong Open Type Power Tong
