API 16c Choke Manifold Control Console/Cabinet/Panel
Zhenjiang Boral Machinery and Equipment Co., Ltd.- Certification:ISO 9001:2000
- Surface Treatment:Without Processing
- Centralizer Type:Rigid
- Structure:Automatic Reversing
- Material:Cast Steel
- Warranty:18mths
Base Info
- Model NO.:JY1-35BJT
- Transport Package:Wooden Box
- Specification:customized
- Trademark:HENGXIN
- Origin:China
- HS Code:8431431000
- Production Capacity:1000sets,Year
Description
Basic Info.
Model NO. JY1-35BJT Transport Package Wooden Box Specification customized Trademark HENGXIN Origin China HS Code 8431431000 Production Capacity 1000sets/YearProduct Description

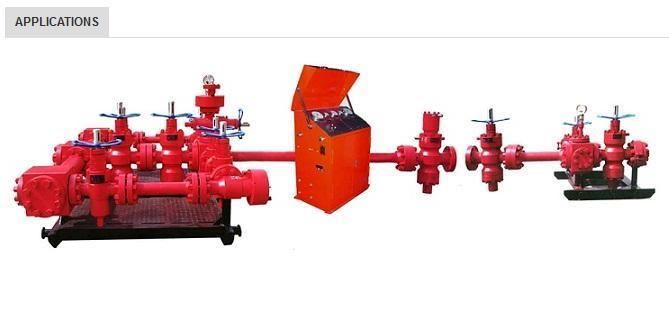

API 16C Choke Manifold Control Console

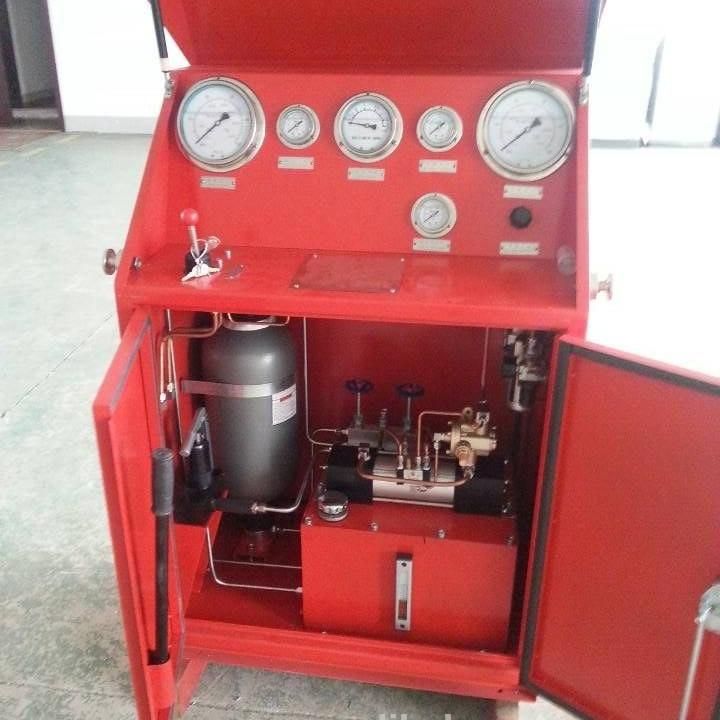

HYDRAULIC CHOKE THROTTLING MANIFOLD CONTROL BOX
A. Usage:
The hydraulic choke throttling manifold control box is control device for the hydraulic choke manifold, it may control the open and close of hydraulic choke valve remotely and may indicate the valve rod inside pressure,casing pipe pressure and the switch position of hydraulic valve . Thus,it may control well blow successfully. It is necessary equipment to perform oil /gas well pressure control technology.
B. Main technical parameter
1. Air source pressure:0.6MPa (cleaning air source excluded oil water and dust).
2. Environmental temperature: -20ºC ~ +60ºC
3. Rated output oil pressure: 3MPa
4. Max output oil pressure: 4MPa
5. Gas line - quick coupling connection size: M16 × 1.5.
6. Oil line - quick coupling connection size: M22 × 1.5.
7. Hydraulic oil specification :10#,12# aircraft hydraulic oil
D. The principle and structure

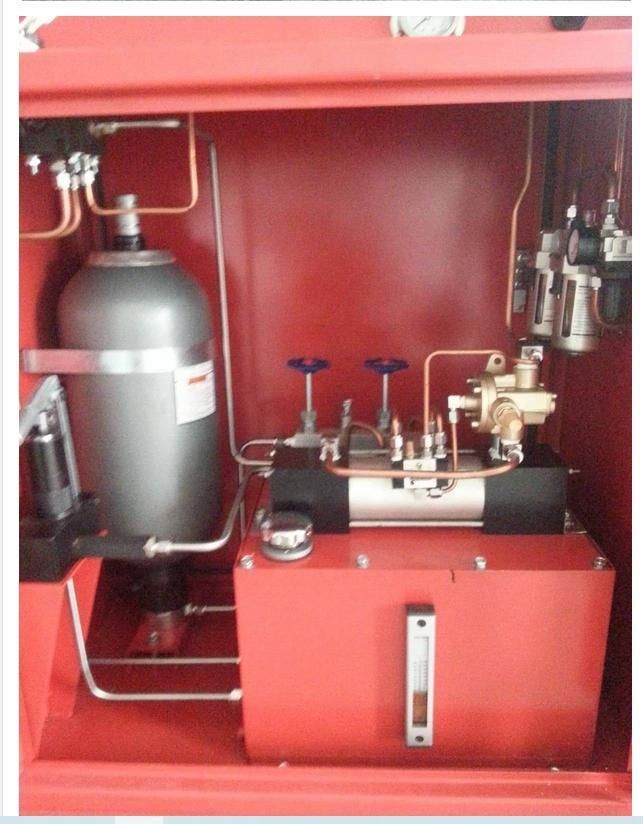

The hydraulic choke throttling manifold control box works as a gas, liquid balance principle, which combines pneumatic, hydraulic integration, external air supply pressure is converted into hydraulic energy to control the hydraulic throttle valve opening and closing, in order to stable bottom hole pressure, to control the throttle and kill effect.
