API Level Oilfield Special Solids Control Equipment Desilter
Shandong Beyond Petroleum Equipment Co., Ltd.- After-sales Service：Free Spare Parts, on-Site Maintenance and Repair S
- Warranty：1 Year
- Voltage：220V~380V
- Weight：680 Kg
- Hydrocyclone Diameter：100mm
- Working Pressure：0.2~0.45MPa
Base Info
- Capacity：120-160 M3,H
- Screen Size：1240*585 mm
- Screen Spec：120-200 Mesh
- Transport Package：Wooden Box
- Specification：2310*1136*2085
- Trademark：Beyond
- Origin：Shandong China
- Production Capacity：500
Description

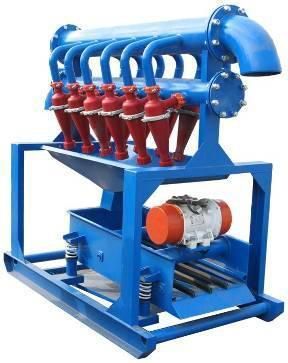

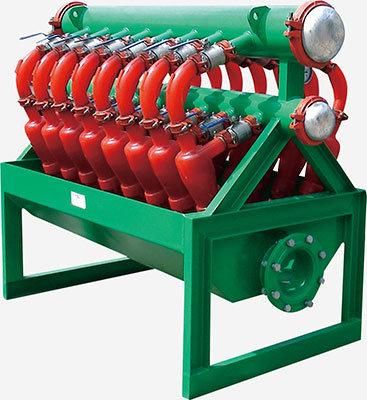

1. JZQJ Series Desilter
As a solids control equipment of the third stage in drilling operation, desilter is used to remove solid particles of 20-44 µm in drilling liquid. The desilter of this type that has been reformed many times on the applications for years is reliable in technical performance and provides very good treatment results. Its water cyclone is of long service life and stable performance. It is applicable to various kinds of drills in the oilfields.
The inlet and outlet of water cyclone can be connected very quickly, which is convenient for replacement and maintenance.
Main Technical Parameters :
Model
JZQJ100×10
JZQJ100×12
JZQJ100×14
JZQJ100×16
Hydrocyclone diameter
100mm
100mm
100mm
100mm
Working pressure
0.2~0.45MPa
0.2~0.45MPa
0.2~0.45MPa
0.2~0.45MPa
Capacity
120-160 m3/h
160-200 m3/h
200-220 m3/h
200-240 m3/h
Screen size
1240×585 mm
1240×585 mm
1240×585 mm
1240×585 mm
Screen spec
120-200 mesh
120-200 mesh
120-200 mesh
120-200 mesh
Inlet diameter
6″
6″
6″
6″
Outlet diameter
8″
8″
8″
8″
Motor power
0.5 kW
0.5 kW
0.5 kW
0.5 kW
Weight
680kg
720kg
740kg
780kg

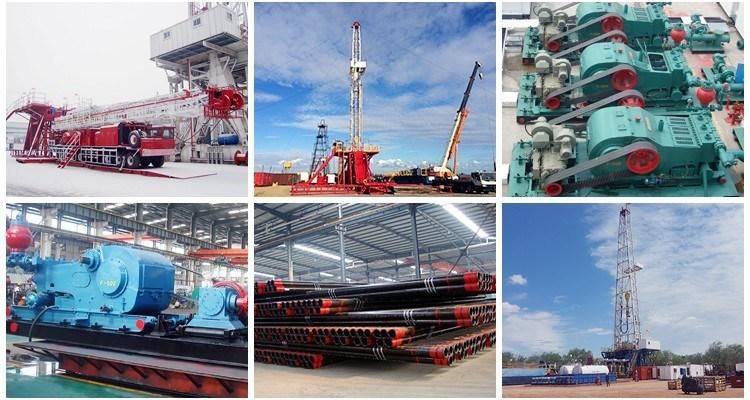

Shandong Beyond Petroleum Equipment Co., Ltd. (Hereafter as "BEYOND") was established to offer the best solutions for the overseas customers on drilling equipment, spares and services for different drilling application like petroleum, geothermal, water well, HDD and construction foundation etc.BEYOND products cover but not limited to: China-make drilling & workover rigs, mud pumps, solid control system & equipment, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts in all type of drilling and well completion activities. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs. Only if it is what you need, BEYOND can get it for you, with assured premium quality, most competitive price & within shortest lead time.With "Professional & Efficient, Customer Focus, Win-win Cooperation" as its operation principle, BEYOND believes that we will become your best cooperative partner in China.
