• Material：Stainless Steel
• Mast：11m
• Wireline：19mm
• Drum Capacity：2000-4500m
• Transport Package：Bulk
• Origin：Puyang Henan
• HS Code：3208901099
• Production Capacity：100

Basic Info.

Material Stainless Steel Mast 11m Wireline 19mm Drum Capacity 2000-4500m Transport Package Bulk Origin Puyang Henan HS Code 3208901099 Production Capacity 100

Product Description

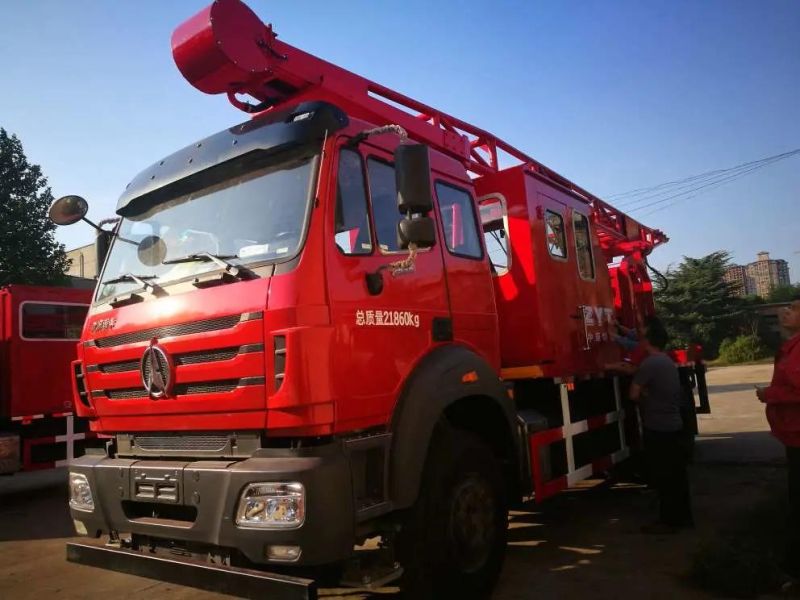

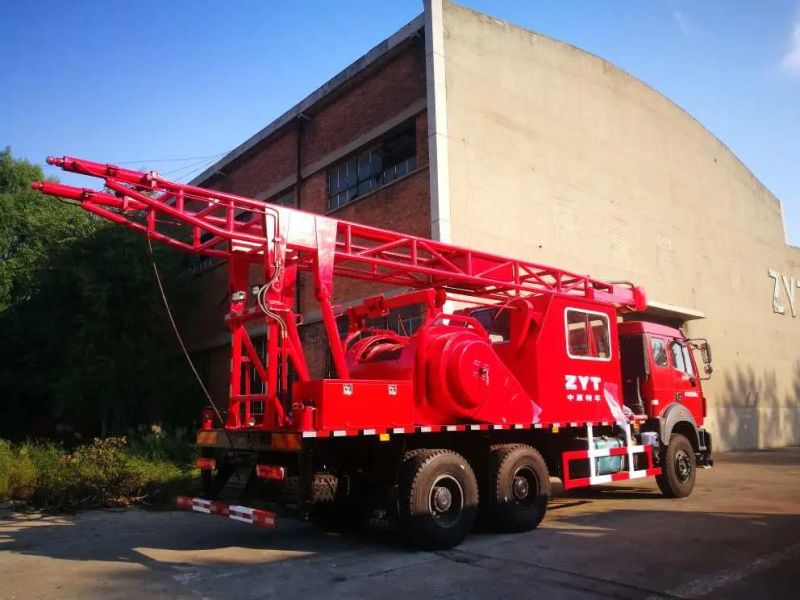

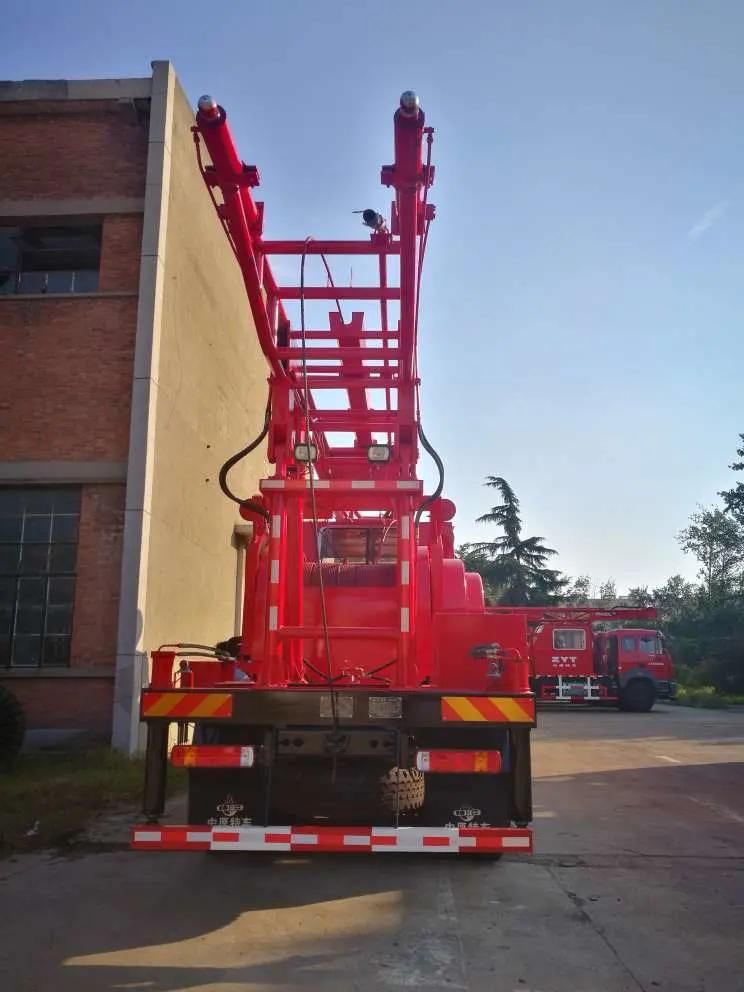

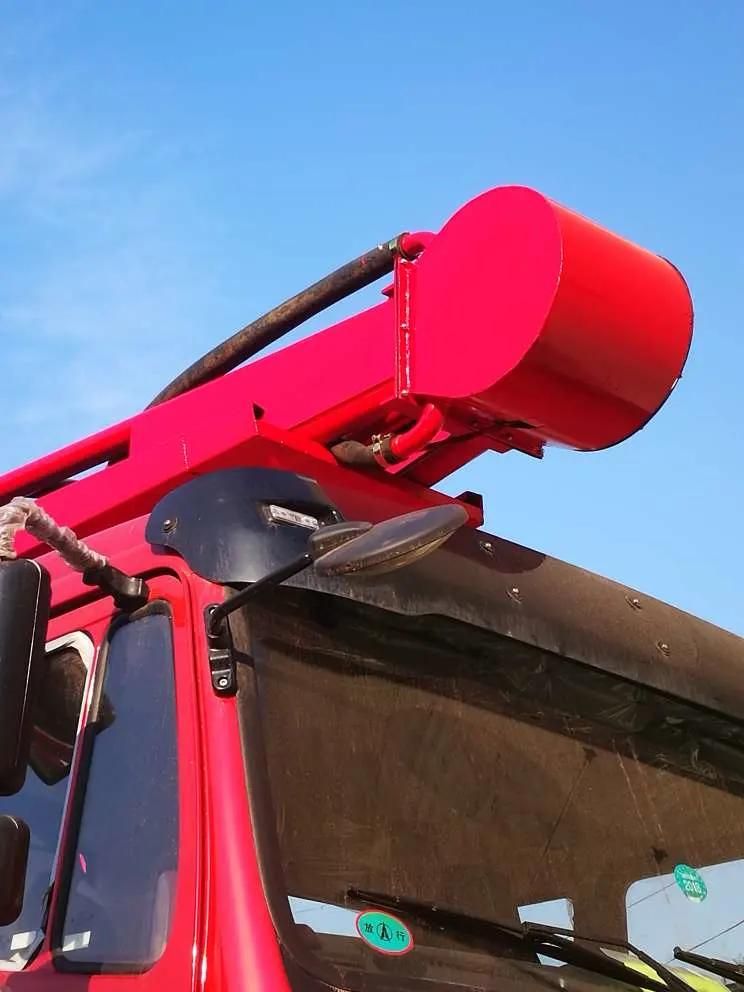

                                                                                                    Swabbing unit

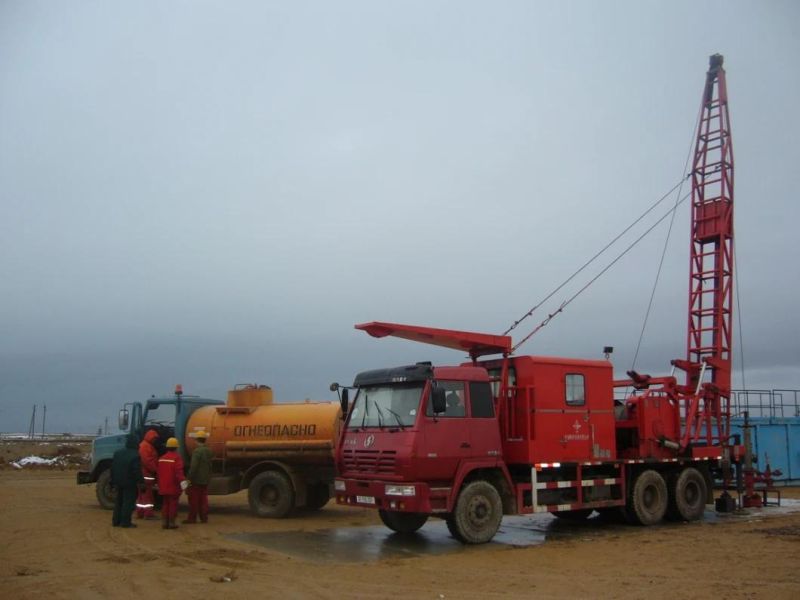

Swabbing unit is mainly used in the oil recovery operation for remote,abandoned and stripped well, and in the operation of oil well and water well swabbing, drifting and fishing,The drum adopts band brake in both sides.and adopts both manual and pneumatic types, so the brake is stable and reliable.

Model	ZYT5213TCY	ZYT5200TCY4	ZYT5221TCY	ZYT5212TCY	ZYT5110TCY	ZYT5223TCY
chassis	ND1254B44J	SX1256UN434	ZZ1257M4347C	DFL1250A8	DFL1120B2	SX1250MB4
Drive type	6×4	6×4	6×4	6×4	4×2	6×4
Drum capacity	2500 m	2500m/2700m/3000m	2500m/2700m/3000m	2500 m	1200m(Ф13mm) 900m(Ф16mm)	4500m(Ф14mm)
Max work depth	2350 m	2350m/2550m/2850m	2350m/2550m/2850m	2350 m	1000(Ф13mm) 750m(Ф16mm)	4350m
Mast work height	11 m	11m	11m	11M	11m	14m
Max mast hoisting capacity	120 kN	120KN	120KN	120 kN	30 kN	120KN
Wireline dia	Ф13mm/16MM	16mm	16mm	Ф13mm/16MM	Ф13mm/16MM	Ф14mm

hydraulic system

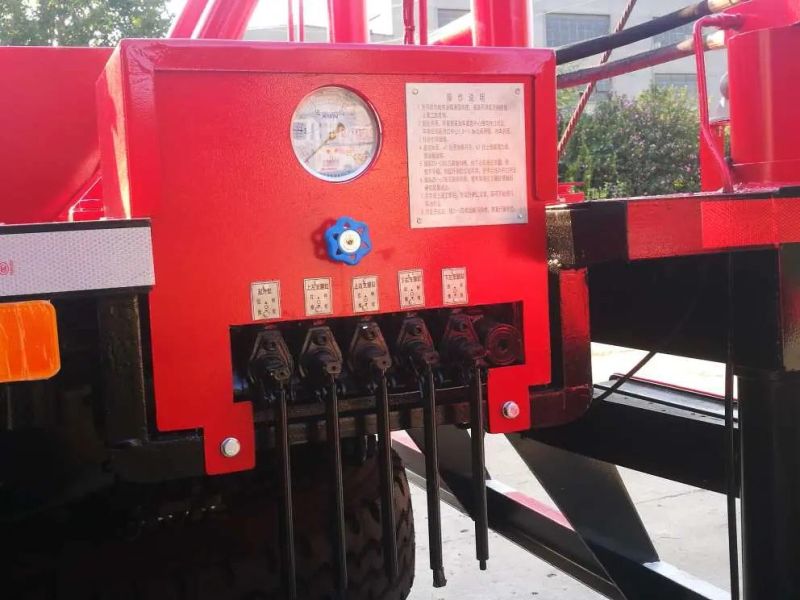

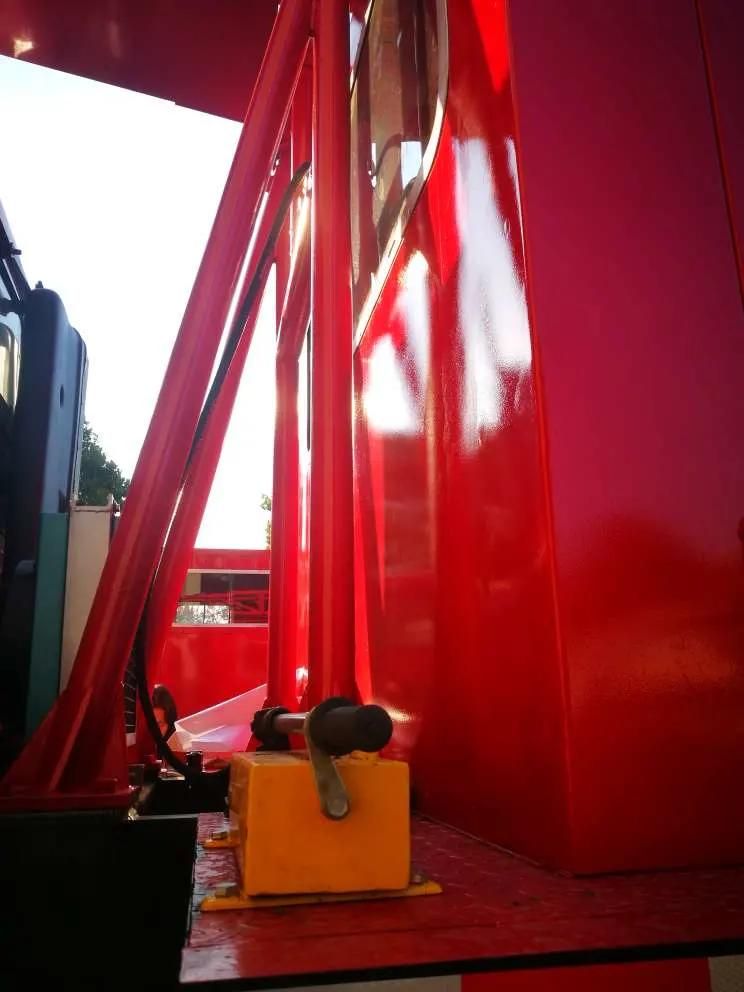

The hydraulic system consists of legging cylinder, raise cylinder, oil tank, gear pump and control valve, etc. it is used to adjust raise for the frame and mast
Air system
The air system consists of air cylinder and pneumatic valves, etc. it is used to finish the pneumatic brake and change gear, at the same time supply air source for drum clutch.
Rolling rope device
The device is mechanical and manual structure, it can make the wire arrange in the drum orderly and prevent the wire from damage because of wrong arrangement.
Brake system
It is equipped with manual, mechanical ,double sides brake, also has a pneumatic, emergency brake to meet the requirement of work.
Operating cab
The operating cab have measuring display device, it is used to measuring the wire to well depth and drum pull during operation.
The operating cab is equipped with the chair, the transmission box gear,the control of the engine,the control of the main truck clutch,the control of the drum clutch and the brake of the drum is in the operating cab.Window on the right side of cab is push-pull type. Cab interior Installing a tail gas heating system in the operation cab and side nearly to chassis cab (U-shaped layout of the pipeline, and install control exhaust emission gate).
