• Model NO.：F-500,F-800,F-1000,F-1300,F-1600,PZ-8,PZ-9,PZ-11
• Product Name：Mud Pump Parts Fluid End Module Hydraulic Cylinder
• Application：Drilling Mud Pump
• Transport Package：Export Wooden Case
• Specification：F1600,F1000,PZ9,12P-160
• Trademark：OilMan
• Origin：China
• HS Code：8481804090
• Production Capacity：2000 Pieces Per Month

Basic Info.

Model NO. F-500,F-800,F-1000,F-1300,F-1600,PZ-8,PZ-9,PZ-11 Product Name Mud Pump Parts Fluid End Module Hydraulic Cylinder Application Drilling Mud Pump Transport Package Export Wooden Case Specification F1600/F1000/PZ9/12P-160 Trademark OilMan Origin China HS Code 8481804090 Production Capacity 2000 Pieces Per Month

Product Description

Mud Pump Parts Fluid End Modules/ Hydraulic Cylinder for F-500, F-800, F-1000, F-1300, F-1600, Pz-8, Pz-9, Pz-11 etc
Hydraulic cylinder is also called the valve box, it is a major part to the fluid end parts. Blank forged by highstrength alloy steel. After heat treated, with multi-channel processes. The three cylinders of each pump is interchangeable. The following key parts: cone sawtooth thread of cylinder head, connect of the curve of all the screw hole and inner cavity.

1) All the drilling mud pump modules are manufactured by high quality alloy steel AISI8620 or AISI 4135. Heat treatment and internal hardened for high durability. With strictly mechanical machine, and NDT, it could serve a long wear performance.

2) All our products are designed under 5000psi, 7500 psi, and 10000 psi pressure.

3) We can also supply modules forged by alloy 35CrMo or 40CrMoMn. It is of high quality with secondary smelting, and with deoxygenates treatment. It is manufactured according to JB/TQ252-81 Specification and with high mechanical performance.

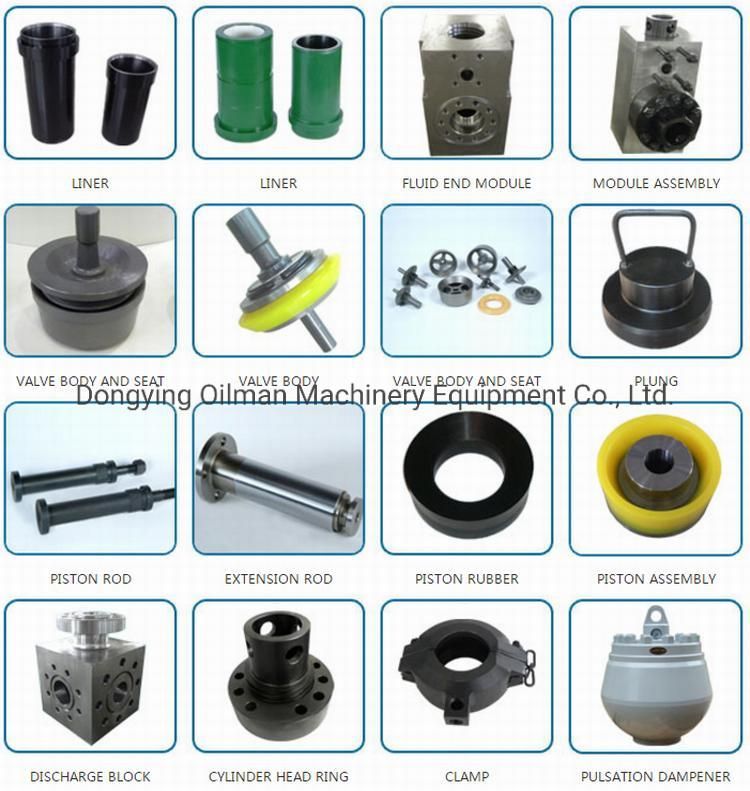

4) Mud pump fluid end parts offer full lines of Cylinder Head, Valve Lock Cover, Cylinder Head Threaded Ring, Cylinder head Plug, Valve Cover Plug, Upper Valve Guide, Lower Valve Guide, Liner Threaded Ring, Liner Lock, Wear Plate and much more.


OilMan can supply various mud pump expendable parts, including power end assembly, fluid end assembly and its spare parts, which can be easily matched & exchanged with some international famous mud pump brand, such as parts for 3NB series Pump, F series Pump, PZ series Pump, HBRS Pump, BOMCO Pump, EMSCO Pump, NOV P Series Pump, IDECO Pump, etc.

Our mud pump spare parts are mainly used in the below models:

Russian pump	UNBT950, UNB600, 8T650, UNBT1180L, NBT600,NBT300 etc.
BOMCO/Emsco/HongHua	FB1300/1600, F1300/1600, F800/1000, F500 & some duplex pumps.
Gardener Denver	PZ 7, PZ 8/9, PZ 10/11, KF-FXK, FY-FXD, FD-FXX, FG-FXG, FQ-FXQ, FF-FXP, FG-GXG.
National	7P50, 8P80, 9P100, 10P130, 12P160, 14P220, JWS165, JWS340/400, C250/350, K700, K500, K380.
Oilwell	A560/600PT, A850/1100PT, A1400/1700PT, 214P, 810P.
Ideco	T500, T800/1000, T1300/1600.
Wirth	TPK1000, TPK1600, TPK2000/2200.
Weatherford	MP-5, MP-8, MP-10, MP-13, MP-16

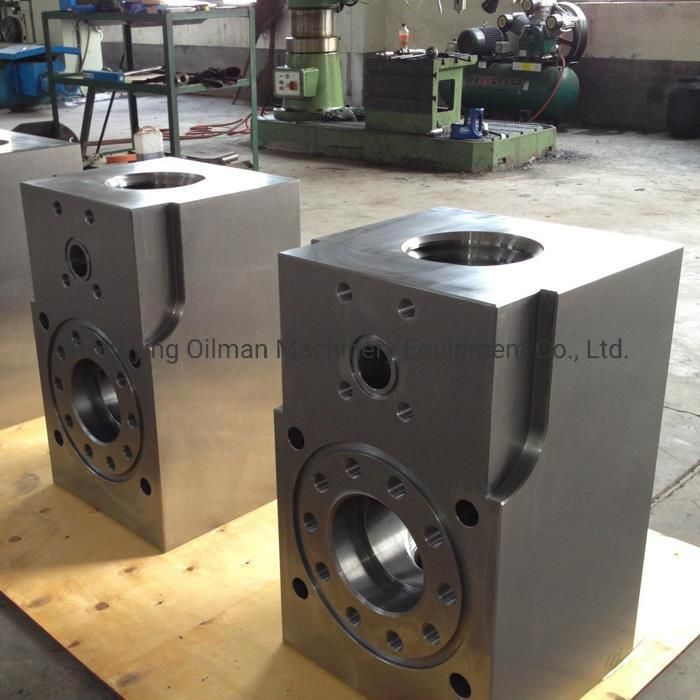

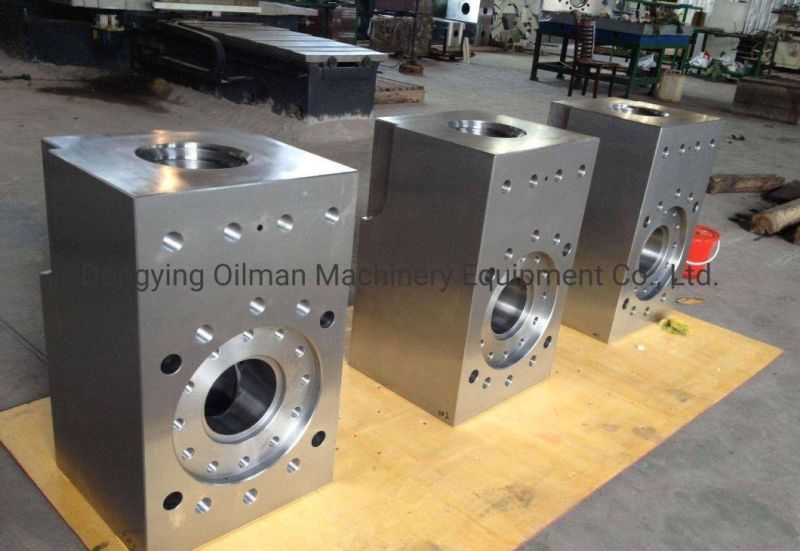

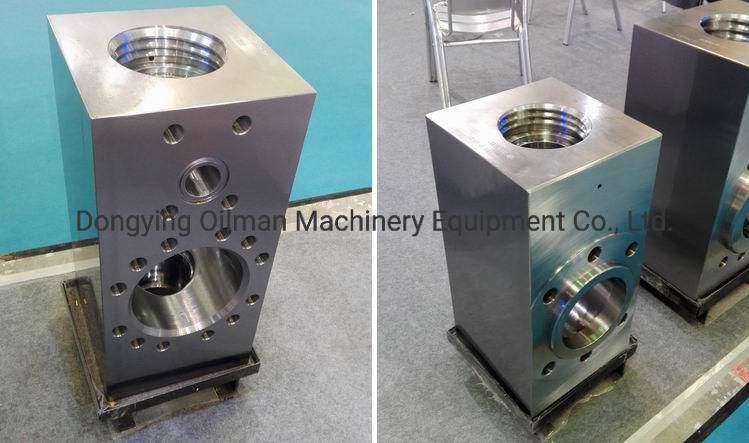

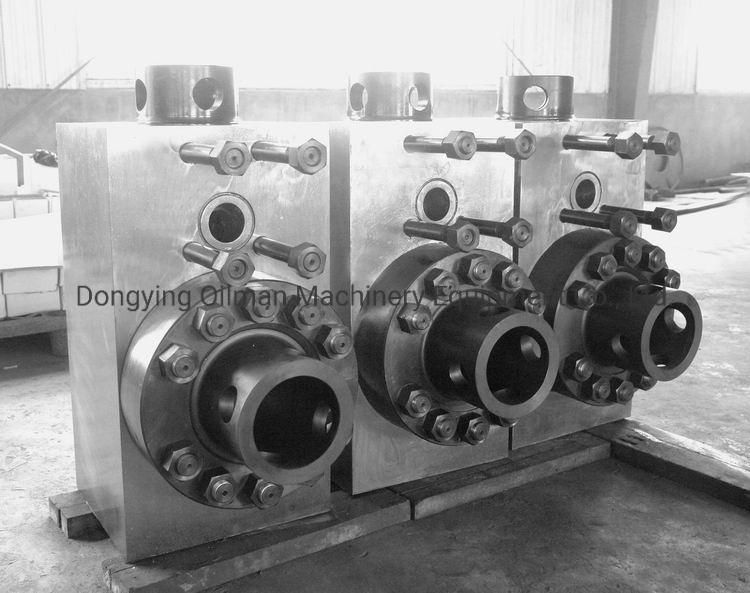

Product Show:
