• Model NO.：EAF
• Standard：API
• Transport Package：Pallet
• Trademark：EXTRONG
• Origin：China
• HS Code：8431431000
• Production Capacity：5000 Pieces Per Year

Basic Info.

Model NO. EAF Standard API Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per Year

Product Description

EAF/EAR landing nipple

INTRODUCTION

The Top and Bottom No-Go Seating Nipples provide for the location of various wireline flow control devices in the production string. The nipple's no-go shoulder is used to help locate and set the Lock Mandrel, but, it is unloaded once the setting operation is completed.

The top no-go seating nipple is designed to accept only those top no-go type locks which carry the same letter designations as the seating nipple, either Model EAF, Model EHF, or Extreme depending upon the required pressure rating.

The bottom no-go seating nipple is designed to accept only those bottom no-go locks and accessories which carry the same letter designations as the seating nipple, either Model EAR, Model EHR, depending on the required pressure rating.

The location and number of seating nipples should be carefully considered in the completion planning stages to allow maximum versatility in the positioning of various flow control accessories.

FEATURES

• Honed sealing bores for maximum sealing performance

• Seal bore contoured and polished to pass chevron packing without damage

• Integral locking groove

• Extended upper nipple bore eliminates pre-setting

• Simple design

• Available in API and premium threads

• Pressure rating independent of no-go wear

APPLICATIONS

• Land blanking plugs to shut in the well or to test the production tubing

• Land equalizing check valves

• Land circulating blanking plugs

• Land chokes to reduce surface flowing pressures or to have pressure drops downhole to prevent surface freezing in gas production

• Land instrument hangers with geophysical devices such as pressure and temperature recorders

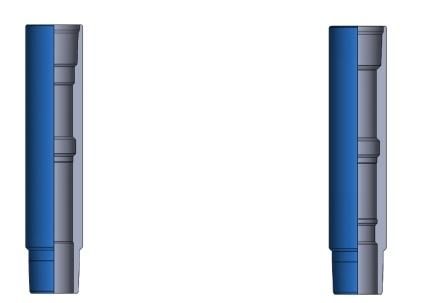

                    EAF TOP NO-GO LANDING NIPPLE                         EAR BOTTOM NO-GO LANDING NIPPLTE

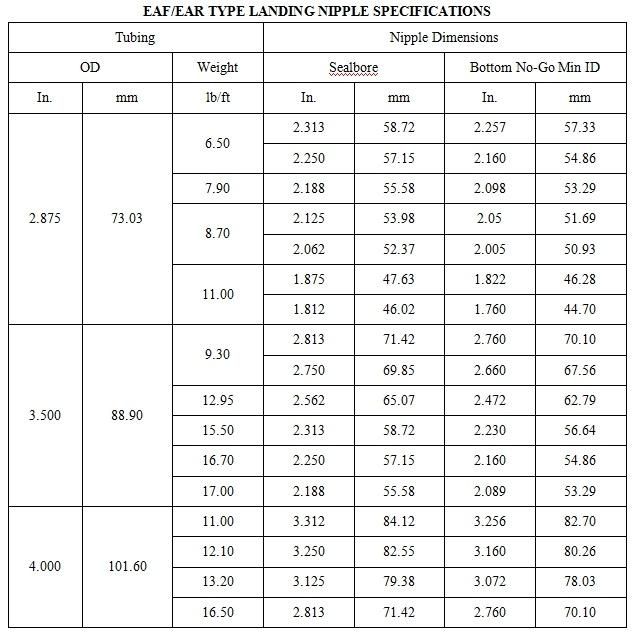

SPECIFICATION SHEET
