EMT Mechanical Set Retrievable Packer

Zhenjiang Boral Machinery and Equipment Co., Ltd.
  • Certification:ISO 9001:2008, API
  • Power Source:Hydraulic
  • Operation Pressure:Atmospheric Pressure
  • Applicable Medium:Mud, Water, Natural Gas, Crude Oil
  • Structure:Vertical
  • Material:Cast Steel

Base Info

  • Model NO.:EMT
  • Standard:API 11d1
  • Transport Package:Pallet
  • Trademark:EXTRONG
  • Origin:China
  • HS Code:8431431000
  • Production Capacity:5000 Pieces Per Year

Description

Basic Info.

Model NO. EMT Standard API 11d1 Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per Year

Product Description

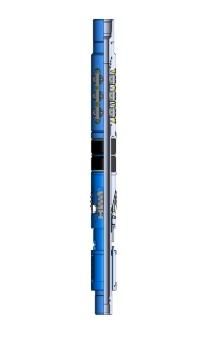

EMT MECHANICAL SET RETRIEVABLE PACKER

INTRODUCTION

The EMT packer is a full-opening hanging packer for testing, acid treating, and squeeze cementing operations. Generally, the packer consists of a packer body and circulating valve. The packer body includes a J-slot mechanism, a packing element, mechanical slips, and hydraulic anchor mechanism. When the down-hole formation pressure is higher than the upper packer pressure, the packer hydraulic anchor stretches out to the casing wall to avoid the upward flow communication and packing failure due to too high lower packer pressure. Also equipped with friction plate and automatic J-slot sleeves.

Before releasing, first open the circulating valve to equalize the upper and lower pressure of the packer and then pull straight up to release.

FEATURES

• The full-opening design allows large pumping flow volume and passing of other wireline tools.

• Packer allows multiple re-set.

• High-strength anchor provides greater anchor strength and can anchor casings of any steel grade.

• The pressure triggers the hydraulic anchor mechanism by tubing

• Optional circulating valve, can conveniently open to circulate the fluids during squeeze cementing or injection


EMT Mechanical Set Retrievable Packer

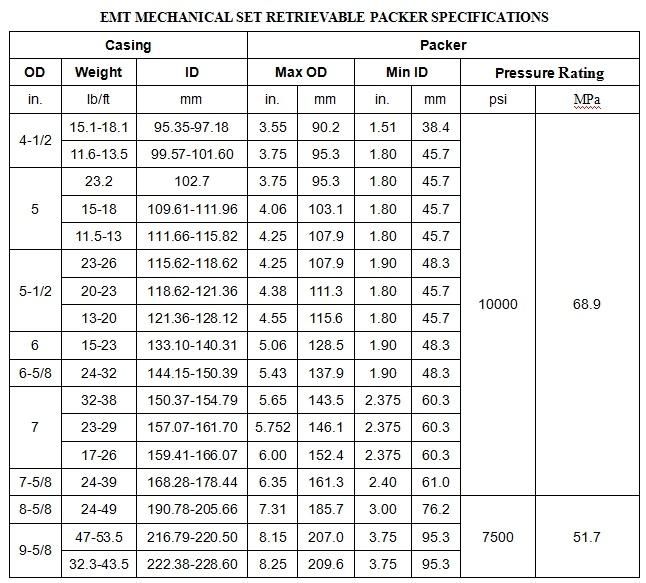

SPECIFICATION SHEET
EMT Mechanical Set Retrievable Packer
