5000psi Mobile High Pressure Pump and Boiler Device Hot Oil Unit Flushing Well and Paraffin Removal
Puyang Chensheng Petroleum Technology Co., Ltd.- After-sales Service：1year
- Warranty：1year
- Certification：ISO 9001:2008
- Power Source：Electric
- Operation Pressure：Atmospheric Pressure
- Applicable Medium：Water
Base Info
- Structure：Horizontal
- Material：Stainless Steel
- Transport Package：Bulk
- Origin：Puyang Henan
- Production Capacity：1000
Description
Basic Info.
Structure Horizontal Material Stainless Steel Transport Package Bulk Origin Puyang Henan Production Capacity 1000Product Description

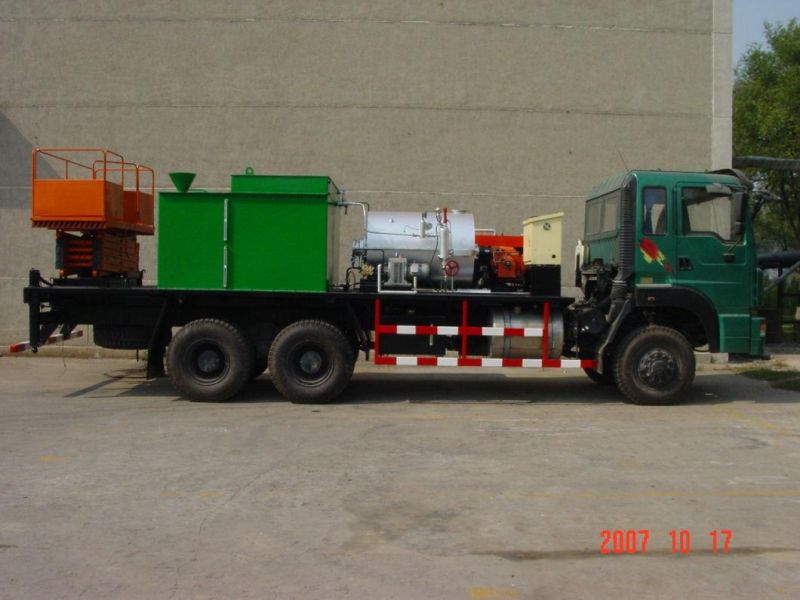

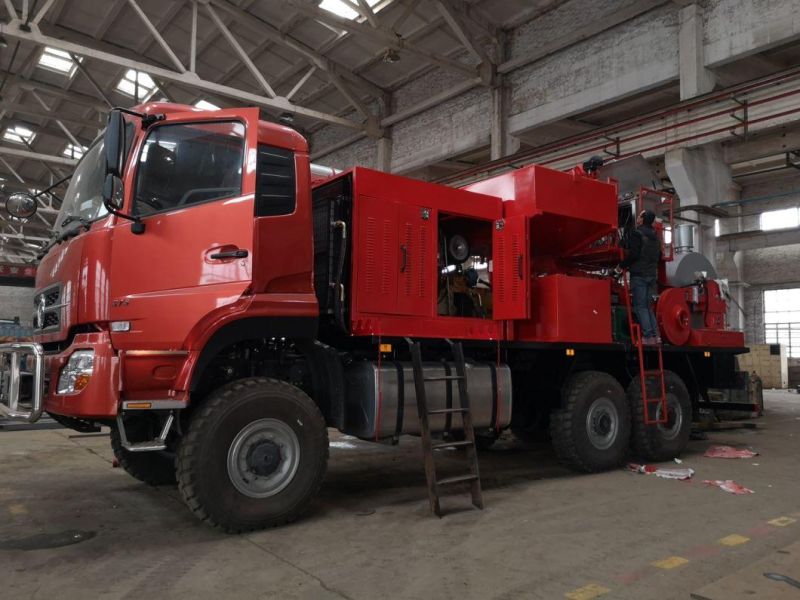

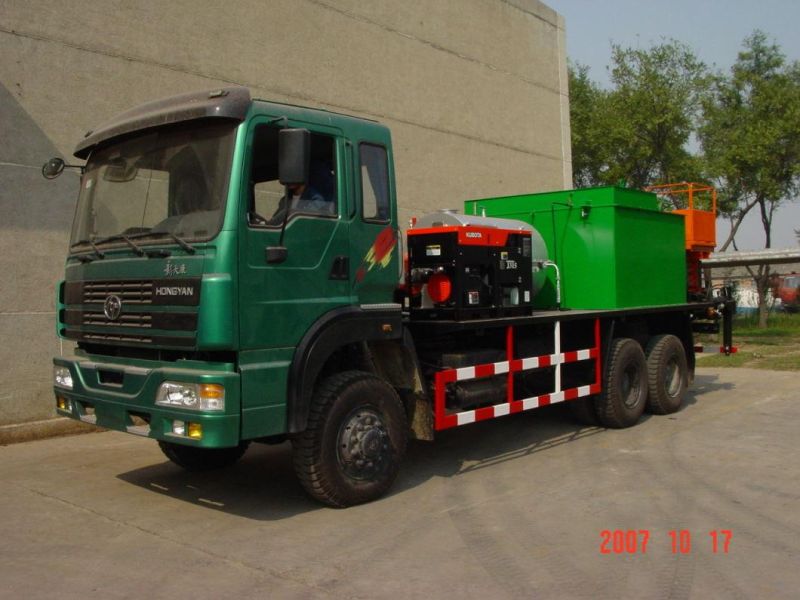

Hot Oil Unit

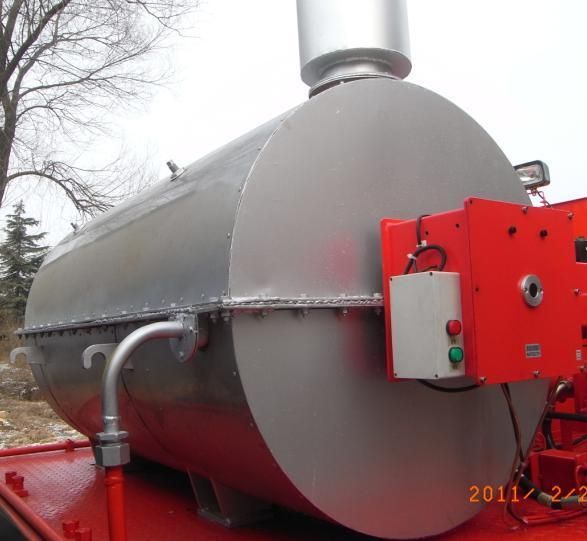

Installed the deck, PTO, triplex cylinder plunger pump, truck mounted special boiler, burner, air supply system, pump suction and discharge pipeline, boiler water inlet and outlet pipeline, transmission system, hydraulic system, air system and control system etc. This truck is mainly used for the production of the oil well, the normal thermal flushing and the blockage removal; high pressure well flushing and pressure testing; paraffin removal the pipe for workover operation. Also it can be widely used for heating other mediums, dredging and thawing ground pipelines and cleaning equipment, etc. The optional devices include 380VAC burner, diesel engine generator set, overpressure and overtemperature protection system, 2m3 or 6m3 water tank, 80m3 well flushing pump. The optional brand of chassis includes North Benz / Shaanxi Truck / CNHTC / DongFeng. And the driving type: 4×2,6×4,6×6.
The function of this equipment includes high pressure well flushing, heating well flushing, steam paraffin removal, pressure testing etc. It has the advantages of stable flow of medium, high thermal efficiency, long life of triplex cylinder plunger pump and boiler, safe and reliable for burner and easily maintenance.
echnical Parameters
| Model | Well Flushing and Paraffin Removal Truck OIL-50-1000-24VDC(380VAC) |
| Max. working pressure of cold flushing MPa (psi) | 35(5000psi) |
| Max. discharge of cold flushing m3/h(ft3/h) | 50(1766) |
| Max. working pressure of hot flushing MPa (psi) | 20(2900) |
| Max. working temperature of hot flushing ºC | 160±10 |
| The discharge of hot flushing on Max. working temperature m3/h(ft3/h) | 4.91(173) |
| Max. discharge of hot flushing m3/h(ft3/h) | 22.45(793) |
| Working medium | Clear water, crude oil |
| Working voltage VDC(VAC) | 24(380) |
| Fuel of boiler | Diesel |
| Power of triplex cylinder plunger pump | Chassis engine |
| Chassis | North Benz / Shaanxi Truck / CNHTC / DongFeng |
| Driving type | 4×2,6×4,6×6 |
| Triplex cylinder plunger pump model | XJ3 |
| Max. input power kW (hp) | 145(194) |
| Qty. of plunger | 3 |
| Max. pressure MPa (psi) | 35(5076) |
| Max. discharge m3/h(ft3/h) | 50(1766) |

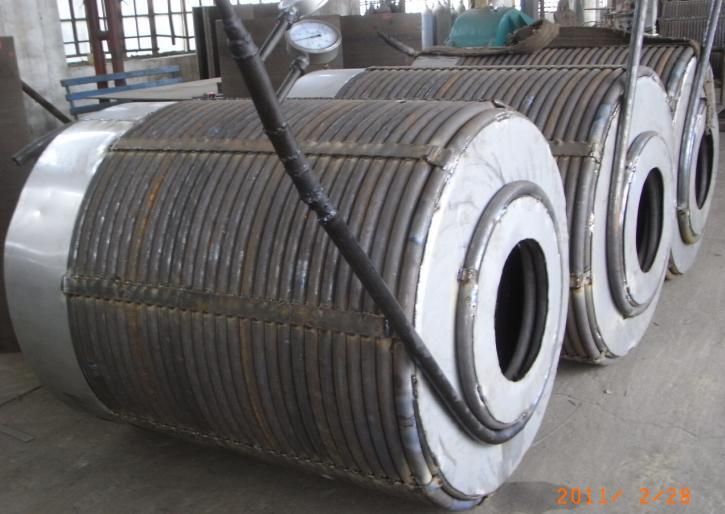

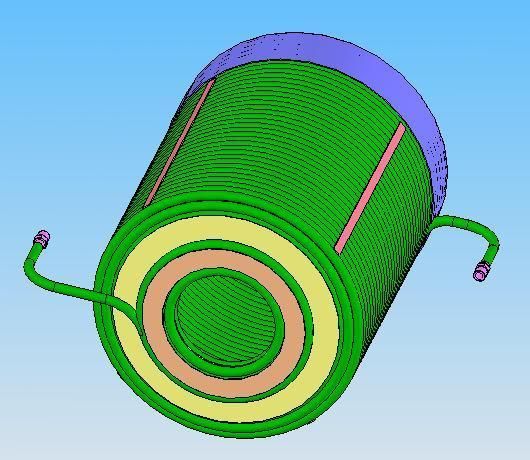

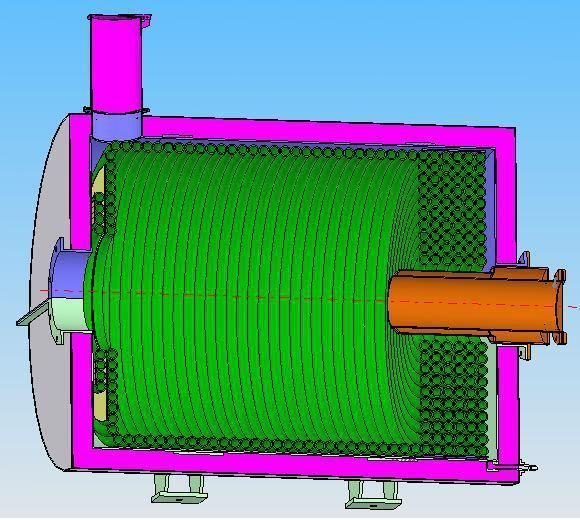

| Boiler model | QXS1.0-20/200/15-YC |
| Rated heat output kW (hp) | 1000(1341) |
| Max. working pressure MPa (psi) | 20 |
| Max. working temperature ºC | 200 |
| Max. discharge m3/h(ft3/h) | 25 |

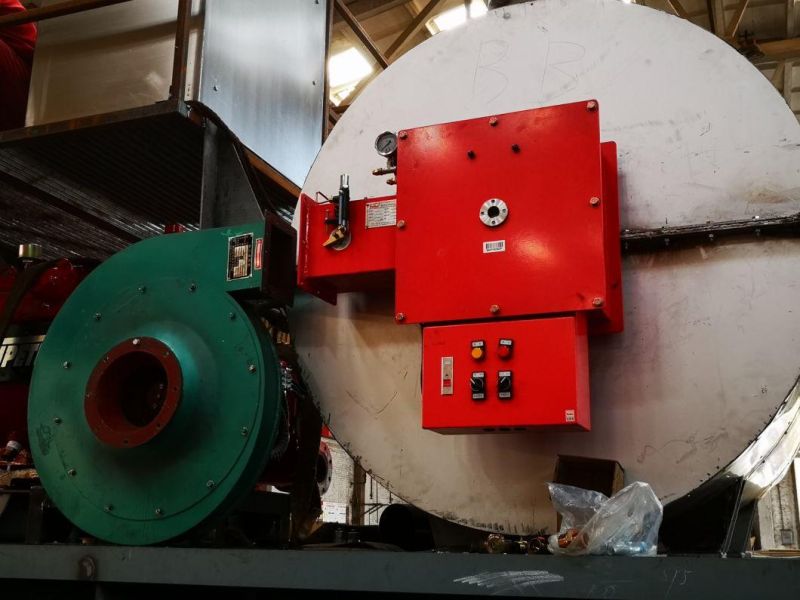

| Burner model | ZYT-1000(Y)-2 |
| Output heat power | 638(855)~1392(1866) |
| Water tank volume m3(ft3) | 1.5(53)(Optional) |
| Diesel engine generator set model | KUBOTA J315(Optional) |
| Output voltage VAC/Hz | 380(Optional) |

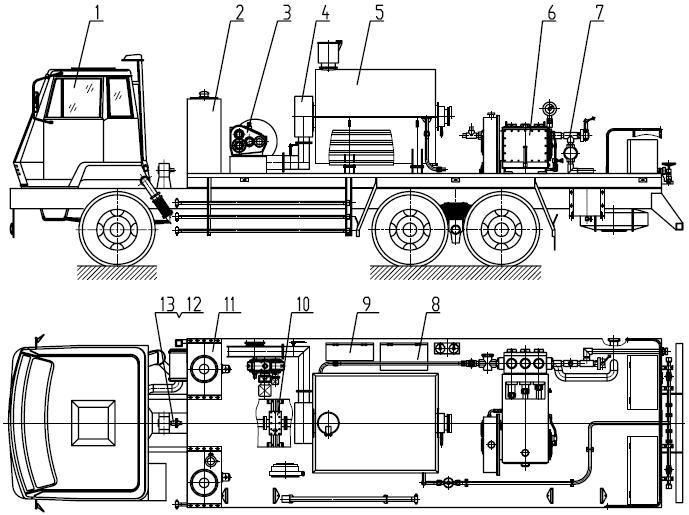

- chassis 2.hydraulic oil tank system 3.air supply system 4.burner 5. truck-mounted special boiler 6. triplex cylinder plunger pump 7. pump discharge line 8. boiler water discharge and suction pipeline 9. operating cabinet 10. .main transmission system 11. diesel oil tank system 12.PTO system 13.air circuit system
