Track Water Flow Regulator Made in China
Zhenjiang Boral Machinery and Equipment Co., Ltd.- Manufacturing Process：CNC Milling
- Surface Treatment：Spray-Paint
- Operation Pressure：Atmospheric Pressure
- Material：Cast Steel
- Standard：API
- Transport Package：Standard Steel Export
Base Info
- Model NO.：KPS
- Trademark：RF
- Origin：China
- HS Code：8431431000
- Production Capacity：5000 Pieces Per Year
Description
Basic Info.
Model NO. KPS Trademark RF Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per YearProduct Description

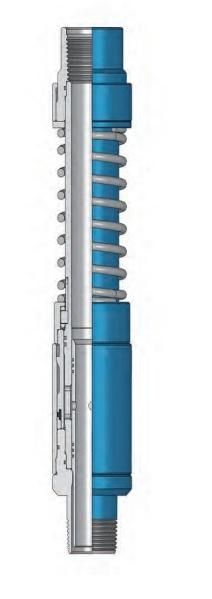

TRACK WATER FLOW REGULATOR
MECHANICS AND FEATURE
This is a layered quantitate ive water flood tool.

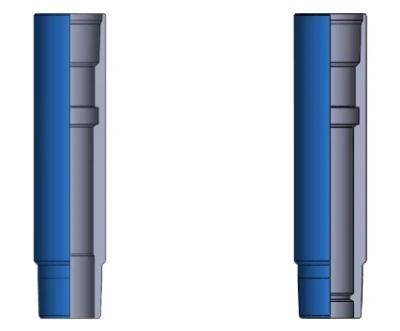

-- Each water flow regulator is fitted with three cores: water nozzle style, enlarge style, dead core.
-- This tool can be opened the water injection channel when the packer setting.
-- Accurate water distribution, simple and reliable test.
-- Improve water injection qualification rate.
Application
This tool is used to layered water injection.
Technical Paramters
| Series | KSP-115 |
| Casing (in) | 5 1/2 |
| Max OD (mm) | 115 |
| Min ID of central tube (mm) | 43/47/51/55/58 |
| Min. ID of core (mm) | 29/32/39/44/49 |
| Pressing rating (psi) | 3600 |
| Tempearture rating (ºC) | 120 |
| Operating pressure (psi) | 72.5-101.5 |
| Top/bottom thread | 2 7/8" NU |
| Length (mm) | 634 |
