• Standard：API
• Transport Package：Pallet
• Trademark：EXTRONG
• Origin：China
• HS Code：8431431000
• Production Capacity：5000 Pieces Per Year

Basic Info.

Standard API Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per Year

Product Description

EBF/EBR LANDING NIPPLE



INTRODUCTION

EBF Type Landing Nipple is a top no-go or selective landing nipple that provides for the location of various wireline flow control devices in the production string. The Model EBR Landing nipple is a bottom no-go landing nipple that provides for the location of various wireline flow control devices in the production string.

The location and number of landing nipples should be carefully considered in the completion planning stages to allow maximum versatility in the positioning of various flow control accessories.





FEATURES

• Seal bore - contoured and polished to guarantee effective seal

• Integral locking groove

• OD and material same as that of tubing coupling

• Available in API and premium threads

APPLICATIONS

• Land blanking plugs to shut in well or to test the production tubing

• Land velocity type safety valves, equalizing check valves, circulating blanking plugs

• Land instrument hangers with geophysical devices like pressure and Temperature recorders

• Prevent loss of wireline work string in some cases.

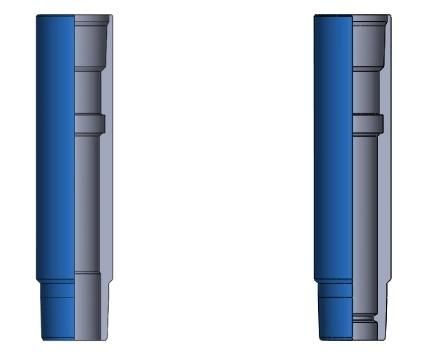

                                 EBF LANDING NIPPLE                              EBR  LANDING NIPPLTE

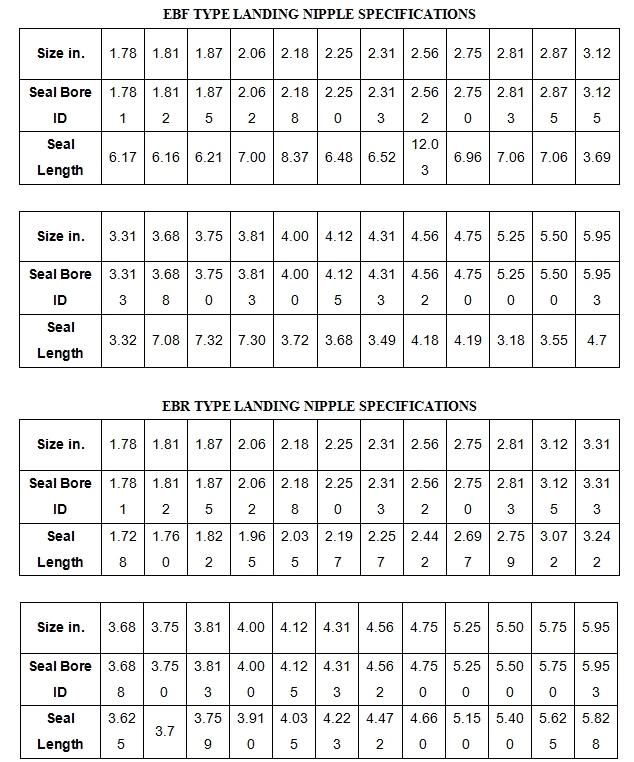

SPECIFICATION SHEET
