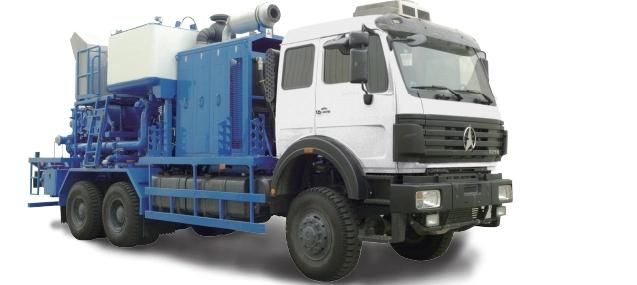

• Carrier Style：Truck Mounted
• Pump：Plunger Pump
• Transport Package：Export Standard
• Trademark：SERVA
• Origin：China
• Production Capacity：5000 Units,Year

ConfigurationChassisNorth Benz 3525A 6x6EngineCaterpillar C13 475HP@2100RPMTransmissionAllision 4700 OFSTriplex pumpSERVA TPH400x4.5Mixing systemHigh energy recirculating jet mixing systemDensity control systemACM-III 1 auto density control systemSlurry recirculatingSERVA RA56Booster pumpServa RA56 (or RA45)Mixing water pumpServa RA43Measuring tank volume2x108BL stainless steel tankMixing tank volume1.6M³

3. Features
      • 1m³ surge tank avalible, utilized to make bulk cement delivery more stable so as to improve the accuracy of auto control system and slurry quality.

• The mixing power is partially supplied by chassis engine which increases the actual operation power of deck engine.
• TPH400 inline installation, makes the maintenance and service of pumps easier.

• High energy recirculating jet mixing system.

• Off-center dry cement valve avoids bulk cement from choking.
• Emergency kill system of air inlet shutoff.
• SPS non-leakage packing system
• Plunger pump overpressure protection system.
• F300 Non-radioactive densitometer is easy to wash, safe and reliable.
• Simplify operation, adapts to working habits in oilfield.
• 10" operation screen, convenient to monitor the working data.
• Portable wireless/ wired data acquisition system.

Diesel fired coolant pre-heat system available. The heater allows the engine to be preheated before starting without the use of external power.
