• Type：Composite
• Transport Package：Wooden Case
• Trademark：Apimeivalve
• Origin：China
• HS Code：8431431000
• Production Capacity：1000 Sets,Year

Basic Info.

Type Composite Transport Package Wooden Case Trademark Apimeivalve Origin China HS Code 8431431000 Production Capacity 1000 Sets/Year

Product Description

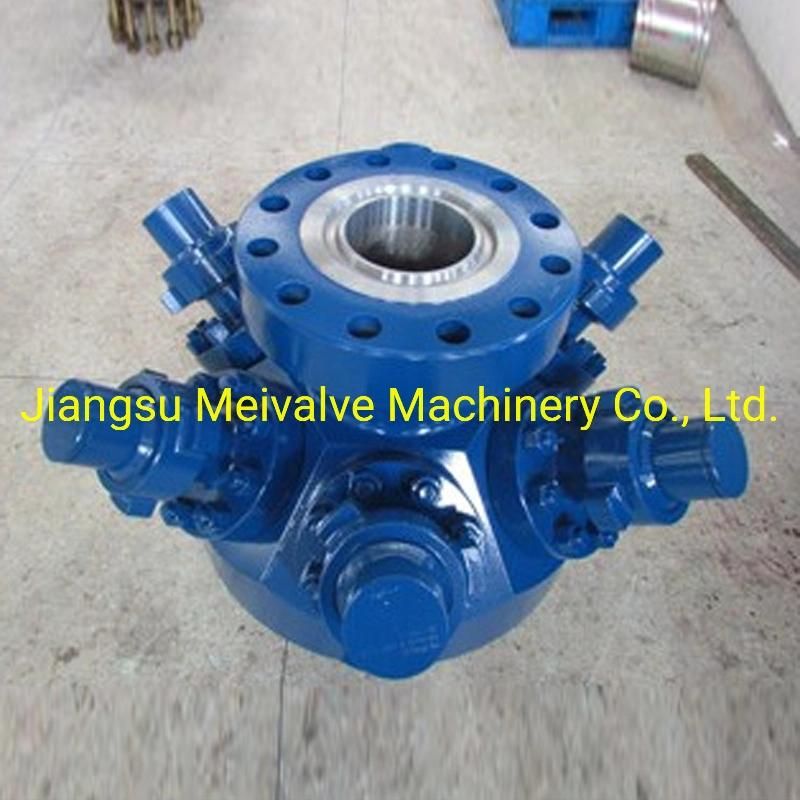

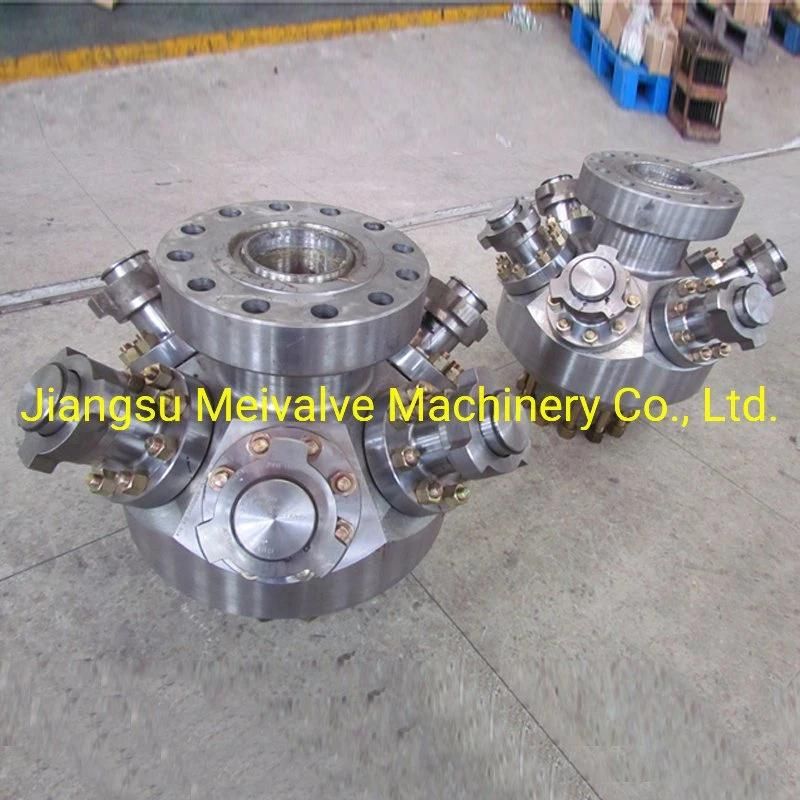

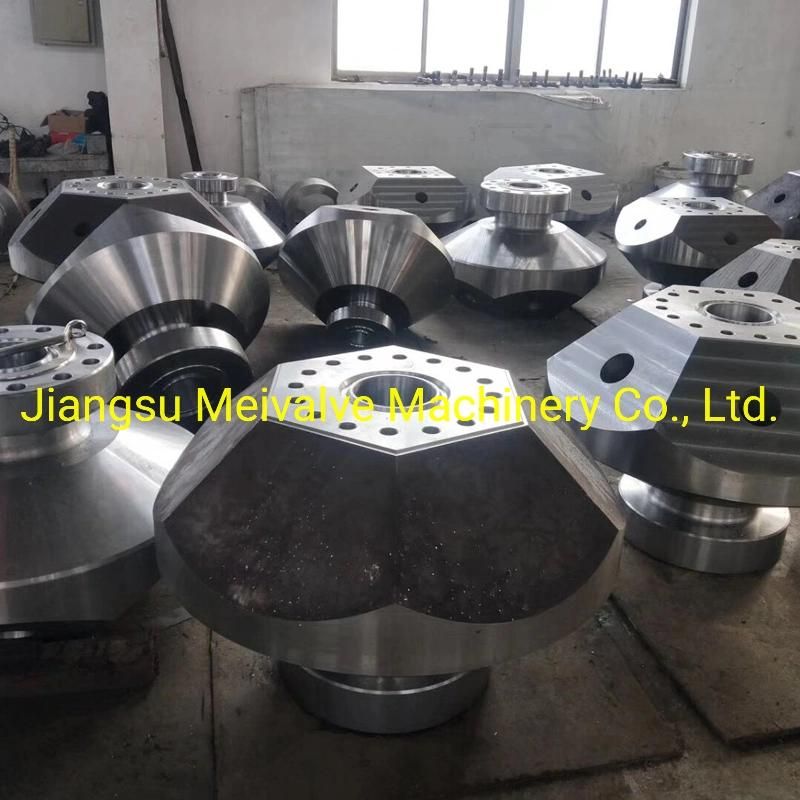

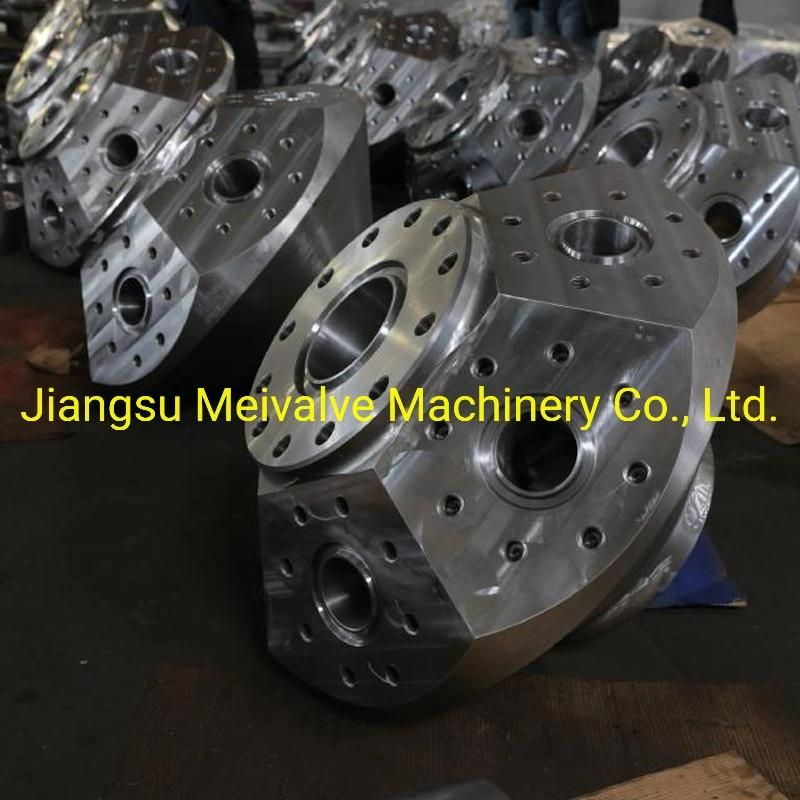

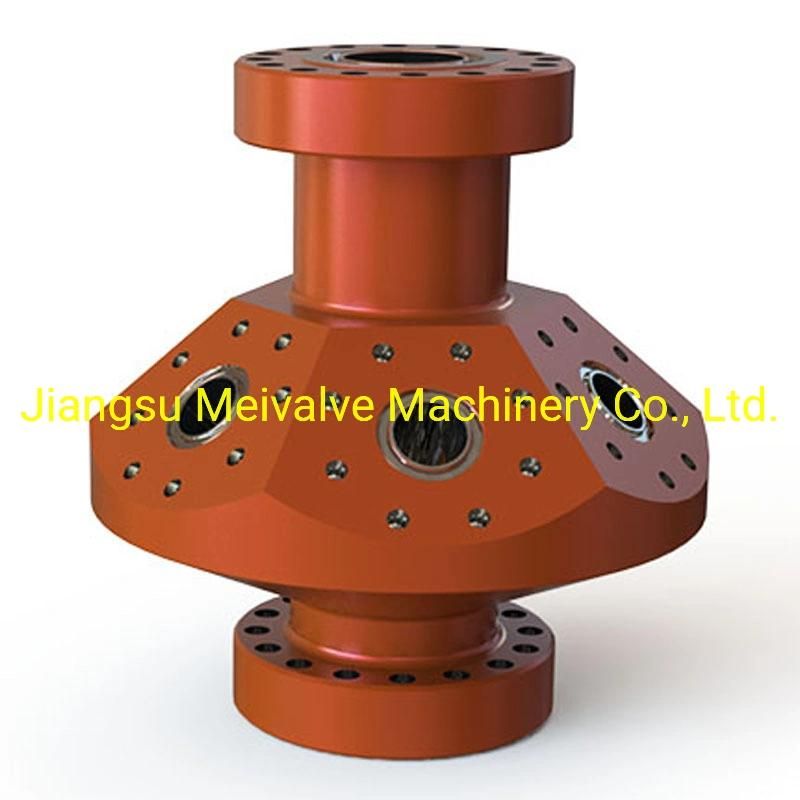

1.Frac Head, also known as Fracturing Head or Goat Head, is the equipment often be used on Frac Tree and Frac Stack during fracturing operation. It is designed to provide systematic and safe fluid flow while pumping high volumes at extreme pressures during frac completions. The frac head diminishes the risks normally associated with using substandard equipment.

2.Fracturing head is available in various wellhead connection sizes and two pressure ranges with 2-in, 3-in, or 4-in 1502 frac inlets and constructed with 15,000 psi or 10,000 psi working pressure flanges.We can provide customized frac head depending on customers requirements.

3.Frac Head usually comes in studded and flange-end connections types. Aside from flanged style frac head, we can also produce threaded type and "Inlet" type frac head. Available with various sizes and inlets used to tie multiple frac lines into the frac tree, we can also design and produce many types of frac heads according to customers' specific requirements.

Product Name: Frac Head, Fracturing Head, Goat Head

Main Bore Size: 4-1/16", 5-1/8", 7-1/16"

Outlet Size: 3-1/16", 4-1/16"

Number of Outlets: 4, 6

Outlet Angles: 45 degree or 60 degree

Standards: API Spec 6A, NACE MR0175, CE etc

Working Pressure: 5000PSI/5M, 10000 PSI/10M, 15000 PSI/15M

Material Class: DD, EE, FF

Temp Class: L, P, R, S, T, U, V

Performance Requirement: PR1, PR2

Product Specification Level: PSL1, PSL2, PSL3, PSL4

Application: Frac Tree, Frac Wellhead Assembly

Paint Color: Red or Customized
