• Model NO.：TPD600
• Engine：Explosion- Proof
• Electric Part：Explosion-Proof
• Density Control：Auto
• Pump：Single Plunger Pump
• Transport Package：Export Standard
• Specification：customized
• Trademark：SERVA
• Origin：China
• HS Code：8430412200
• Production Capacity：1000 Units Per Year

Basic Info.

Model NO. TPD600 Engine Explosion- Proof Electric Part Explosion-Proof Density Control Auto Pump Single Plunger Pump Transport Package Export Standard Specification customized Trademark SERVA Origin China HS Code 8430412200 Production Capacity 1000 Units Per Year

Product Description

CENTRIFUGAL PUMP/PLUNGER PUMP
As a famous petroleum equipment supplier, SERVA developsthe technology of not only the equipment but also the plunger pump.
Now SJS can product four type of the plunger pump, which are the mainstream pump in the cementing, fracture, sanding, & acid well service.
SJS pump is a famous pump, which the performance and the quality is in the highest flight in the world and almost same as Hallibur­ton, SPM, GD.
SJS can product 400 sets plunger pump per one year. And most of them is used in overseas.
SJS is a main manufacture base in the world.

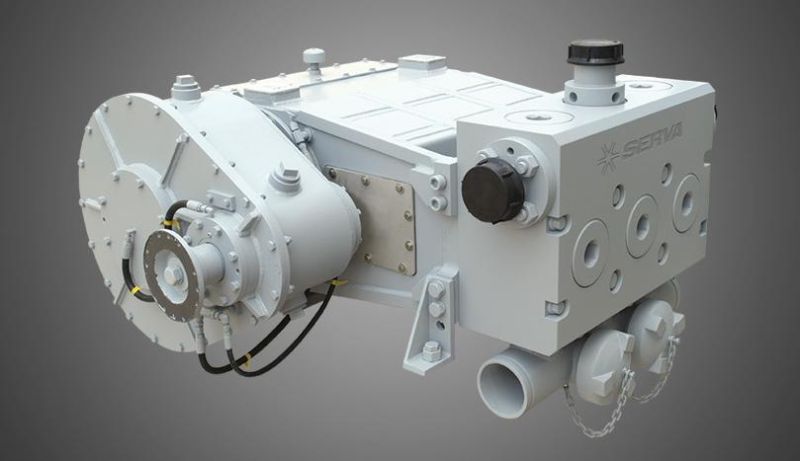

SERVA TPD 600 triplex plunger pump is used for cementing and acidizing service. Its short length design allows back-to-back placement of two pumps on the unit with less than 102" total width.

Heavy-duty crankshaft construction
Wider heavy-duty main bearing
Proprietary crosshead coating
Left or right gear box mounting
Forged alloy steel or UltraLast ® stainless steel mono-block fluid end with removeable stuffing box
Left or right suction and discharge connections
High performance header-ring style packing

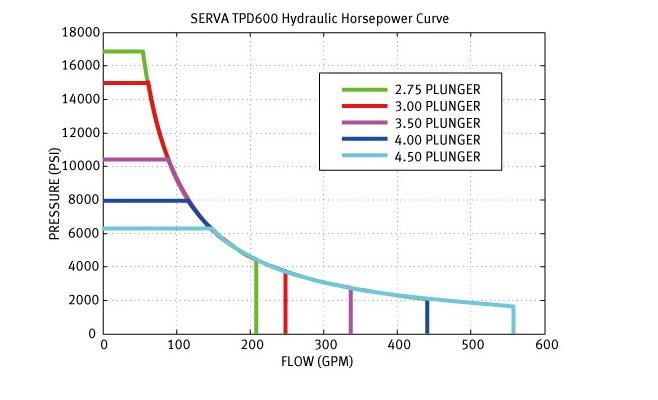

Maximum input horsepower	600 BHP
Maximum rod load.	100,000 lbs
Stroke length	6"
Gear ratio	4.6:1
Plunger	3" to 4.5"
Approx. length	50.25" (1,276 mm)
Approx. width	52.93" (1,344 mm)
Approx. height	23.88" (607 mm)
Approx. weight, dry	4,600 lbs
