API 3nb-500 Triplex Mud Pump for Oilfield Drilling/Drilling Pump
Shandong Light Fir Machinery Equipment Co., Ltd.- After-sales Service：7X24
- Warranty：24 Months
- Certification：ISO 9001:2008, API 7K
- Power Source：Diesel
- Operation Pressure：Atmospheric Pressure
- Material：Steel
Base Info
- Model NO.：3NB-500
- Type：Drilling Fluid Shale Shaker
- Shipment：by Sea
- Transport Package：Standard Export Package
- Specification：560X350X350 cm
- Trademark：LFM
- Origin：China
- Production Capacity：1000
Description
Product Description
3NB-500 Mud Pump is horizontal triplex single acting piston pump which is suitable to oil, water well, geothermy, CBM, shale gas, coalfield exploration, freezing well as well as well other drilling ,well cementation, workover and other operations in industrial and mining enterprises. It is used for transferring mud, clay gum, mortar and other medium to the borehole. The pump adopts international advanced technology. It is characterized by advanced structure, reliable operation, good suction performance, long service life of wearing parts, easy for maintenance and repairing and so on.| Type | 3NB-500 |
| Rated power (hp/kw) | 500/373 |
| Rated speed(SPM) | 130 |
| Stoke length(mm) | 180 |
| Gear ratio | 4.696 |
| Inlet Dia (mm) | 203 |
| Output Dia(mm) | 83 |
| Liner (mm) | Ф110 - Ф170 |
| Rated pressure (Mpa) | 12-30 |
| Rated flow(L/S) | 26.5-11.2 |
| Overall dimensions (mm) | 3600×2230×2080 |

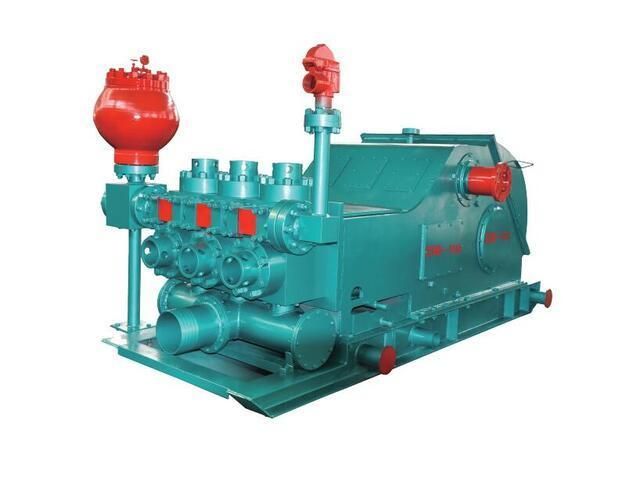

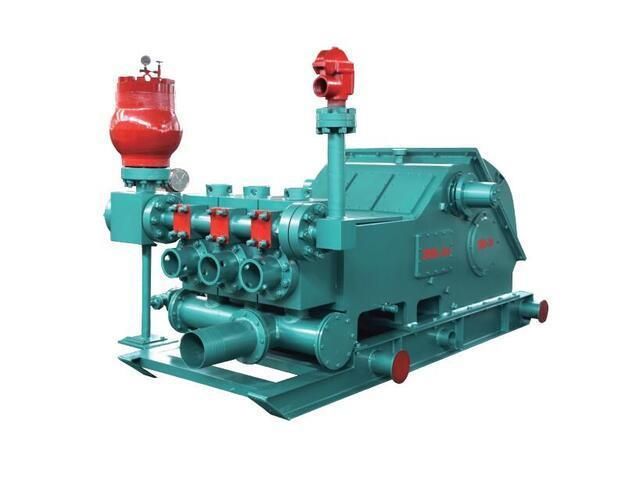

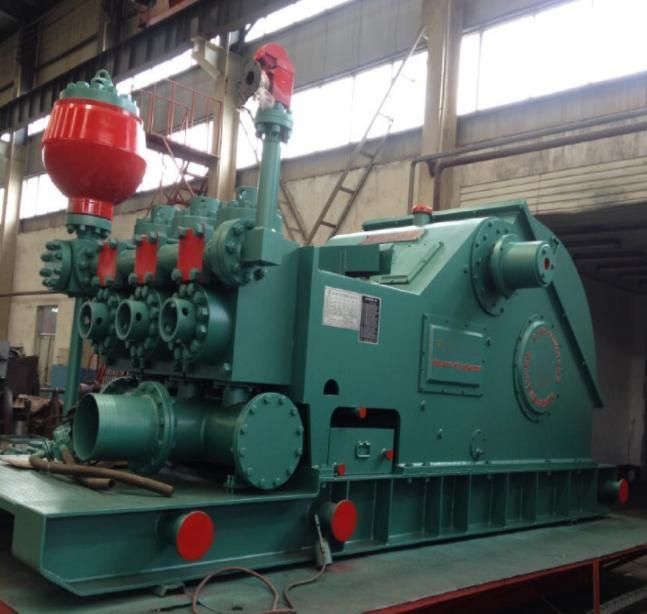

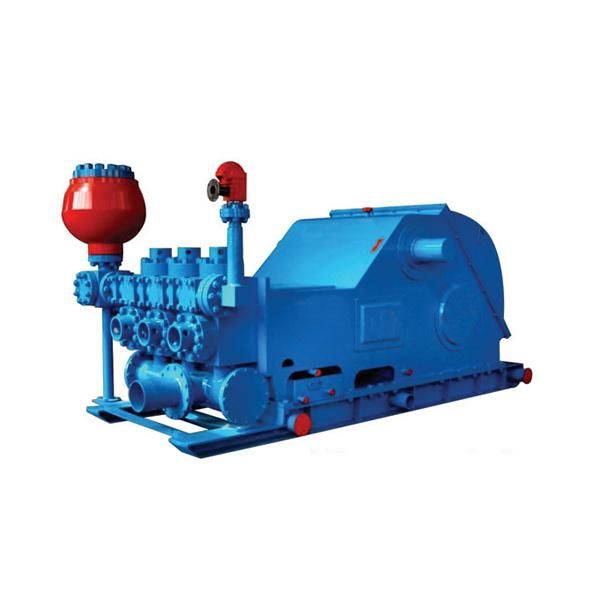

Product Photos

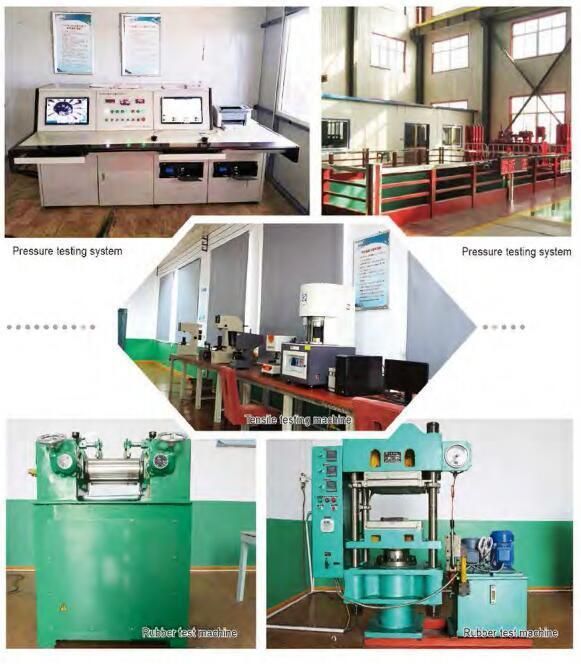

Factory
Certificates
