Tmh3.2 Piston Air Motor for Atlas Cm351 Drill
Yantai Petroleum Machinery Co., Ltd.- Brand Name：Da Li
- Model Number：Tmh3.2
- Certifications：API,CCS,ISO9001-2008
- Colour：as Customers′ Need
- Transport Package：Iron Boxes or Hard Wooden Cases
- Specification：API,CCS,ISO,CE certifications
Base Info
- Model NO.：TMH3.2
- Trademark：DA LI
- Origin：Yantai City, Shandong Province, China
- Production Capacity：1000sets Per Month
Description
Basic Info.
Model NO. TMH3.2 Trademark DA LI Origin Yantai City, Shandong Province, China Production Capacity 1000sets Per MonthProduct Description

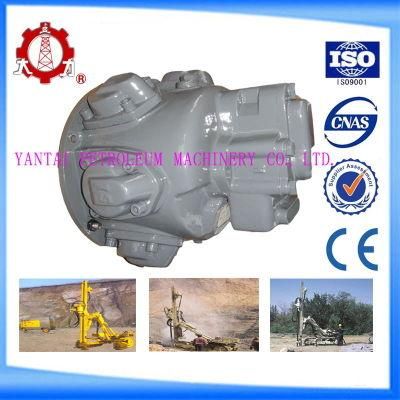

TMH3.2A piston air motor
Working Principle
TMH3.2A piston air motor is operated on the basis of the following principles. After entering into the air distribution system(valve core and valve sleeve), the compressed air is accordingly delivered into cylinders, expanding to push the piston reciprocating; The pistons then drive the shaft and crank journal reciprocating and finally output driving power.
Application places:
Widely used in mining machines for drilling and loading, and also driving machine for oilfields, chemicals, constructions, engineering sites etc. We use this motor as the driving part for carry reducer in CM351 Crawler Drill.
Main Features:
1. With anti-load function and step less speed control.
2. Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.
3. Concise structure, compact in size and light in weight, easy to operate and convenient to maintain.
Technical Parameter:
| Working Pressure (MPa) | No-load Speed (r/min) | Rated Speed (r/min) | Rated Power (kW) | Air Consumption (L/s) |
| 0.4 | 2170 | 1040 | 2.2 | 53.3 |
| 0.5 | 2370 | 1140 | 3 | 67 |
| 0.63 | 2500 | 1200 | 4 | 82 |
| 0.7 | 2600 | 1250 | 4.8 | 94.3 |
