Tubing Hanger Used to Suspend The Tubing
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.- After-sales Service:Yes
- Warranty:1 Year
- Certification:CE, ISO 9001:2000, ISO 9001:2008
- Flange Size:7 1,16"
- Working Pressure:5000 Psi
- Tube Size:2 3,8"
Base Info
- Model NO.:TC1A-EN
- Transport Package:Wooden Case
- Specification:TC1A-EN
- Trademark:TR Solids Control
- Origin:Xi′an, China
- HS Code:84748090
- Production Capacity:100PCS,Month
Description
Basic Info.
Model NO. TC1A-EN Transport Package Wooden Case Specification TC1A-EN Trademark TR Solids Control Origin Xi′an, China HS Code 84748090 Production Capacity 100PCS/MonthProduct Description
Tubing Hanger
Tubing Hanger is a product that is housed in the tubing head, used to
suspend the tubing. These loadbearing devices are installed in the top
bowl of the tubing head. All CEPAI OE's tubing hangers are of economical design, sinple and easy to install onsite.

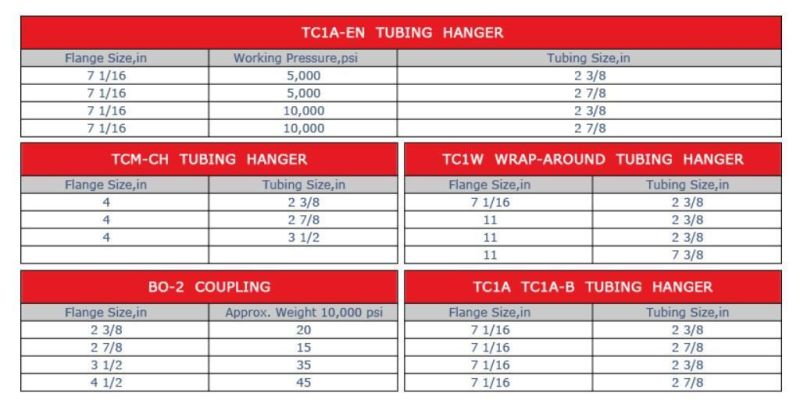

TC1A-EN Tubing Hanger
*Threaded mandrel type hanger
*Internal type "H" BPV preparation
*Reliable compression seal actuated by lockdown screws, controls annulus pressure during Christmas Tree installation
TCM-CH Tubing Hanger
*Threaded mandreal type hanger with control line
*Internal type "H" BPV preparation
*Reliable compression seal actuated by lockdown screws, controls annulus pressure during Christmas Tree installation
TC-1W Wrap-Around Tubing Hanger
*A slick-joint, wrap-around type packoff
*Used with BO-2 coupling and BO-2 adapter bonnet
*Compression seal actuated by tubing weight to control annulus pressure
BO-2 Coupling
*Used in conjunction with the BO-2 tubing head adapter and the TC-1W tubing hanger
*One piece and externally threaded with an ACME thread
*Provides internal top and bottom threads
*Used for completions that require string manipulation
TC-1A, TC1A-B Tubing Hanger
*Threaded mandrel-type
*Reliable compression seal actuated by lockdown screws, controls annulus pressure during Christmas Tree installation
